Запчасти Case 821B (5-04) - STEERING CONTROL VALVE ASSEMBLY - L129608 (05) - STEERING

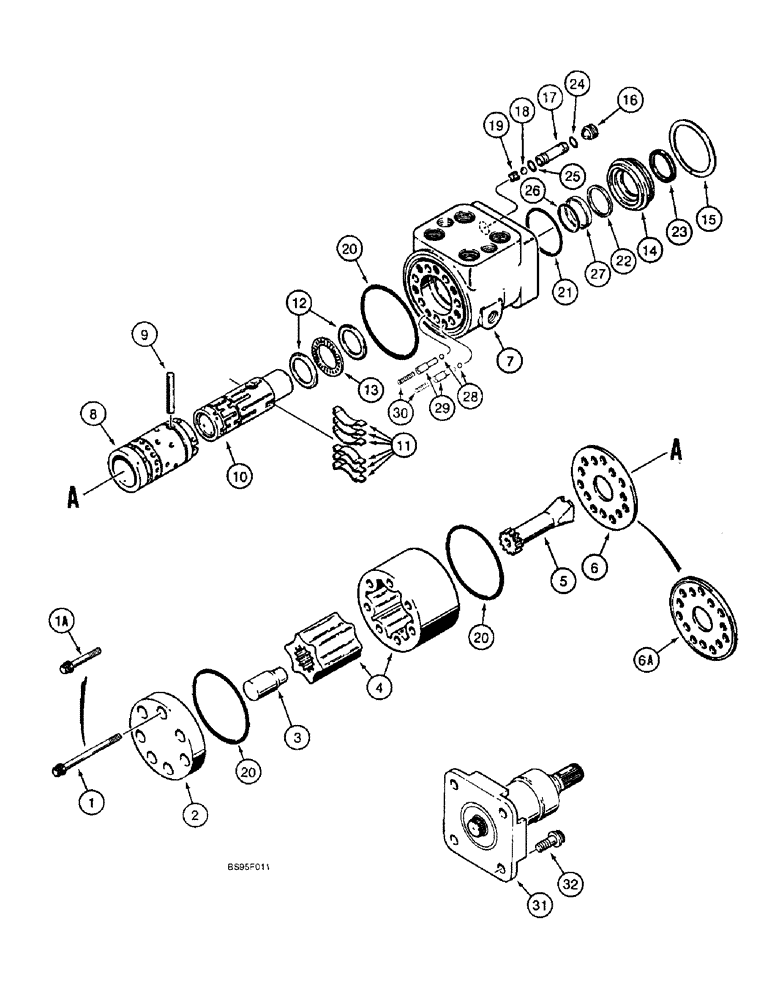

Схема запчастей Case 821B - (5-04) - STEERING CONTROL VALVE ASSEMBLY - L129608 (05) - STEERING
22
25
32
8
6
26
13
29
18
9
31
30
2
12
10
16
15
7
24
1a
3
1
28
20
5
4
17
20
27
19
20
6a
21
14
23

Артикул

Название

Примечание

Количество

L129608

VALVE

ASSEMBLY - control, steering, with internal relief, includes column, 266-3003-001 stamped on name plate, includes: Ref. 1 - 19

1шт.

S301817

VALVE

ASSEMBLY - steering control, without column, with internal relief, includes: Ref. 1 - 19

1шт.

1

S300934

SCREW

BOLT - end cover, special, used with Ref, 2 and 6, if used

7шт.

1a

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

BOLT - 12 point flange, special, 5/16 NF x 1-3/4 inch, grade 8, used with Ref. 2A and 6A

7шт.

Part of KIT, P/N 136493A1

1шт.

2

D82809

COVER

CAP - end, see below, with O-ring, uses Ref. 20, N6392 O-ring, shown in Fig. 5-5C, upon depletion of D82809 stock, order 13649A1 repair kit

1шт.

2a

135867A1

CAP

- end, without O-ring groove, 3/8 inch thick, uses Ref. 20, 238-6040 O-ring, shown in Fig. 5-5C, in the gerotor O-ring groove

1шт.

Part of KIT, P/N 136493A1

1шт.

3

S300936

SPACER

- drive shaft

1шт.

4

S300935

ROTOR

GEROTOR - set, valve

1шт.

5

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, valve

1шт.

6

S113037

PLATE

- spacer, see below, without O-ring groove, uses Ref. 20, N6392 O-ring, shown in Fig. 5-5C, in the gerotor O-ring groove upon depletion of S113037 stock, order 13649A1 repair kit

1шт.

6a

135869A1

PLATE

- spacer, with O-ring groove (install with groove facing gerotor), uses Ref. 20, 238-6040 O-ring, shown in Fig. 5-5C

1шт.

Part of KIT, P/N 136493A1

1шт.

S301819

VALVE

CONTROL ASSEMBLY - valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

9

L30888

PIN

- roll

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

S301820

SPRING

- spool

6шт.

12

D82804

RACE

- thrust, bearing, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller

1шт.

14

N13312

CYLINDER END CAP

BUSHING - spool

1шт.

15

S110169

WASHER

RING - retaining, bushing

1шт.

16

D82805

SET SCREW

SCREW - set

1шт.

17

D82806

VALVE SEAT

SEAT - ball

1шт.

18

211-1010

BALL,5/16" OD

- 5/16, grade 24, CRS

1шт.

19

L35368

RETAINER

- check ball

1шт.

136493A1

COVER

KIT repair, end cap and space plate, Includes Ref. 1A, 2A and 6A, use with 238-6040 O-rings, Ref. 20 shown on Fig. 5-5C, includes: Ref. 20 - 32

1шт.

When the end cap repair kit is installed, "flip" outer gerotor ring, Ref. 4 and reinstall it so that the O-ring groove faces the end cap. Ref. item 29, (2) N14764 plugs, should be replaced at the same time.

1шт.

L129608

VALVE

ASSEMBLY - control, steering, continued from previous figure, includes: Ref. 20 - 32

1шт.

S301817

VALVE

ASSEMBLY - steering control, without column, with internal relief, continued from previous figure, includes: Ref. 20 - 32

1шт.

S301023

SEAL KIT

KIT - seal, no longer available, order 1343658C3 shown in Fig. 5-5C, includes: Ref. 20 - 27

1шт.

20

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- used with D82809 cap and S113037 plate

3шт.

21

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Body -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

22

50-2703T1

BACK-UP RING

RING - backup, seal

1шт.

23

697494R91

OIL SEAL

SEAL - 1 inch ID

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

- 7/16 ID x 5/16 x 1/16 inch

1шт.

26

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Spool, inner -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

27

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon, inner

1шт.

28

D144285

BALL

- anticavitation

2шт.

29

N14764

PLUG

- retainer, anticavitation

2шт.

30

N14763

SPRING

- anticavitation

2шт.

31

S301818

CAP

COLUMN ASSEMBLY - individual components are not serviced separately

1шт.

32

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

BOLT - 12 point flange, 3/8 NC x 3/4 inch, grade 8

2шт.
