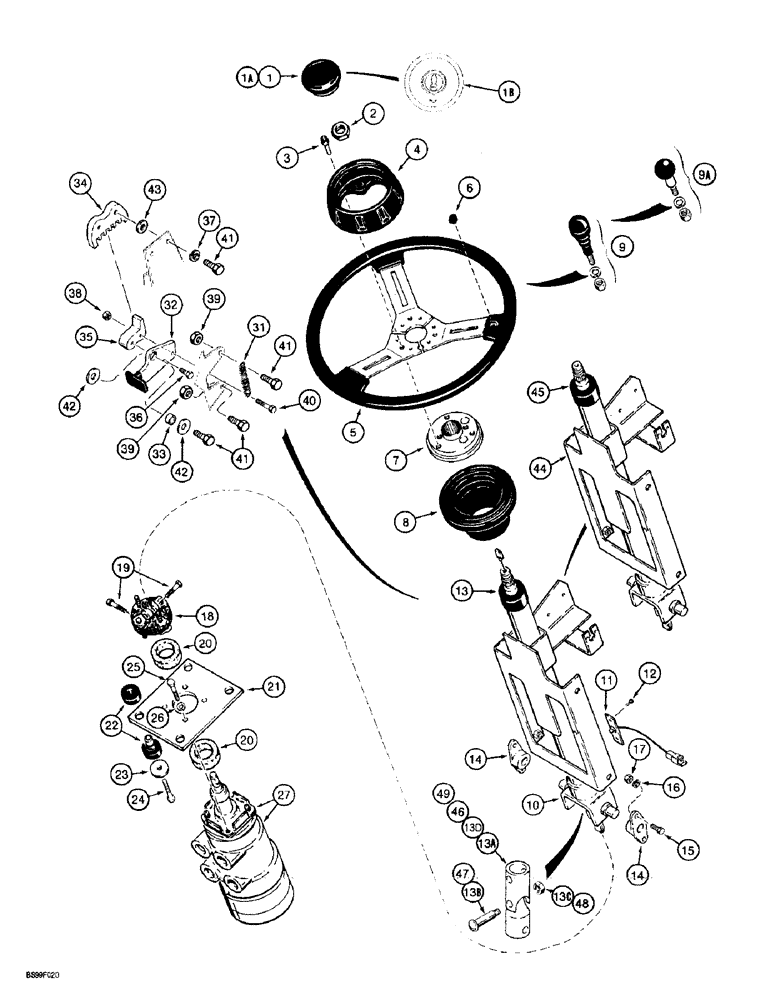

Запчасти Case 821B (5-02) - STEERING WHEEL AND COLUMN, INCLUDES TILT LATCH (05) - STEERING

1

1339877C2

BUTTON

- horn, see below, used with 1344401C4, includes: Ref. 1B, Serial Range: -JEE0042075

1шт.

1a

195277A1

PLUG

CAP ASSEMBLY - center, steering wheel, steering wheel, used with 195273A1, shown in Fig. 5 - 2, includes: Ref. 1B, Start Serial: JEE0042075

1шт.

1b

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, steering wheel retaining

1шт.

L128095

WHEEL (STEERING)

WHEEL ASSEMBLY - steering, includes: Ref. 3 - 8

1шт.

3

S301434

SCREW

- special

3шт.

4

S301399

CAP

- steering wheel

1шт.

5

D147465

STEERING WHEEL

WHEEL steering, not serviced separately, for service order D148204 steering wheel, shown below, or L128095 steering wheel assembly

1шт.

Refs. 47 and 48 are also used for service to replace the rivet in the steering column U-joint used on some models.

1шт.

6

S301435

PLUG

- steering wheel, remove to use spinner knob

1шт.

7

S301401

HUB

- steering wheel

1шт.

8

S301400

BOOT

- steering wheel

1шт.

9

L127996

KNOB

- spinner, steering wheel, no longer available, order Ref. 9A, 97400C1, if used

1шт.

9a

97400C1

HANDLE

KNOB - spinner, steering wheel, if used

1шт.

1344401C4

STEERING COLUMN

COLUMN ASSEMBLY - steering, see below, with brush and horn wires, if used, includes: Ref. 10 - 13C, Serial Range: -JEE0042075

1шт.

P/N 1344401C4 steering column now subs to P/N 195273 column. The new column does not have provisions in it for the horn like the old did. Under the new setup, the horn switch is integrated into the turn signal 1987555C1 shown on Figure 4-15A. The dealer could order the 1987555C1 to change to new style. They advise you could run the turn signal wires off the switch to the old pedastal harness, For the horn they would have to get some additional length of wire and run between the horn and the horn wires comin

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN - steering

1шт.

11

1987236C1

BRUSH ASSY.

BRUSH - horn, see below, no longer available, order kit 292150A1

1шт.

Part of KIT, P/N 292150A1

1шт.

12

261-5454

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/4 inch

2шт.

13

A49647

CAP

COVER - column, top

1шт.

13a

194040A1

UNIVERSAL JOINT

JOINT ASSEMBLY - universal steering column

1шт.

13b

L128176

STEP BOLT

BOLT - shoulder, special, see note

1шт.

Refs. 13B and 13C are also used for service to replace the rivet in the steering column U-joint used on some models.

1шт.

13c

L128177

LOCK NUT

- self-locking, special, see note

1шт.

Refs. 13B and 13C are also used for service to replace the rivet in the steering column U-joint used on some models.

1шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot

2шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

L100096

ISOLATOR

COUPLING - isolator

1шт.

19

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Hex, 3/8"-24 x 1 1/4", G5, Full Thd

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- floor plate and steering control valve

2шт.

21

1344479C1

LARGE PLATE

PLATE - floor, steering alignment

1шт.

22

A141515

ISOLATOR

MOUNT - two piece, includes both halves

4шт.

23

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

- flat, 7/16 x 1-1/4 x 1/16 inch

4шт.

24

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

25

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

D148204

WHEEL (STEERING)

WHEEL steering, also includes spacer ring, steering wheel hub, (3) socket head capscrews, and (3) lockwashers, 16 inch, 3 spoke, also includes spacer ring, steering wheel hub, (3) screws, and (3) washers, 16 inch, 3 spoke, not shown

1шт.

292150A1

BRACKET

KIT, brush and bracket assembly, includes: Ref. 11

1шт.

27

L129608

VALVE

ASSEMBLY - control, steering, stamped 266-3003-001 on name plate, parts list Fig. 5-4 and 5-5C, no longer available, order 135605A1 valve assembly

1шт.

27

135605A1

VALVE, CONTROL

VALVE ASSEMBLY - steering control, stamped 266-3003-002 on name plate, parts list Fig. 5-5 C

1шт.

31

A163012

SPRING

- tilt latch

1шт.

32

1990517C1

LEVER

- tilt latch

1шт.

33

1990519C1

SPACER

BUSHING - lever

1шт.

34

1969906C3

LATCH ASSY.

RACK - tilt latch

1шт.

35

1969903C4

LATCH ASSY.

LATCH - tooth

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

39

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

40

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

1шт.

41

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

5шт.

42

496-81024

WASHER,0.41" ID x 1.25" OD x 0.07" Thk

- flat, 13/32 x 1-1/4 x 1/16 inch, hardened

2шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

195273A1

STEERING COLUMN

COLUMN ASSEMBLY - steering, without brush and horn wires, Start Serial: JEE0042075

1шт.

44

NSS

NOT SOLD SEPARAT

COLUMN - steering, order 195273A1

1шт.

45

A49647

CAP

COVER - column

1шт.

46

194040A1

UNIVERSAL JOINT

JOINT ASSEMBLY - universal, steering column, no longer available, order A63689 joint assembly, includes: Ref. 47 - 48

1шт.

47

L128176

STEP BOLT

BOLT - shoulder, special

1шт.

Refs. 47 and 48 are also used for service to replace the rivet in the steering column U-joint used on some models.

1шт.

48

L128177

LOCK NUT

- self-locking, special

1шт.

Refs. 47 and 48 are also used for service to replace the rivet in the steering column U-joint used on some models.

1шт.

49

A63689

JOINT

ASSEMBLY - universal, steering column

1шт.
