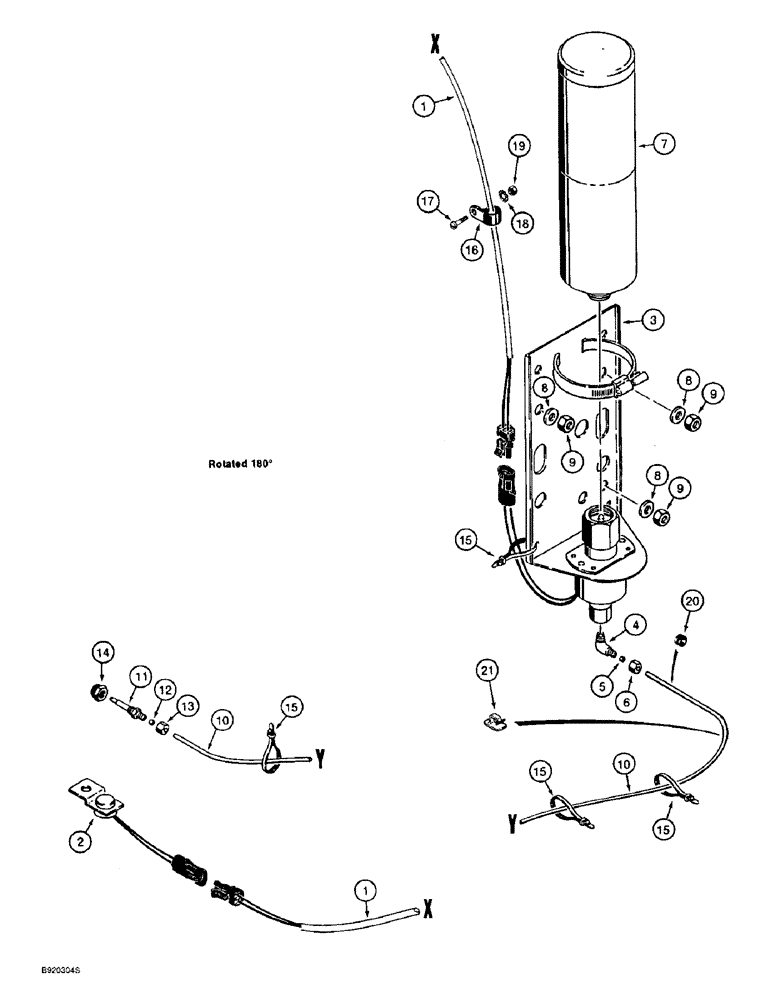

Запчасти Case 821B (4-58) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HARNESS - rear, see Fig. 4-28 through 4-33A and 4-44
1шт.
2
L126191
THERMOSTATIC SWITCH
THERMOCOUPLE - circuit breaking, includes lead wires, use existing engine hardware
1шт.
L126198
VALVE
ASSEMBLY - solenoid, includes: Ref. 3
1шт.
3
NSS
NOT SOLD SEPARAT
VALVE - component parts not serviced separately
1шт.
222-615
ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp
1/8 tube OD, Incl. Ref 4 - 6 90º, 5/16"-24 x 1/8" NPT, Comp
1шт.
4
NSS
NOT SOLD SEPARAT
BODY - elbow
1шт.
5
222-650
SLEEVE,1/8" Tube, Comp
Tapered 1/8" Tube, Comp
1шт.
6
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
1/8" tube OD 5/16"-24, 45º Fl, Comp
1шт.
7
A171940
CYLINDER
- starting fluid
1шт.
8
S95569
WASHER
- flat, special, 1/2 inch
3шт.
9
231-1406
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8 inch NC
3шт.
10
L126227
TUBE,0.125" OD x 84" L
- 2134 mm (84 inch) long, cut from L60539X bulk tube, see below
1шт.
See Fig. 9-100 for cold start decal.
1шт.
A172900
NOZZLE CAP
NOZZLE ASSEMBLY - atomizer, includes: Ref. 11 - 13
1шт.
11
NSS
NOT SOLD SEPARAT
BODY - nozzle
1шт.
12
222-650
SLEEVE,1/8" Tube, Comp
Tapered 1/8" Tube, Comp
1шт.
13
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
1/8" tube OD 5/16"-24, 45º Fl, Comp
1шт.
14
217-1034
REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF
1шт.
15
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
16
515-2179
CLAMP,5/16", Insul, 1/4" Bolt
P-type, Replaces A62209 5/16", Insul, 1/4" Bolt
1шт.
17
470-11012
SCREW,Pan HD, #10 - 24 x 3/4"
- machine, pan head slotted, No. 10 NC x 3/4
1шт.
18
493-11020
LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk
WASHER, LOCK, (3/16") Ext-Int Tooth, #10
1шт.
19
225-14110
NUT,#10-24
1шт.
20
L77834
GROMMET
- rubber
1шт.
21
L100659
CLIP
- adhesive backed
1шт.
L60539X
TUBE
- bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long
1шт.
See Fig. 9-100 for cold start decal.
1шт.
Выбрано товаров: 27
