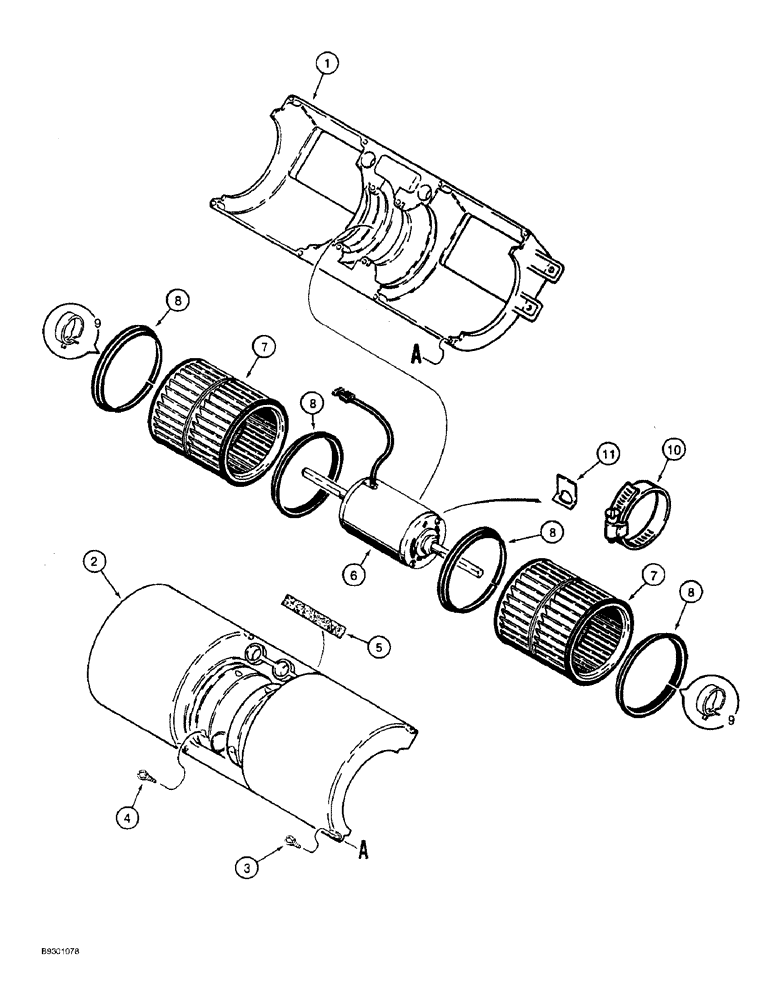

Запчасти Case 821B (4-56) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

1

F64740

HOUSING

- fan, lower, lower

1шт.

2

F64741

HOUSING

- fan, upper, upper

1шт.

3

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, pan head Phillips, No. 8-16 x 3/4 inch

8шт.

4

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - self-tapping pan head, Phillips, No. 8-16 x 1 inch

4шт.

5

REF

INSTRUCTION

SEAL - foam, 102 mm (4 inch) long, cut from F64119 bulk, see below, upper fan housing

1шт.

6

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal and resistor mounted to Ref. 13, plenum duct, shown in Figure 9-76

1шт.

6

370512A1R

REMAN-ELECTRIC MOTOR

821B, Reman For New P/N 1546448C1

1шт.

6

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

7

F64935

BLOWER,Fan

FAN - blower

2шт.

8

F64739

RING

- plastic, fan retaining

4шт.

9

F64936

CLAMP

- steel spring

2шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

1шт.

11

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

F64119X

GASKET

STRIP - foam, bulk, 1.5 (1/16) x 13 (1/2) x 30480 mm (1200 inch)

1шт.
