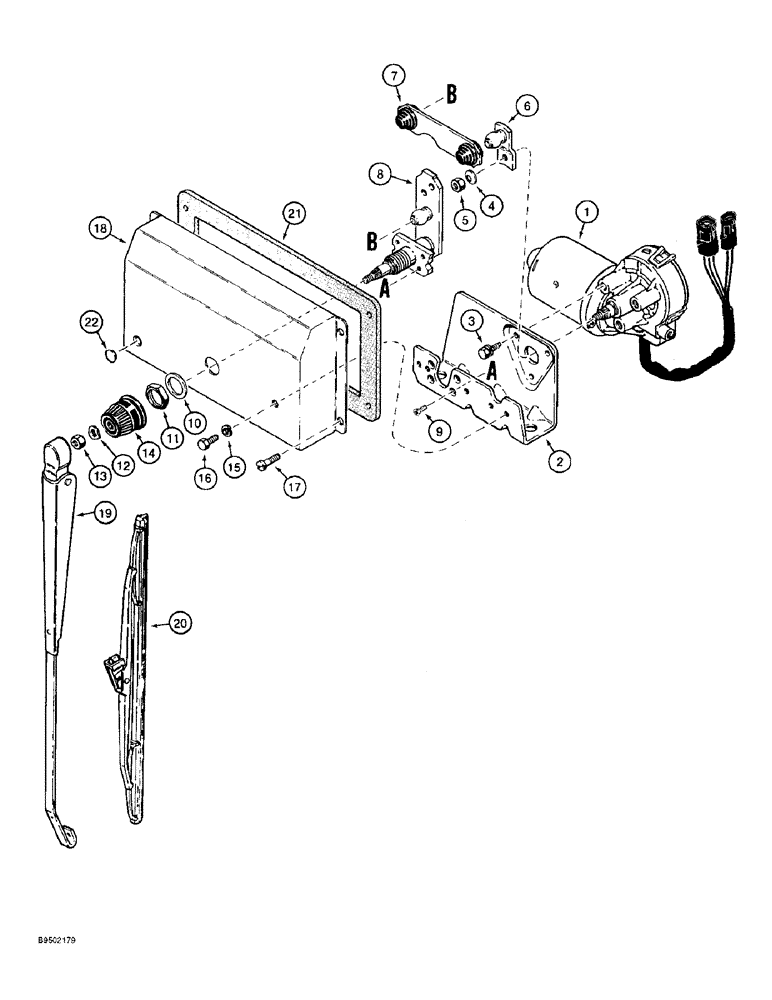

Запчасти Case 821B (4-54) - CAB REAR WIPER (04) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper with bracket, 24 volt, includes: Ref. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR - windshield wiper, 24 volt

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW - with washer, special

3шт.

4

N8361

SPRING WASHER

- Belleville, retaining

1шт.

5

L112090

NUT

- hex, special, 8 mm, retaining

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N8358

LINK

LINK - wiper

1шт.

8

N14112

SHAFT

- pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special

4шт.

10

L112088

WASHER

- special, shaft

1шт.

11

L112087

NUT

- special, shaft

1шт.

12

L112089

WASHER

- wave, special

1шт.

13

L112090

NUT

- hex, special, 8 mm

1шт.

14

L112081

CAP

- pivot shaft end

1шт.

15

192-81007

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

17

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

18

1339894C1

COVER

- mounting, rear wiper, tan

1шт.

18

193323A1

COVER

- mounting, rear wiper, gray

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM - windshield wiper, 375 mm (14-3/4 inch) long, complete

1шт.

20

A187909

WIPER BLADE

BLADE - wiper arm, complete, used in production, 500 mm (19-11/16 inch) long, used in production, complete, no longer available, order 132024A1 for complete wiper arm blade, see below for blade refill

1шт.

20

132024A1

WIPER BLADE

BLADE - wiper arm, complete

1шт.

21

1345074C1

GASKET,5mm Thk

- cover, one piece, one piece

1шт.

22

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16 inch, used on 1339894C1 tan cover

1шт.

22

353-403

PLUG,Dome, .437" hole, Nylon

Used on 193323A1 Dome, .437" hole, Nylon

1шт.

1983335C1

WIPER

BLADE - rubber, 500 mm long, replacement A187909 blade refill

1шт.
