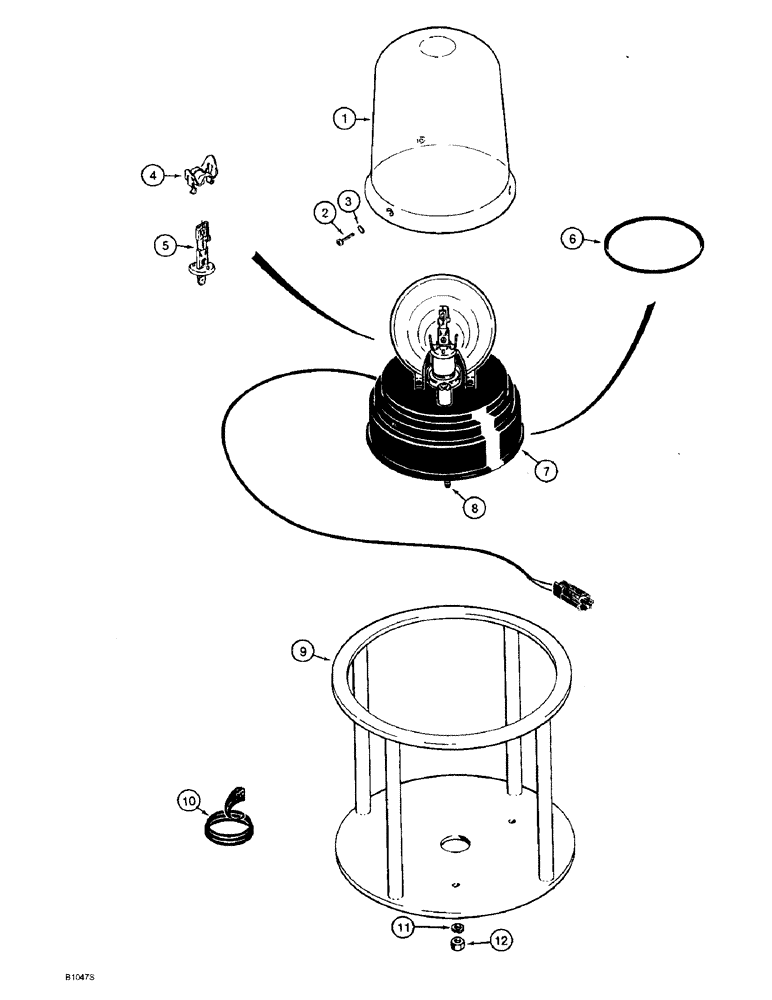

Запчасти Case 821B (4-50) - ROTATING BEACON ASSEMBLY AND MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating, includes: Ref. 1 - 8

1шт.

1

A187542

LENS

- beacon, amber, if used

1шт.

1

127158A1

LENS

- beacon, blue, if used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, round head, No. 8 x 1/2 inch, Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

-005, 70 Duro, .101" ID x .070" Thk

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bulb

1шт.

5

P40533

LAMP

BULB - halogen

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE - with drive motor, rotating beacon

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

L124809

CAGE

- beacon, tan

1шт.

9

193897A1

CAGE

- beacon, gray

1шт.

10

L109042

GASKET

TRIM - edge, 350 mm (13-13/16 inch) long, cut from F42827 bulk trim, see below

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.
