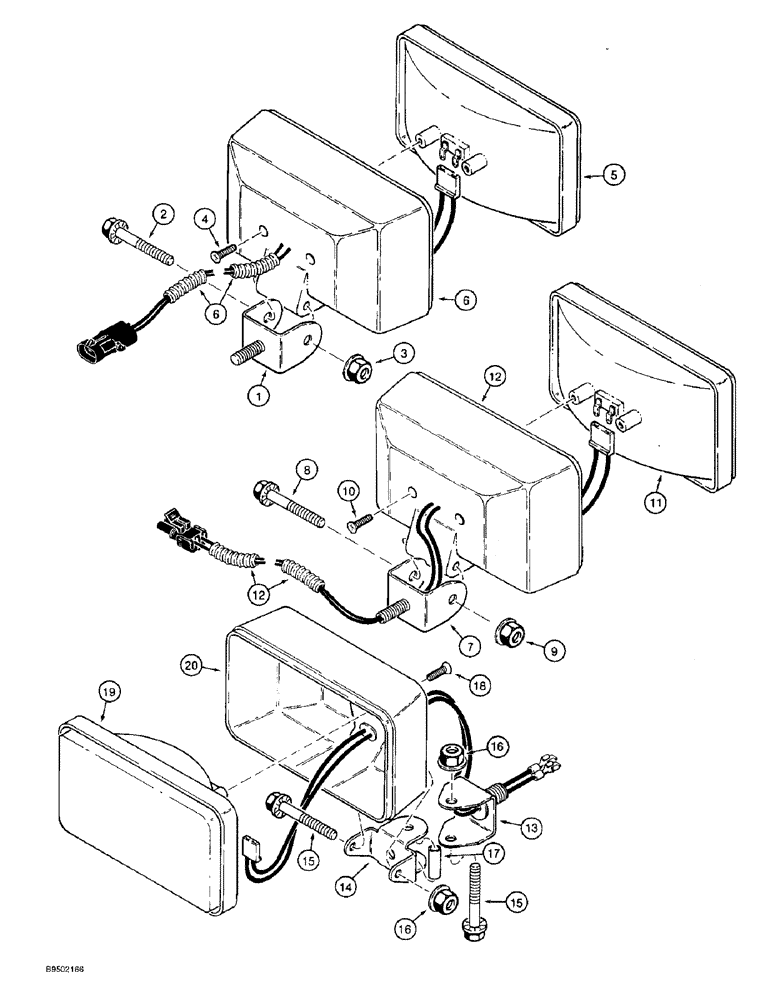

Запчасти Case 821B (4-46) - LAMPS - FRONT AND REAR, FRONT LAMP, FRONT AND REAR FLOOD LAMPS, CAB OR CANOPY FLOOD LAMPS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A187519
LIGHT ASSY.,24V, 70W, Clear
LAMP ASSEMBLY - drive, includes: Ref. 1 - 6
2шт.
1
N8347
SUPPORT
BRACKET - lamp, replaces A187913 bracket
1шт.
2
121-232
SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
3
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
4
273-5048
SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"
SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch
1шт.
5
103654A1
HEADLIGHT,Halogen, 24V, 60W
BULB - sealed beam
1шт.
6
NSS
NOT SOLD SEPARAT
HOUSING - lamp
1шт.
A187520
LIGHT ASSY.,24V, 70W, Clear
LAMP ASSEMBLY - flood, includes: Ref. 7 - 12
4шт.
7
N8347
SUPPORT
BRACKET - lamp, replaces A187913 bracket
1шт.
8
121-232
SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
10
273-5048
SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"
SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch
2шт.
11
103653A1
HEADLIGHT,24V, 60W
BULB - sealed beam
1шт.
12
NSS
NOT SOLD SEPARAT
HOUSING - lamp
1шт.
12a
56698R1
WIRE CONNECTOR
TERMINAL - butt splice, not shown
1шт.
A187541
LIGHT ASSY.,Halogen, 24V, 70W, Clear
LAMP ASSEMBLY - flood, cab or canopy, includes: Ref. 13 - 20
2шт.
13
N8347
SUPPORT
BRACKET - lamp, includes stud, replaces A52216 bracket
1шт.
14
A52215
SUPPORT
BRACKET - mounting, lamp
1шт.
15
121-232
SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
16
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
17
65881H
SPACER,1/4" Pipe x 1 1/4"
- tubular, 1/4 x 1-1/4 inch, replaces A52219 spacer
1шт.
18
273-5048
SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"
SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch
2шт.
19
103653A1
HEADLIGHT,24V, 60W
BULB - sealed beam
1шт.
20
NSS
NOT SOLD SEPARAT
HOUSING - lamp
1шт.
229488A1
HEADLIGHT,24V
1шт.
Выбрано товаров: 25
