(4-44) - REAR LAMP AND BACKUP ALARM MOUNTING

Запчасти Case 821B (4-44) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS

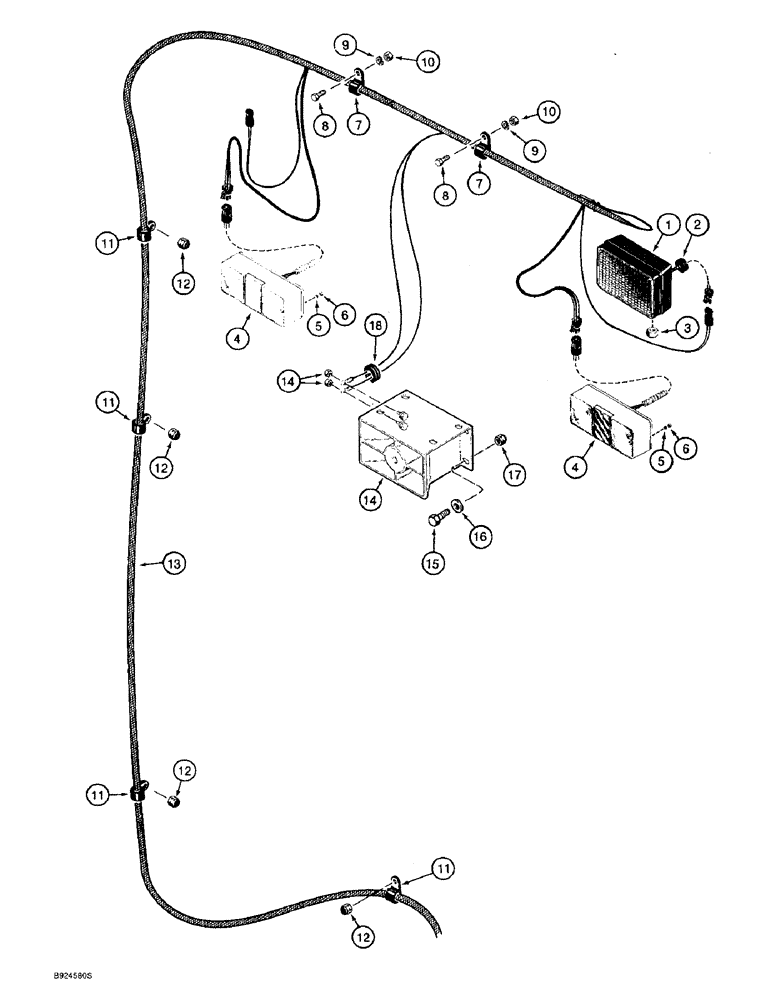

Схема запчастей Case 821B - (4-44) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS
7
10
10
14
6
11
14
17
15
6
3
12
9
5
4
12
11
7
4
18
2
1
16
12
11
9
5
13
12
8
11
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list Fig. 4-46

2шт.

2

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber 3/8" ID x 1" Groove Dia, Str Cut

2шт.

3

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

4

REF

INSTRUCTION

LAMP - stop and tail, left-hand and right-hand, see Fig. 4-48 for correct assembly and components

2шт.

5

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

6

825-1405

NUT,M5, Cl 8

8шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Harness 1/2", Insul, 3/8" Bolt

2шт.

8

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

4шт.

12

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

13

244237A1

HARNESS

- rear, see Fig. 4-28 - 4-33A for correct harness

1шт.

14

D121972

ALARM

- backup, electric, rectangular type, includes nuts

1шт.

15

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

4шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

18

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber 3/8" ID x 1" Groove Dia, Str Cut

1шт.
