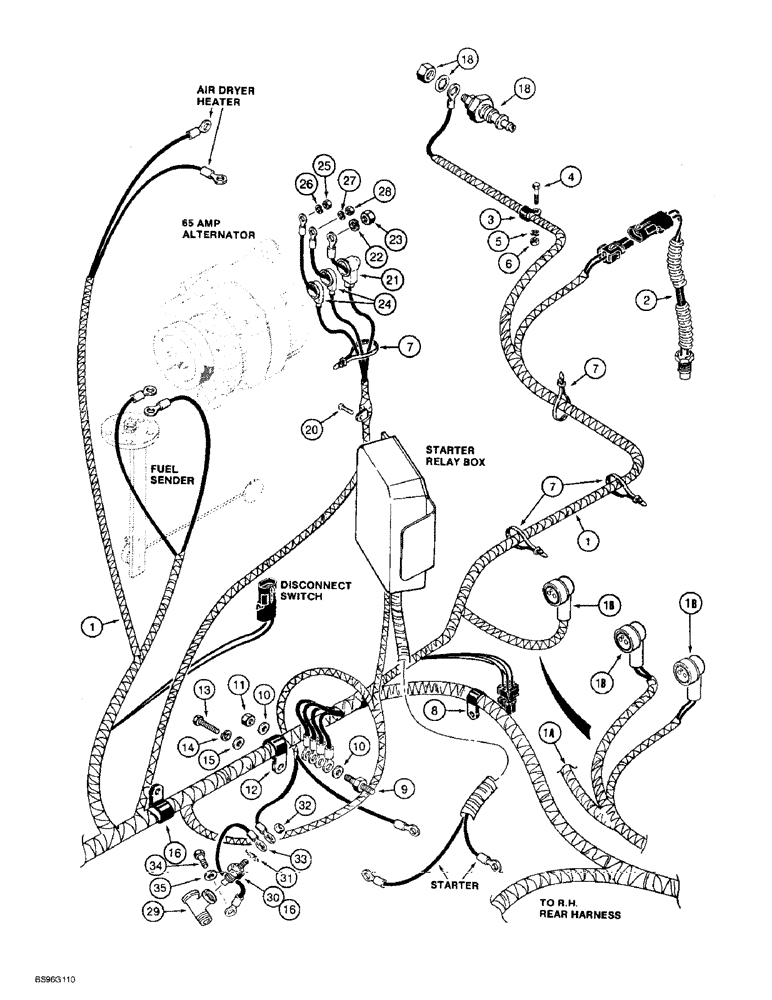

Запчасти Case 721B (4-32) - REAR HARNESS, ENGINE LEFT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

107787A1

HARNESS

- rear, see figures 4-30, 4-34, 4-48, and 4-62 for continuation of harness, Serial Range: -JEE0040040

1шт.

1

130404A1

HARNESS

- rear, see figures 4-30, 4-35A, 4-48, and 4-62 for continuation of the harness, Serial Range: JEE0040040-JEE0042309

1шт.

1

192486A1

HARNESS

- rear, see figures 4-30, 4-35A, 4-48, and 4-62 for continuation of the harness, Serial Range: JEE0042310-JEE0052700

1шт.

1a

244237A1

HARNESS

- rear, see figures 4-31A, 4-35A, 4-48, and 4-62 for continuation of the harness, Includes: Ref. 1B, Start Serial: JEE0052701

1шт.

1b

L129852

CONNECTOR, ELEC

CONNECTOR - speed sensor, included with harness, two on 244237A1 harness, Ref. 1A

1шт.

2

A187530

TEMPERATURE SENDER

SWITCH - hydraulic oil temperature

1шт.

3

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- P-type, 10.3 mm ID, harness, at filter, replaces 49853

1шт.

4

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Included with harness, uses transmission hardware, no longer used, replaces 515-23222 1", Insul, 3/8" Bolt

2шт.

9

L127553

STUD

ADAPTER - stud, engine ground mount

1шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special, 11 x 25 x 2 mm

2шт.

11

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special, 3/8 inch NC

1шт.

12

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type, Part of harness 1", Insul, 1/2" Bolt

1шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Models with standard steering, Uses existing hardware 3/4", Insul, 3/8" Bolt

2шт.

17

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- P-type, 5/8 inch diameter, replaces Ref. 16 above, on models with auxiliary steering, not shown

2шт.

18

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, hydraulic oil, parts list figure 8-8

1шт.

20

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm

1шт.

21

L126713

BOOT

- plastic

1шт.

22

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

23

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

24

S64612

BOOT

- rubber

2шт.

25

825-1404

NUT,M4, Cl 8

1шт.

26

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

27

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

28

825-1405

NUT,M5, Cl 8

1шт.

29

221-1693

TEE,Street, 1/2" NPT

- street, 1/2 inch PT

1шт.

30

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine temperature

1шт.

31

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

1шт.

32

225-20210

NUT,#10-32, Brass

1шт.

33

L129823

ELECTRICAL WIRE

WIRE - ground, with resistor, engine coolant temperature, Serial Range: sender-engine

1шт.

34

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
