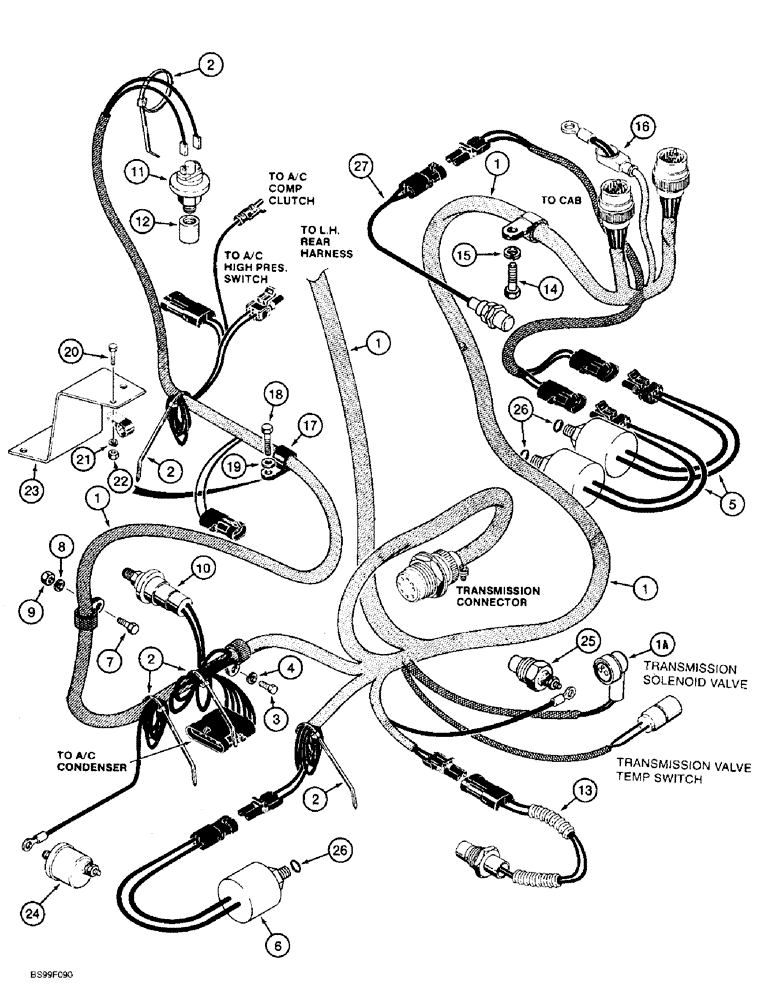

Запчасти Case 721B (4-31A) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, P.I.N. JEE0052701 & AFTER (04) - ELECTRICAL SYSTEMS

1

244237A1

HARNESS

- rear, see figures 4-32, 4-35A, 4-48, and 4-62 for continuation of the harness, Includes: Ref. 1A, Start Serial: JEE0052701

1шт.

1a

244181A1

CONNECTION,ELECTRIC

CONNECTOR - transmission solenoid valve, included with Ref. 1, 244237A1 harness

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

5

L128914

PRESSURE SWITCH

SWITCH - declutch

2шт.

6

L128913

PRESSURE SWITCH

SWITCH - brake pressure

1шт.

7

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

10

A187723

SENDER UNIT

SWITCH - engine oil pressure

1шт.

11

292740A1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner, replaces 1983233C1

1шт.

12

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

13

A187530

TEMPERATURE SENDER

SWITCH - transmission oil temperature

1шт.

14

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

L126713

BOOT

- plastic, harness at floor of operators compartment

1шт.

17

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

P-type, at fuel lines on units without air conditioning using hardware Ref. 18 and 19, at bracket on units with air conditioning using hardware items 20, 21, and 22 1/2", Insul, 1/4" Bolt

1шт.

18

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 Hex Hd, M5 x .8 x 20, w/LW

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Replaces J903723 M5 x 10 x 1

1шт.

20

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

23

L125956

SUPPORT

BRACKET - clamp mounting, units with air conditioning

1шт.

24

L127534

SENDER UNIT

SENDER - engine oil pressure

1шт.

25

L127532

TEMPERATURE SENDER,1/2" - 14

SENDER - temperature, transmission oil

1шт.

27

241956A1

SWITCH

- proximity, auto shift

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
