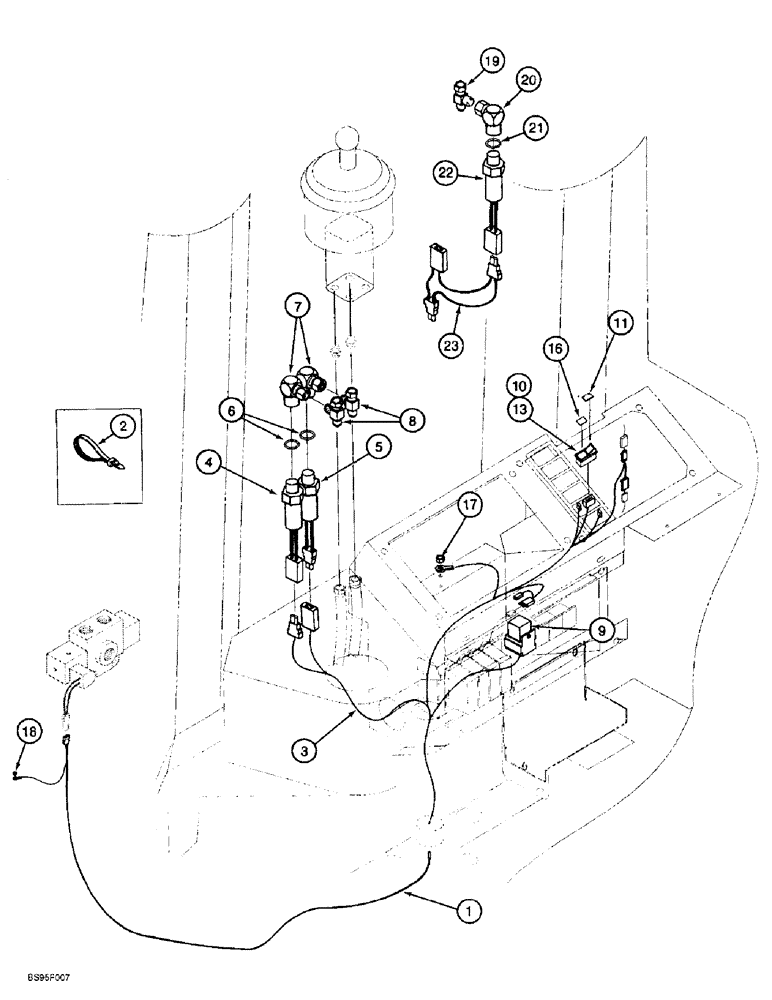

Запчасти Case 721B (4-29A) - RIDE CONTROL HARNESS, ADDITIONAL PARTS FOR MODELS WITH XT (04) - ELECTRICAL SYSTEMS

1

125828A1

ELECTRICAL WIRE

HARNESS - ride control, front, cab floor to master valve solenoid, see figure 8-100

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

130417A1

HARNESS

- ride control, cab, cab

1шт.

4

132905A1

SWITCH

- bucket tilt circuit

1шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller.

1шт.

5

132906A1

SWITCH

- loader lift circuit

1шт.

Ref. 5, lift switch and fittings connect to the connector at "XB" port for both model controllers.

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

- 90 degree, special

2шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller.

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller.

1шт.

9

198161A1

RELAY

- mini, 24 volt, latching, see figure 4-20 (cab) or 4-26 (canopy) for power distribution center, replaces A186288 relay

1шт.

10

1913507C1

SWITCH ASSY

SWITCH - rocker, ride control, see figure 4-8 for instrument panel

1шт.

11

83884C1

SYMBOLS

LENS - green

2шт.

12

191146A1

DECAL

- ride control, not shown, see figure 9-102

1шт.

13

A187870

LAMP

- warning, ride control indicator, see figure 4-8 for instrument panel

1шт.

14

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W, not shown

1шт.

15

191145A1

DECAL

- ride control, on, not shown, see figure 9-1012

1шт.

16

83883C1

SYMBOLS

LENS - black

1шт.

17

1999948C1

FLANGE NUT

- hex flange, special, 5/16 inch

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel, additional parts for models with XT loader only

1шт.

Ref. 22, rollback circuit switch and fittings connect to the connector at "YA" port of either the single lever or double lever remote controllers for models with XT loaders.

1шт.

20

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

- 90 degree, special, additional parts for models with XT loader only

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Additional parts for models with XT loader only

1шт.

22

132905A1

SWITCH

- rollback circuit, additional parts for models with XT loader only

1шт.

Ref. 22, rollback circuit switch and fittings connect to the connector at "YA" port of either the single lever or double lever remote controllers for models with XT loaders.

1шт.

23

183121A1S

HARNESS

- rollback, additional parts for models with XT loader only

1шт.
