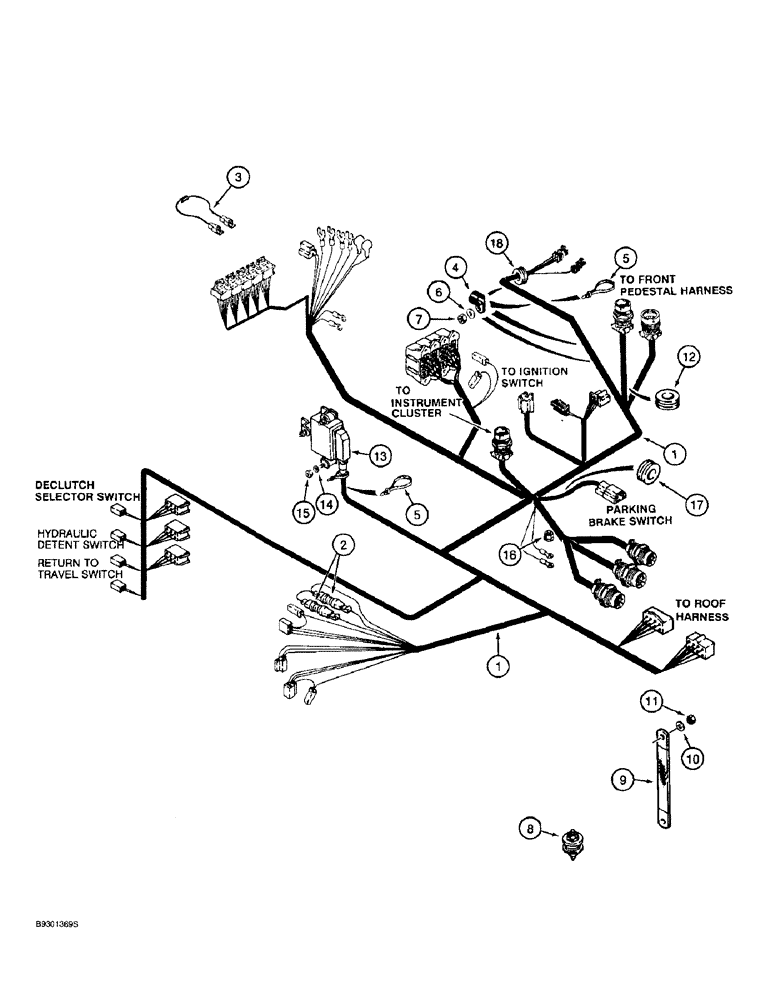

Запчасти Case 721B (4-26) - MAIN CANOPY HARNESS, TRANSMISSION CONTROL (04) - ELECTRICAL SYSTEMS

1

110864A2

HARNESS

- main ROPS canopy, Serial Range: -JEE0052701

1шт.

1

244245A1

HARNESS

- main ROPS canopy, Includes: Ref. 2 and 3, Start Serial: JEE0052701

1шт.

2

113699A1

RECTIFIER

- locking, 2-5/8 inch long

2шт.

3

115448A1

RESISTOR

- low coolant relay, used with 110864A2 harness

1шт.

3

220534A1

ELECTRICAL WIRE

RESISTOR - low coolant relay, used with 244245A1 harness

1шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Two not shown 1", Insul, 3/8" Bolt

4шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

8

A187523

JUNCTION BLOCK

BLOCK - cable junction, includes hardware

1шт.

9

L126051

GROUND STRAP

STRAP - ground

1шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special, 11 x 25 x 2 mm

2шт.

11

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special, 3/8 inch NC

2шт.

12

1970021C1

GROMMET

TRIM - flexible, 324 mm (12-3/4 inch) long, branch to front pedestal harness, if used

1шт.

13

A187988

TESTER

CONTROL - transmission, ZF 6009 036 103, If used

1шт.

See ZF part number stamped on control to determine which part number to order.

1шт.

13

138496A1

TESTER

CONTROL - transmission, ZF 6009 054 065, If used

1шт.

See ZF part number stamped on control to determine which part number to order.

1шт.

13

138496A1R

REMAN ELECT CONTROL

721B, REMAN for Part No. A187988 & 138496A1, N.A. Only

1шт.

13

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

13

248667A1

ECU

- transmission, ZF 6009 047 659, Start Serial: JEE0052701

1шт.

13

248667A1R

REMAN ELECT CONTROL

721B CASE WHEEL LOADER (NORTH AMERICA), transmission, ZF 6009 047 659, Start Serial: JEE0052701 (3/93-12/98)

1шт.

13

248667A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

15

225-14110

NUT,#10-24

3шт.

16

1999948C1

FLANGE NUT

- hex flange, special, 5/16 inch, mounts ground wires to canopy frame

1шт.

17

1973557C1

GROMMET

- rubber, seat platform on left-hand side to parking brake switch

1шт.

18

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

- rubber, wiper wire, Replaces 1973558C1

1шт.

19

275263A1

HARNESS

- main cab adapter, 23 pin to 31 pin, not shown

1шт.
