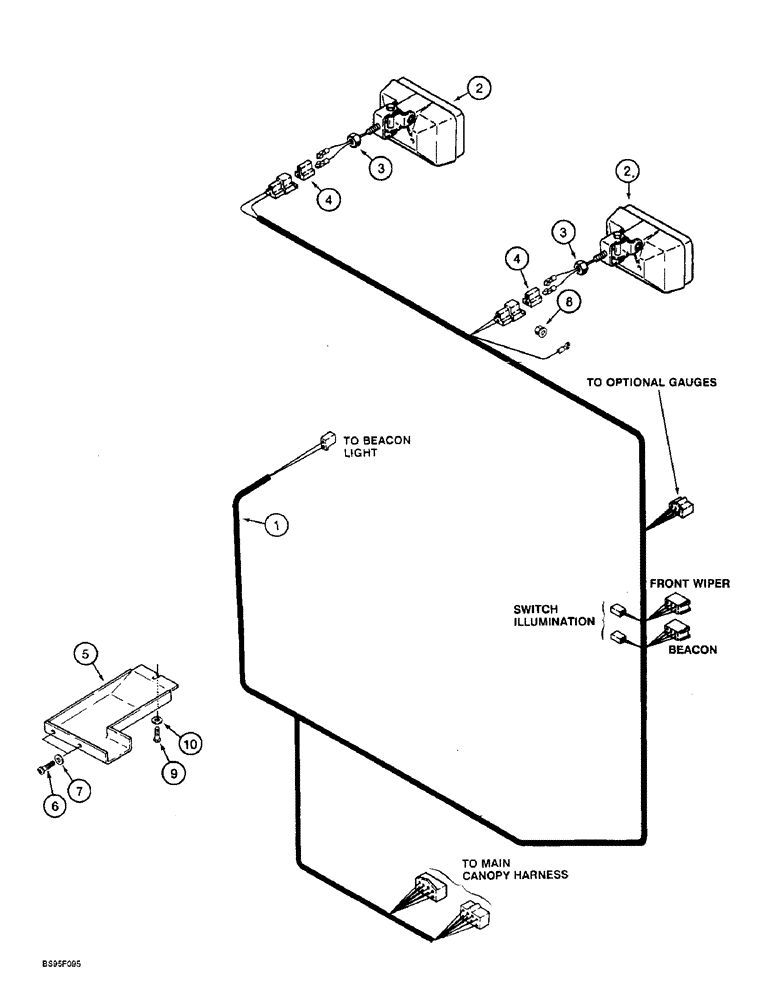

Запчасти Case 721B (4-24) - CANOPY ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546502C1

HARNESS

- roof, ROPS canopy, Replaces 115483A1

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, upper, parts list figure 4-50

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

4

877291R1

ELEC CONNECTOR,Female

CONNECTOR - harness to flood lamp

2шт.

5

1973511C5

COVER

- harness, upper right-hand rear, tan

1шт.

5

193825A1

COVER

- harness, upper right-hand rear, gray

1шт.

6

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

7

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch, if used

2шт.

8

1999948C1

FLANGE NUT

- hex flange, special, 5/16 inch, mounts ground wire to canopy frame

1шт.

9

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

1шт.

10

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64") #12

1шт.
