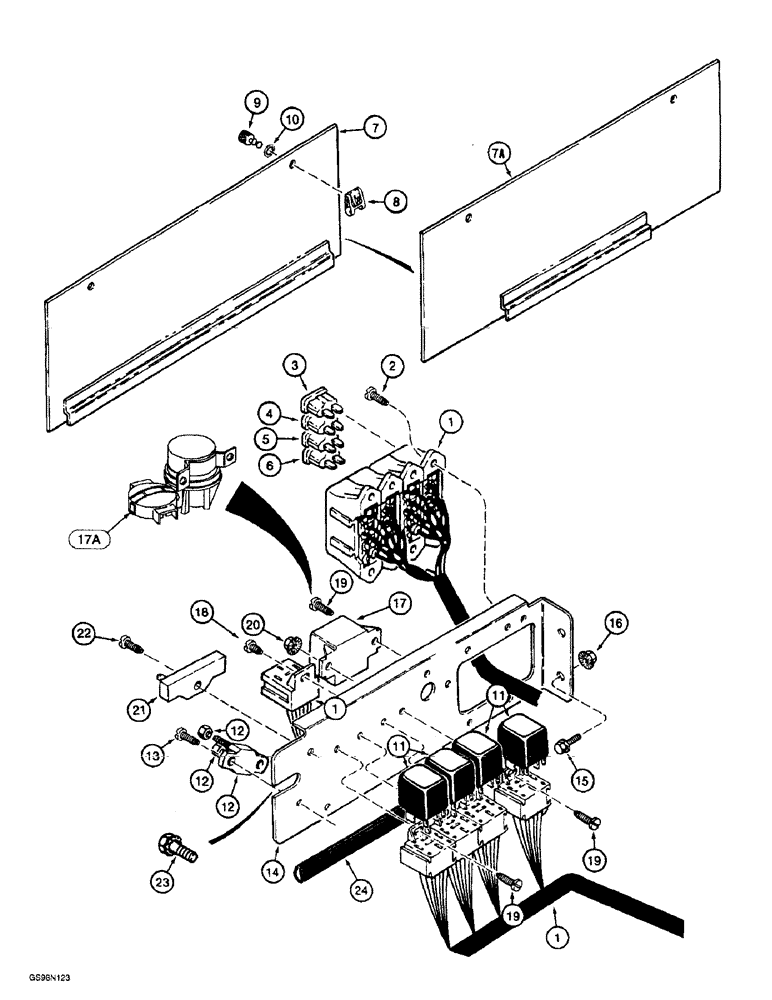

Запчасти Case 721B (4-22) - MAIN CAB HARNESS, POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
110863A2
HARNESS
- main cab, see figure 4-20 for serviceable rectifiers and resistor, Serial Range: -JEE0042310
1шт.
1
192493A1
HARNESS
- main cab, see figure 4-20 for serviceable rectifiers and resistor, Serial Range: JEE0042310-JEE0052700
1шт.
1
244242A1
HARNESS
- main cab, see figure 4-20 for serviceable rectifiers and resistor, Start Serial: JEE0052701
1шт.
2
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch
4шт.
11
198161A1
RELAY
- mini, 24 volt, neutral start, transmission cut-off, cold start, and horn, Replaces A186288
4шт.
12
S243558
CIRCUIT-BREAKER,12.5A
BREAKER - circuit, includes bracket and hardware, with plastic housing and seal, 12.5 ampere
1шт.
13
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch
2шт.
17
1546542C1
RELAY
- sealed, 24 volt, no longer used, order 120398A1 relay, Ref. 17A below, Replaces 1546485C1
1шт.
18
261-1356
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch
1шт.
19
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch
3шт.
22
261-13516
SELF-TAP SCREW,Cross Pan Hd, #10 x 1"
SCREW - self-tapping, pan Phillips, No. 10 NC x 1 inch
1шт.
24
L127454
LINING
TRIM - edge, 220 mm (8-3/4 inch) long, cut from F64277X bulk trim, see below
1шт.
