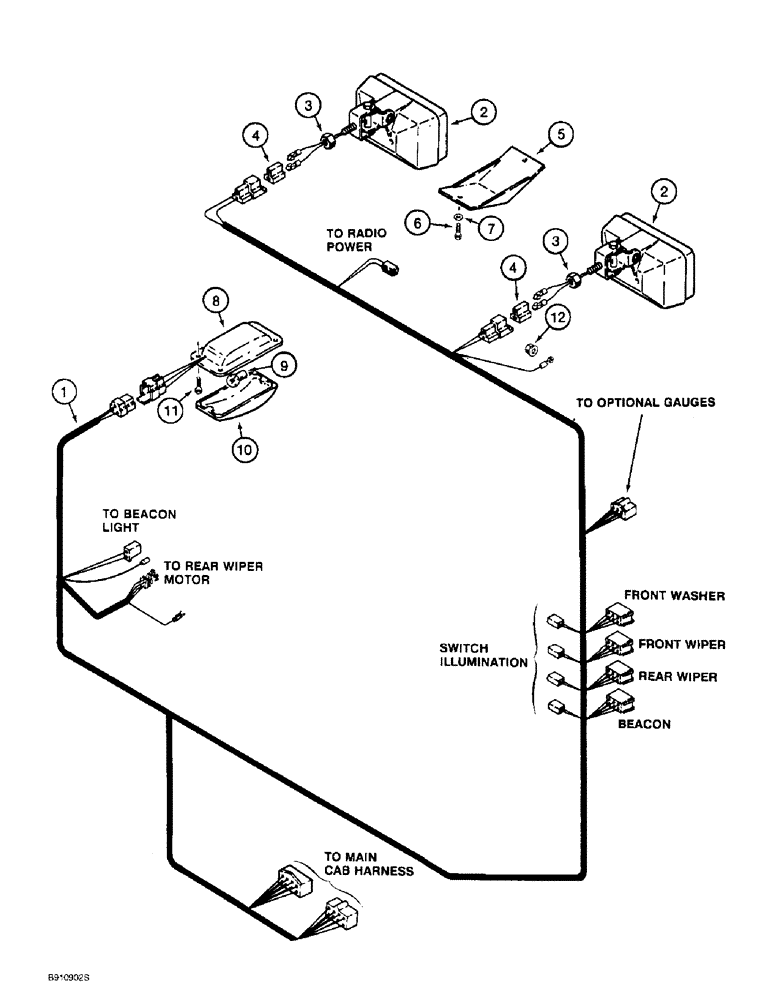

Запчасти Case 721B (4-18) - CAB ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546501C1

HARNESS

- cab roof, replaces 115460A1 harness

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list figure 4-50

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

4

877291R1

ELEC CONNECTOR,Female

CONNECTOR - harness to flood lamp

2шт.

5

1339590C3

COVER

- harness, tan, no longer available, order 193824A1 cover, Ref. 5 below

1шт.

5

193824A1

COVER

- harness, gray

1шт.

6

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

2шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64"), Replaces 1990502C1 #12

2шт.

245659C91

LAMP

ASSEMBLY - dome, replace 12 volt bulb with 24 volt bulb, Ref. 9, shown below, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

9

456602

BULB,2C2R, #1692, 28V

- dome lamp, 24 volt, No. 1692, type 2C2R, No. 1692, type 2C2R, not part of 245659C91 lamp assembly

1шт.

10

245679C1

LENS

- dome lamp, no longer available, order 245659C91 lamp assembly, Serial Range: -JEE0042493

1шт.

10

225929A1

LENS

- dome lamp, Start Serial: JEE0042493

1шт.

11

265-1458

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, oval Phillips, No. 10-16 x 1/2 inch, cab frame

4шт.

12

1999948C1

FLANGE NUT

- hex flange, special, 5/16 inch, mounts ground wire to cab frame

1шт.
