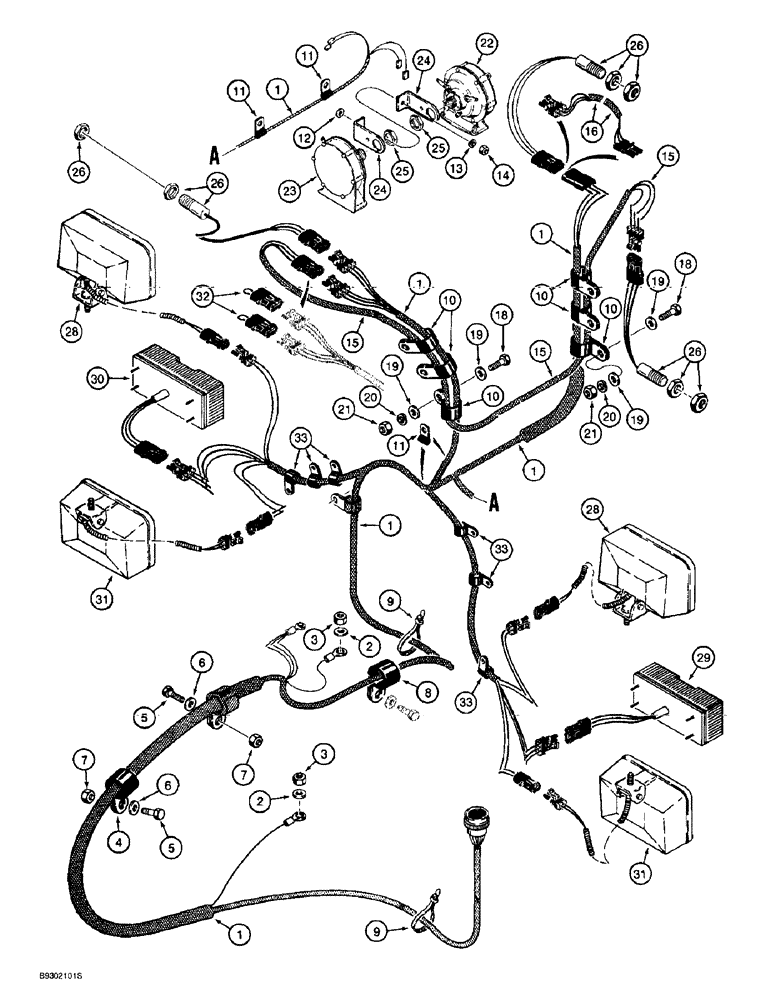

Запчасти Case 721B (4-14) - FRONT HARNESS - LAMPS AND SWITCHES, XT LOADER (04) - ELECTRICAL SYSTEMS

1

116590A1

HARNESS

- front

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special, 11 x 25 x 2 mm

2шт.

3

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special, 3/8 inch NC

2шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

5

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

7

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Wire, Use existing hardware 3/4", Insul, 3/8" Bolt

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

L19029

CLAMP

- P-type, 1/2 inch ID, jumper wire, upper four clamps use hardware Ref. 21 and 22 on figure 8-14

6шт.

11

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

12

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

115863A1

HARNESS

- jumper

1шт.

16

118134A1

HARNESS

- jumper

1шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

R45461

HORN

- F note, 24 volt, left-hand, replaces R40730

1шт.

23

D77650

HORN

- A note, 24 volt, right-hand, replaces L10353

1шт.

24

L73799

BRACKET

- mounting, horn

2шт.

25

L30866

LOCK NUT

- hex, special

1-2шт.

26

1546498C1

SWITCH

- proximity, height control, return-to-transport and return-to-dig, includes hardware

3шт.

28

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - drive, parts list figure 4-50

2шт.

29

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP ASSEMBLY - turn signal and flasher, right-hand, parts list figure 4-52

1шт.

30

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP ASSEMBLY - turn signal and flasher, left-hand, parts list figure 4-52

1шт.

31

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list figure 4-50, not serviced separately, order kit 229488A1

2шт.

32

L127785

HARNESS

WIRE - jumper, use when height control and return-to-transport option is not used

2шт.

33

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Pressure tube, Lamp 1/2", Insul, 1/2" Bolt

6шт.
