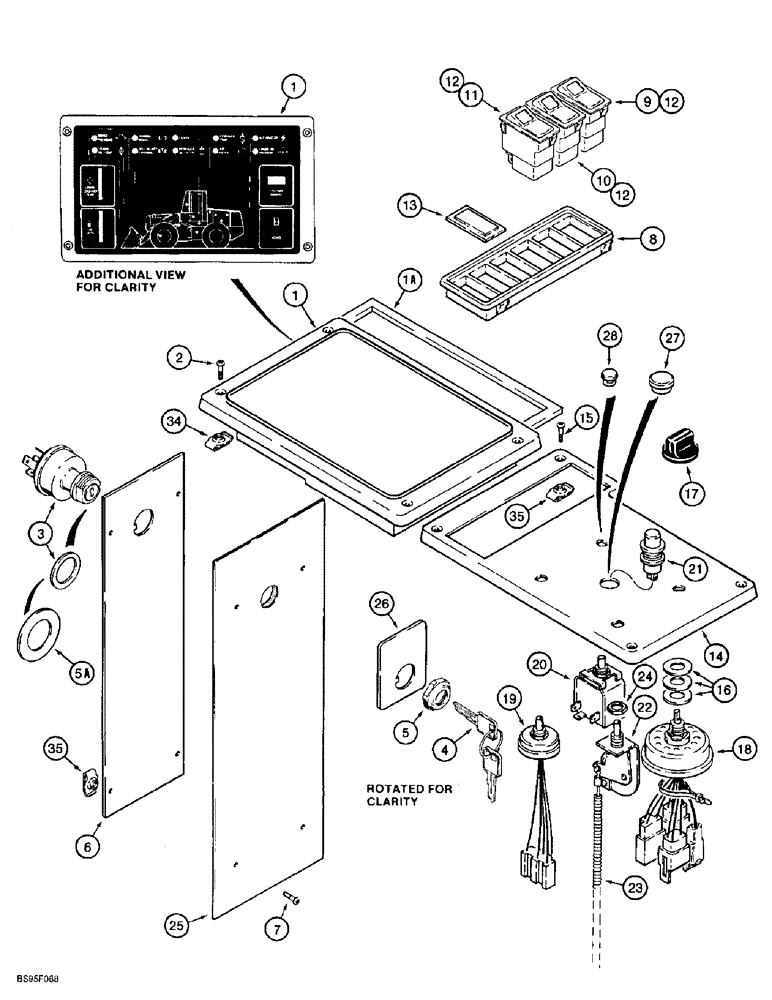

Запчасти Case 721B (4-08) - INSTRUMENT PANEL AND IGNITION SWITCH (04) - ELECTRICAL SYSTEMS

1

185653A2

CLUSTER

PANEL ASSY - instrument, with graphics, monitoring system Replaces 1987532C1, Includes: Ref. 1A - 1C

1шт.

See figure 9-102 for environmental control panel and rocker switch decals.

1шт.

185653A2R

REMAN-INSTR CLUSTER

721B (3/93-12/98)

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

1a

143779A1

GASKET

- panel

1шт.

1b

248316A1

HOURMETER

GAUGE - hourmeter wheel, not shown

1шт.

1c

248317A1

BUZZER

GAUGE - wheel, not shown

1шт.

2

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan head, No., 10 NC x 3/4 inch

4шт.

282775A1

IGNITION SWITCH

SWITCH ASSY - ignition, includes keys, Includes: Ref. 3 - 5; Replaces D134737 Switch Which Used A77313 Metal Key Without Padding Used On Some Models

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

4

1964831C2

IGNITION KEY

KEY - padded, set of two

1шт.

5

A77314

NUT

- hex, special, key switch mounting

1шт.

5a

95-11106

WASHER,1" x 2" x .134"

- flat, 1-1/16 x 2 x 1/8 inch, ignition, models with canopy

1шт.

6

193904A1

LARGE PLATE

PLATE - mounting, ignition switch, replaces 1339909C1

1шт.

7

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

8

A187580

PANEL

- mounting, switch

1шт.

9

A187762

SWITCH

- rocker, declutch selector

1шт.

See figure 9-102 for environmental control panel and rocker switch decals.

1шт.

10

1913507C1

SWITCH ASSY

SWITCH - rocker, return-to-dig

1шт.

See figure 9-102 for environmental control panel and rocker switch decals.

1шт.

11

A187762

SWITCH

- rocker, return to transport and height control, Includes: Ref. 12

1шт.

See figure 9-102 for environmental control panel and rocker switch decals.

1шт.

12

926645C1

BULB,W5, 12V, 1.2W

- W5/1.2 24V1, 2W, included with Ref. 9, 10, and 11

1шт.

13

245918C1

LENS

PLUG - rectangular, rocker switch opening, if used

1шт.

14

1970047C3

PANEL

- control, environmental

1шт.

15

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - pan Phillips, special, 1/4 NC x 1 inch

4шт.

16

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

17

1994720C1

KNOB

- push on, five position lamp and heater switches

1шт.

18

1994716C1

LIGHT SWITCH

SWITCH - Lamp, five position

1шт.

19

92100C2

SWITCH

- blower motor

1шт.

20

A187954

SWITCH

- thermostat, models with air conditioning

1шт.

21

A187881

LAMP

- amber lens, No. 1820, pressure indicator, models with air conditioning

1шт.

1977535C2

CABLE

ASSEMBLY - heater, no longer available, for service order Ref. 22, switch and 23, cable

1шт.

22

1954651C2

CONTROL

SWITCH - heater

1шт.

23

1954648C2

CABLE

- heater

1шт.

24

109311H

JAM NUT

- hex, jam, 7/16-28 NF

1шт.

25

1969939C1

LARGE PLATE

FOAM - ignition switch mounting plate, tan

1шт.

25

179303A1

PADDING

FOAM - ignition switch mounting plate, gray

1шт.

26

1339931C1

LARGE PLATE

PLATE - ignition switch, tan, no longer available, order 193319A1 plate, Ref. 26 below

1шт.

26

193319A1

PAD

PLATE - ignition switch, gray

1шт.

27

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, models without air conditioning

1шт.

28

353-403

PLUG,Dome, .437" hole, Nylon

Models without air conditioning Dome, .437" hole, Nylon

1шт.

29

S300775

SWITCH

- rocker, fact coupler, not shown, Z-bar loaders only, Includes: Ref. 30

1шт.

See figure 9-102 for environmental control panel and rocker switch decals.

1шт.

30

926645C1

BULB,W5, 12V, 1.2W

- W5/1.2 24V1.2W, not shown

1шт.

31

128459A1

SWITCH

- rocker, coupler locking, Includes: Ref. 32

1шт.

32

926645C1

BULB,W5, 12V, 1.2W

- W5/1.2 24V1.2W, not shown

1шт.

33

120561A1

LENS

- not shown

1шт.

34

131-876

SPRING NUT,U, #10 - 24, 0.020" Thk

- U-type, No. 10 NC

4шт.

35

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- U-type, 1/4 inch NC

8шт.
