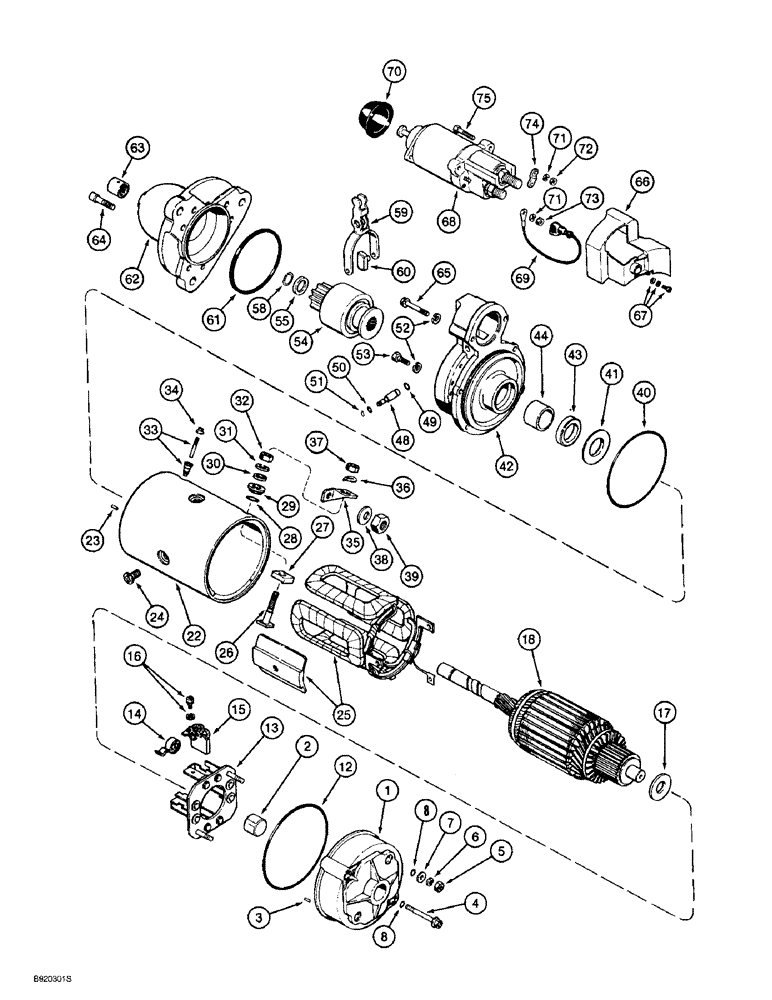

Запчасти Case 721B (4-04) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A187722
STARTING MOTOR
STARTER ASSEMBLY - engine, Nippondenso 128000-7020, Includes: Ref. 1 - 75
1шт.
AR187722
REMAN-STARTER
Remanufactured Starter
1шт.
AC187722
CORE-STARTER
Return Number
1шт.
1
A187851
HOUSING
FRAME ASSEMBLY - end, commutator, Includes: Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
BEARING - needle
1шт.
3
NSS
NOT SOLD SEPARAT
PIN - dowel, locating
1шт.
4
845-6060
BOLT,Hvy Hex, M6 x 60mm, Cl 8.8
BOLT - heavy hex flange, 6 - 1.0 x 60 mm
4шт.
5
825-2306
FLANGE NUT,M6 x 1, Flg, Cl 8
NUT - hex flange, 6 mm - 1
2шт.
6
NSS
NOT SOLD SEPARAT
WASHER - lock, 6 mm
2шт.
7
NSS
NOT SOLD SEPARAT
WASHER - flat, 6 mm
2шт.
8
A187857
O-RING,5.8 mm ID x 1.9 mm
O-RING - sealing
4шт.
12
A187893
GASKET
O-RING - frame
1шт.
13
A187852
BRUSH HOLDER
HOLDER, BRUSH HOLDER ASSEMBLY - brush, Includes: Ref. 14
1шт.
14
A187823
SPRING
SPRING - brush
4шт.
15
A187794
BRUSH, COMMUTATOR
BRUSH BRUSH - starter, replaces A187891
4шт.
16
A47816
SCREW,Pan Cross, M5 x 0.8 x 12mm
SCREW - slotted, includes lock washer, 5 - 0.8 x 12 mm
4шт.
17
A47813
WASHER
WASHER - end, armature
1шт.
18
A187889
ARMATURE
ARMATURE - starter
1шт.
22
A187888
BODY
HOUSING ASSEMBLY - field coil, Includes: Ref. 23 - 33
1шт.
23
NSS
NOT SOLD SEPARAT
PIN - dowel, locating
1шт.
24
NSS
NOT SOLD SEPARAT
SCREW - retainer, coil
4шт.
25
NSS
NOT SOLD SEPARAT
COIL - field
1шт.
26
NSS
NOT SOLD SEPARAT
TERMINAL - field
1шт.
27
NSS
NOT SOLD SEPARAT
BUSHING - insulation
1шт.
28
NSS
NOT SOLD SEPARAT
O-RING - terminal
1шт.
29
NSS
NOT SOLD SEPARAT
BUSHING - insulation
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - flat plate
1шт.
31
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
32
NSS
NOT SOLD SEPARAT
NUT - hex, terminal
1шт.
33
NSS
NOT SOLD SEPARAT
TERMINAL STUD ASSEMBLY - field
1шт.
34
A187862
FLANGE NUT
NUT - hex, terminal
1шт.
35
A187858
FITTING
CONNECTOR - terminal B
1шт.
36
A10454
WAVE WASHER
WASHER - spring
1шт.
37
825-1410
NUT,M10, Cl 8
Nut, M10, Cl 8
1шт.
38
A187859
WASHER
WASHER - wave
1шт.
39
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
40
A187894
GASKET
O-RING - sealing, housing
1шт.
41
A187860
WASHER
WASHER - plate, armature
1шт.
42
A187850
HOUSING
HOUSING ASSEMBLY - lever, Includes: Ref. 43 and 44
1шт.
43
NSS
NOT SOLD SEPARAT
SEAL - oil, housing
1шт.
44
NSS
NOT SOLD SEPARAT
BEARING - housing
1шт.
48
A187865
KIT
KIT - pin, lever, Includes: Ref. 49 - 51
1шт.
49
NSS
NOT SOLD SEPARAT
O-RING - pin, large
1шт.
50
NSS
NOT SOLD SEPARAT
O-RING - pin, small
1шт.
51
NSS
NOT SOLD SEPARAT
RING - snap, pin
1шт.
52
A49815
LOCK WASHER
WASHER - lock, bolt
4шт.
53
A187861
BOLT,Hex, M7 x 23mm
BOLT - hex, housing
4шт.
54
A187848
CLUTCH ASSEMBLY
CLUTCH - starter drive
1шт.
55
A187855
NUT
NUT - pinion stop
1шт.
58
A47790
RING, SNAP
RING SNAP RING - snap, Serial Range: collar-shaft
1шт.
59
A187853
LEVER
LEVER ASSEMBLY - clutch, starter, Includes: Ref. 60
1шт.
60
A187854
WEAR PAD
PAD - lever
2шт.
61
A47786
SEAL
O-RING - clutch housing, clutch
1шт.
62
A187890
HOUSING
HOUSING ASSEMBLY - clutch drive, Includes: Ref. 63
1шт.
63
NSS
NOT SOLD SEPARAT
BEARING - needle
1шт.
64
A187856
BOLT,Hex, M7 x 24.50mm
BOLT - hex, special, drive housing
6шт.
66
A187864
COVER
KIT - cover, anti-bypass start, Includes: Ref. 67
1шт.
67
NSS
NOT SOLD SEPARAT
SCREW - includes washers, cover
1шт.
68
A187892
IGNITION SWITCH
SWITCH ASSEMBLY - magnetic solenoid, Includes: Ref 69 - 75
1шт.
69
NSS
NOT SOLD SEPARAT
WIRE - connecting
1шт.
70
NSS
NOT SOLD SEPARAT
COVER - plunger
1шт.
71
NSS
NOT SOLD SEPARAT
WASHER - lock
3шт.
72
NSS
NOT SOLD SEPARAT
NUT - hex
1шт.
73
NSS
NOT SOLD SEPARAT
NUT - hex
2шт.
74
NSS
NOT SOLD SEPARAT
TERMINAL - switch
1шт.
75
NSS
NOT SOLD SEPARAT
BOLT - hex, terminal
1шт.
65
814-6040
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8
BOLT, Hex, M6 x 40, 8.8
2шт.
Выбрано товаров: 67
