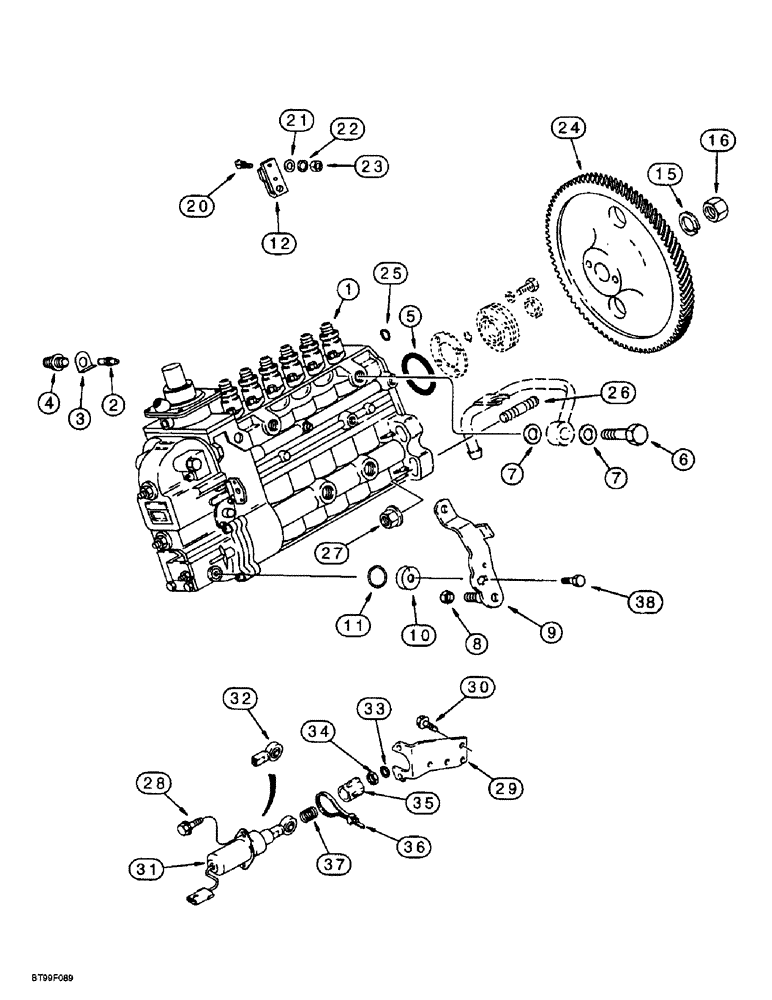

Запчасти Case 721B (3-13C) - FUEL INJECTION PUMP AND DRIVE, 6T-830 EMISSIONS CERTIFIED ENG., LOADER P.I.N. JEE053200 & AFTER (03) - FUEL SYSTEM

1

J930122

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 23

1шт.

1

JR930122

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, for service order item 1, J930122 pump, Includes: Ref.2 - 23

1шт.

1

JC930122

CORE-INJECTION PUMP

Return Number

1шт.

1

JC923235

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 23

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

J928981

LOCK WASHER

WASHER - lock, timing plug, replaces 3051337R1

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

J935032

SEAL

O-RING - sealing, 80 mm ID, replaces A41856

1шт.

6

J932096

VALVE

VALVE - overflow, replaces J912886 valve

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

2шт.

8

J930683

LOCK NUT

NUT - hex, 5 mm - 0.8, solenoid to shutoff lever stud

1шт.

9

J929322

LEVER

LEVER - pump shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

12

1808728C1

LEVER

LEVER - throttle control

1шт.

15

J912897

LOCK WASHER

WASHER - lock

1шт.

16

J912896

LOCK NUT

NUT - hex, self-locking, special

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

24

J931379

GEAR

GEAR - fuel pump

1шт.

25

J916284

O-RING

O-RING - sealing, fuel injection pump

1шт.

26

J915036

STUD

STUD - pump mounting, gear housing to injection pump, 55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm - 1.5

4шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

29

J923255

SUPPORT

BRACKET - solenoid mounting

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 20 mm

2шт.

31

J930234

SOLENOID

SOLENOID - fuel shutoff, 24 volt, Includes: Ref. 32 - 37

1шт.

32

L53928

BALL JOINT

JOINT - ball, replaces A146456 joint

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

NUT - hex, jam, 1/4 inch NF

1шт.

35

J925171

BOOT

BOOT - protective, plunger

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP STRAP, CABLE, .098" x 8"

1шт.

37

J923887

SPRING

SPRING - return, plunger

1шт.

38

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 6 - 1.0 x 16 mm, class 10.9

1шт.
