(3-13A) - FUEL INJ. PUMP & DRIVE, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 ENGINE S/N 44866361 & AFTER

Запчасти Case 721B (3-13A) - FUEL INJ. PUMP & DRIVE, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 ENGINE S/N 44866361 & AFTER (03) - FUEL SYSTEM

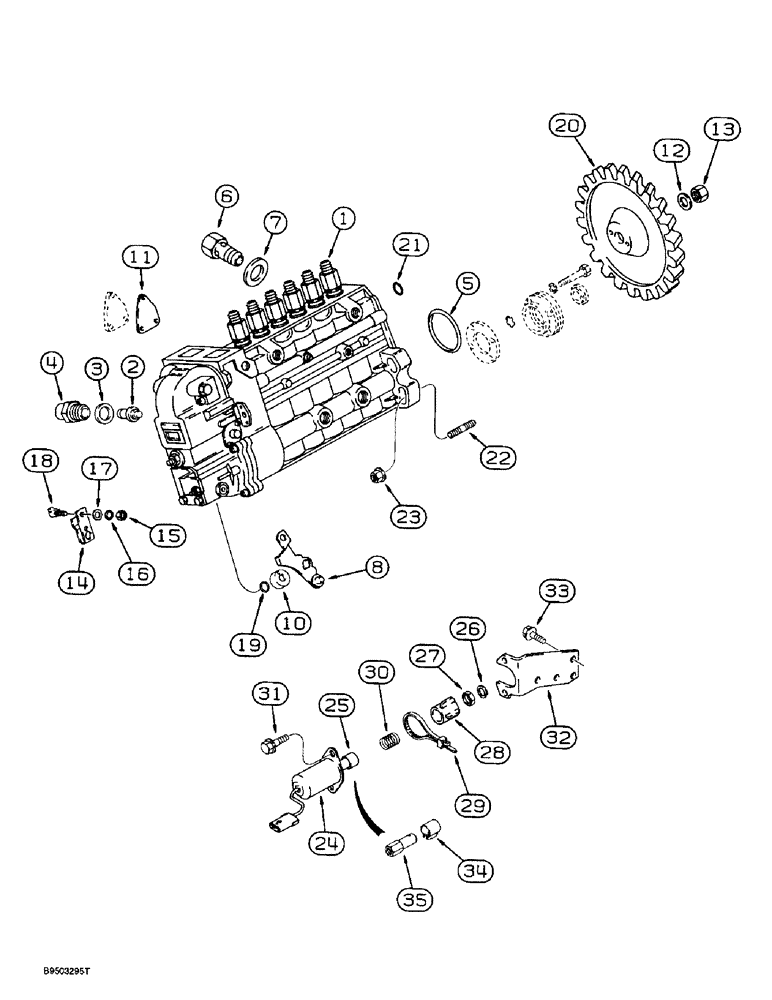

Схема запчастей Case 721B - (3-13A) - FUEL INJ. PUMP & DRIVE, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 ENGINE S/N 44866361 & AFTER (03) - FUEL SYSTEM
10
18
11
3
17
4
35
20
27
30
1
25
34
19
6
13
2
33
28
7
14
8
21
26
12
23
5
15
22
31
29
16
32
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J921100

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

1

JR921100

REMAN-INJECTION PUMP

PUMP ASSY - injection, remanufactured, component parts shown on this figure do not aply to the remanufactured assembly, for service order Ref. 1, J921100, Includes: Ref. 2 - 19

1шт.

1

JC921100

CORE-INJECTION PUMP

Return number

1шт.

1

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 19

1шт.

If J921100 pump assembly is ordered for engines prior to Engine Serial Number 44866361, Ref. 8, J910979 lever on figure 3-12 must be retained for service.

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow, bolt

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J923230

LEVER

LEVER - pump shutoff

1шт.

If J921100 pump assembly is ordered for engines prior to Engine Serial Number 44866361, Ref. 8, J910979 lever on figure 3-12 must be retained for service.

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

GASKET - mounting

1шт.

12

A77775

LOCK WASHER

WASHER - lock

1шт.

13

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

14

1808728C1

LEVER

LEVER - throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

20

J931378

GEAR

GEAR - fuel pump, replaces J912614

1шт.

21

J916284

O-RING

O-RING - sealing, fuel injection pump, fuel pump to gear housing

1шт.

22

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

23

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm - 1.5

4шт.

24

J928161

SOLENOID

SOLENOID - fuel shutoff, 24 volt, Includes: Ref. 25 - 30

1шт.

25

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order Ref. 34 and 35

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

NUT - hex, jam, 1/4 inch NF

1шт.

28

J925171

BOOT

BOOT - protective, plunger

1шт.

29

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP STRAP, CABLE, .098" x 8"

1шт.

30

J923887

SPRING

SPRING - return, plunger

1шт.

31

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

32

J923254

SUPPORT

BRACKET - solenoid mounting

1шт.

33

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

34

J923885

SPRING

CLIP - spring

1шт.

35

J928173

BALL JOINT

SOCKET - ball joint

1шт.
