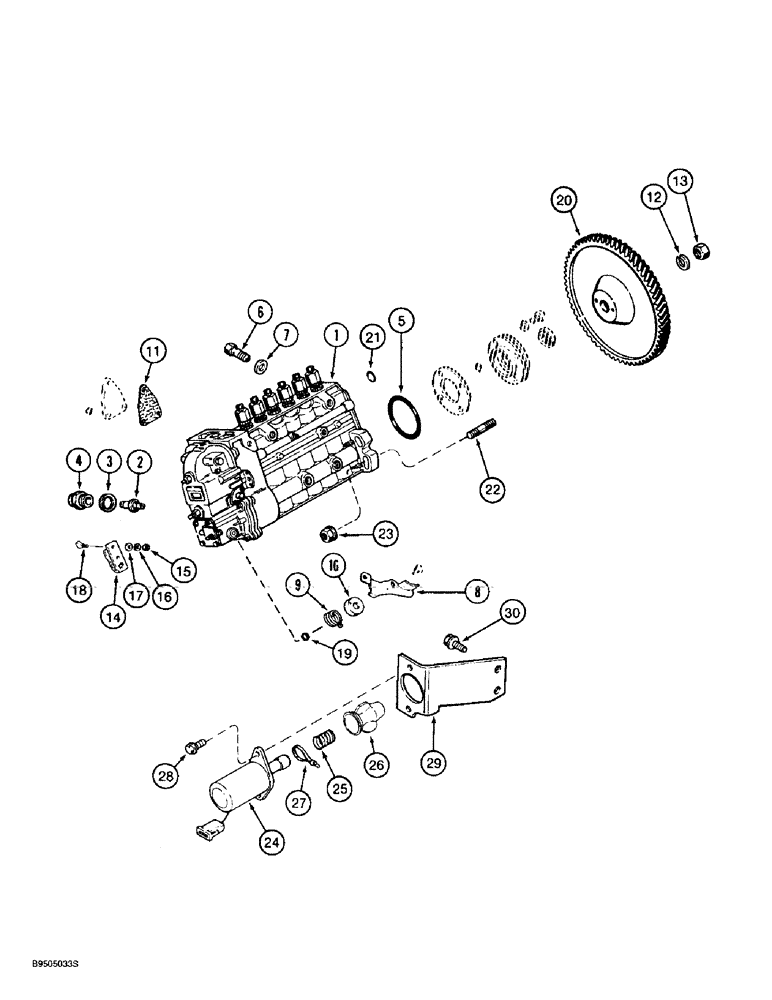

Запчасти Case 721B (3-12) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 (03) - FUEL SYSTEM

JR915973

PUMP

ASSEMBLY - injection, remaufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 19

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

J915973

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, no longer available, for service order J921100 pump assembly on figure 3-13A, Includes: Ref. 2 - 19

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Replaces 933222R1 M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing, pump mounting

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

- mounting, Replaces A46322

1шт.

12

A77775

LOCK WASHER

- lock

1шт.

13

A41852

LOCK NUT

- hex, self-locking

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

20

J931378

GEAR

- fuel pump, replaces J912614

1шт.

21

J916284

O-RING

- sealing, fuel injection pump

1шт.

22

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

23

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5, Fuel pump to timing gear housing, Replaces J902662

4шт.

24

J923258

SOLENOID

- fuel shutoff, no longer available, order J928161 solenoid assembly, Ref. 24, figure 3-13A, Includes: Ref. 25 -30

1шт.

25

J921760

SPRING

- return, plunger

1шт.

26

J924912

BOOT

- protective, plunger

1шт.

27

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , Boot to solenoid .098" x 8"

1шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

29

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

30

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
