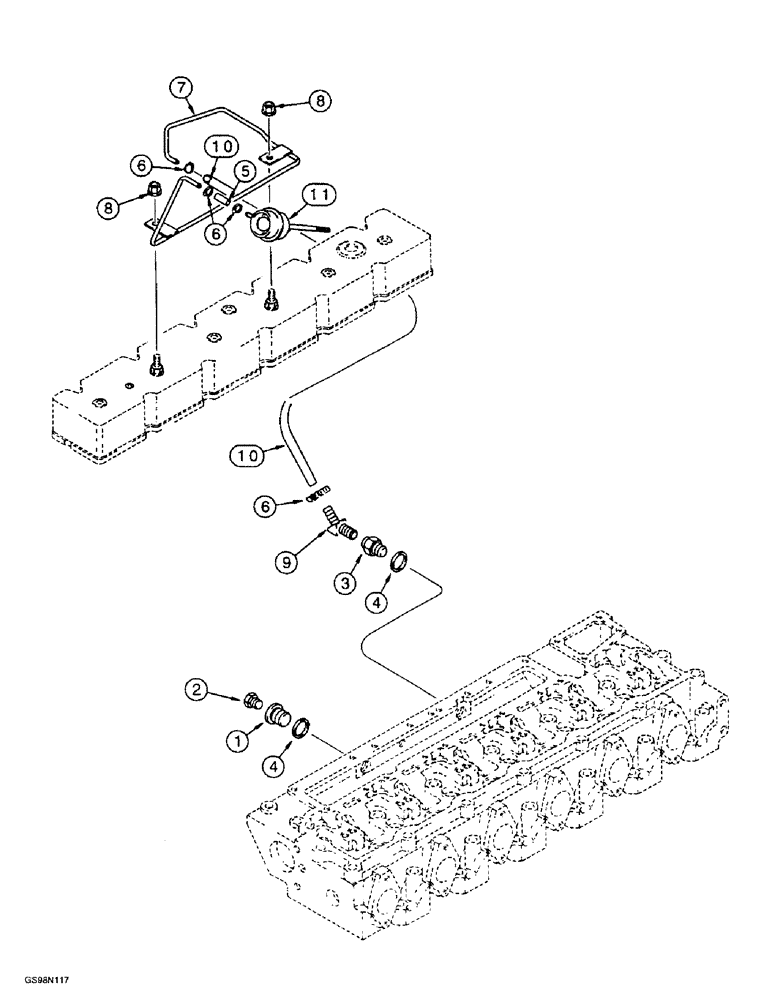

Запчасти Case 721B (3-09C) - WASTEGATE SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE053200 & AFTER (03) - FUEL SYSTEM

1

J908110

PLUG

- threaded

1шт.

2

86637724

PLUG,1/8" - 27 NPT

Headless Hex Soc, 1/8"-27 NPTF

1шт.

3

J921594

PLUG

- threaded orifice, cylinder head to 45 degree elbow

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

5

J920871

HOSE,1294.00 mm

- 1294 mm (51 inch) long

1шт.

6

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj., 1/4 - 5/8 inch diameter

4шт.

7

J927963

TUBE,6.35 mm OD x 325.5, 109 mm L

- wastegate

1шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5, Wastegate tube to valve cover

2шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

10

J925579

HOSE - 224 mm (8-3/4 inch) long

1шт.

11

J535106

ACTUATOR

- turbo wastegate, see figure 2-23C

1шт.

11

J593679R

REMAN-SOLENOID

721B P.I.N. JEE053200 & Aft., Reman Actuator For New PN's J535106 & J593679

1шт.

11

J593679C

CORE-SOLENOID

Return Number

1шт.
