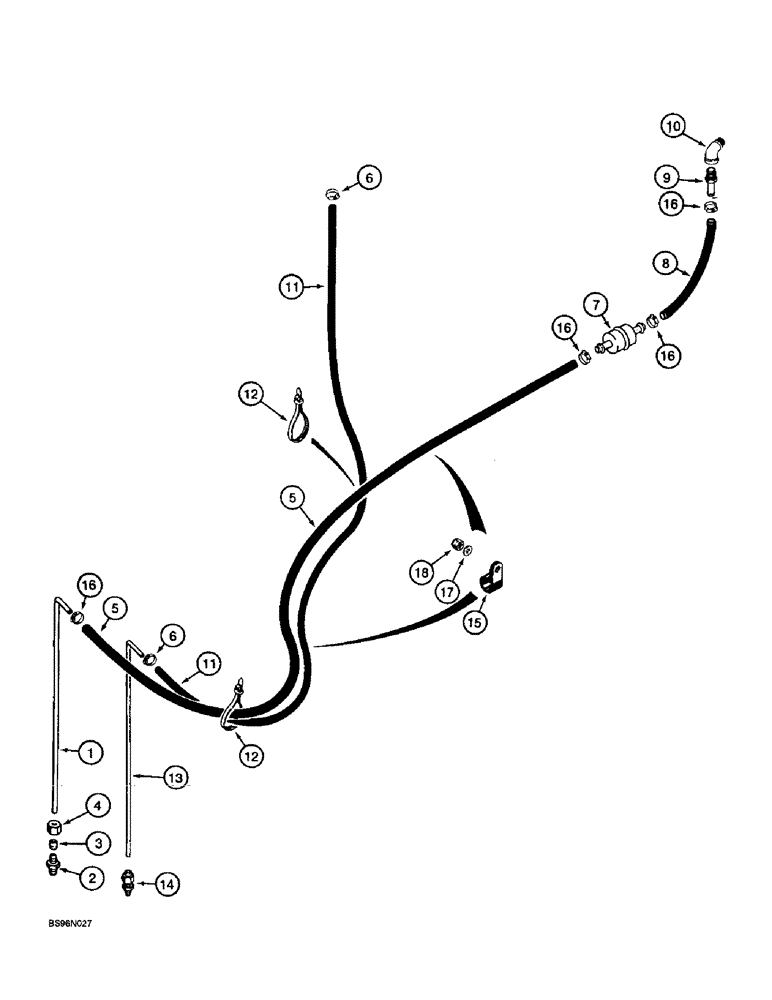

Запчасти Case 721B (3-05C) - FUEL LINES AND IN-LINE FUEL FILTER, P.I.N. JEE0053200 & AFTER (03) - FUEL SYSTEM

1

248051A1

FUEL TUBE,12.7 mm OD, 478, 46 mm Length

TUBE - fuel supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

ADAPTER - compression, 1/2 inch tube O.D. x 1/2 inch PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-656

SLEEVE

- tapered, 1/2 inch tube O.D.

1шт.

4

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

NUT - hex, 1/2 tube O.D. x 11/16-20 inch

1шт.

5

226615A1

FUEL HOSE

HOSE - 1422 mm (56 inch) long, cut from 32-80 bulk hose, shown below, tank to in-line fuel filter

1шт.

6

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj., 1/4 - 5/8 inch diameter

2шт.

7

194199A1

FUEL FILTER

FILTER - fuel, in-line

1шт.

8

226084A1

HOSE, BULK

HOSE - 127 mm (5 inch) long, cut from 32-80 bulk hose, shown below, in-line fuel filter to fuel lift and transfer pump

1шт.

9

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Adapter, straight, stem end 1/2" Hose X 3/8" NPTF Beaded

1шт.

10

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

- street, 90 Degree, 1/2 PT x 3/8 inch female PT

1шт.

11

226616A1

FUEL HOSE

HOSE - 1067 mm (42 inch) long, shown below, fuel return

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

L126216

FUEL TUBE,7.94 mm OD x 478, 46 mm L

TUBE - fuel return

1шт.

14

L125532

FITTING

ADAPTER - compression, components are not serviced

1шт.

15

299615C1

CLAMP

- P-type, 5/8 inch ID, large

2шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

18

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

32-80

HOSE

- bulk, 13 (1/2) ID x 6096 mm (240 inch) long

1шт.

31-2855

HOSE

- bulk, 8 (5/16) ID x 6096 mm (240 inch) long

1шт.
