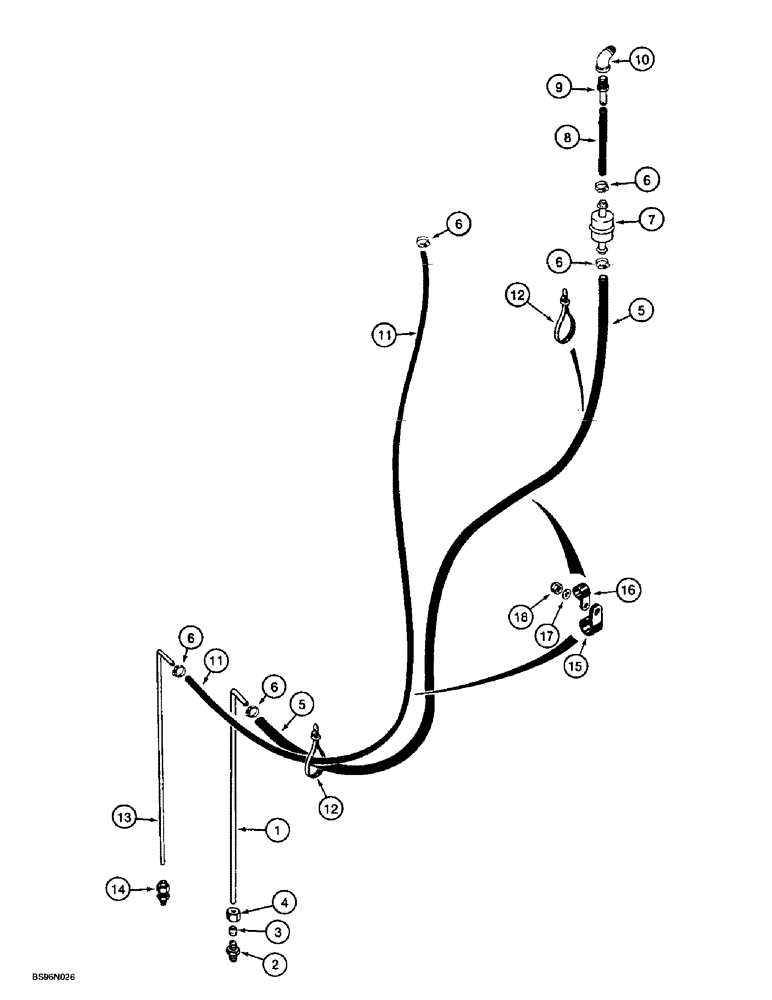

Запчасти Case 721B (3-05A) - FUEL LINES AND IN-LINE FUEL FILTER, P.I.N. JEE0041186 - JEE053199 (03) - FUEL SYSTEM

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

TUBE - fuel

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

ADAPTER - compression, 1/2 inch tube O.D. x 1/2 inch PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- tapered, 3/8 inch tube O.D.

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - hex, 3/8 tube O.D. x 9/16-24 inch

1шт.

5

241174A1

PIPE

HOSE - 1270 mm (50 inch) long, cut from 32-12x bulk hose, shown below, tank to in-line fuel filter

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

5шт.

7

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

8

31-2836

FUEL HOSE

HOSE - 127 mm (5 inch) long, cut from 32-12x bulk hose, shown below, in-line fuel filter to fuel lift and transfer pump

1шт.

9

220-3

FITTING

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

10

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

11

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from L126767 bulk hose, Shown below, Fuel return 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

L126216

FUEL TUBE,7.94 mm OD x 478, 46 mm L

TUBE - fuel return

1шт.

14

L125532

FITTING

ADAPTER - compression, straight, components are not serviced

1шт.

15

299615C1

CLAMP

- P-type, 5/8 inch ID, large

2шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Small 9/16", Insul, 3/8" Bolt

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

32-12X

LARGE HOSE

HOSE - bulk, 10 (3/8) ID x 6096 mm (240 inch) long

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

-

1шт.
