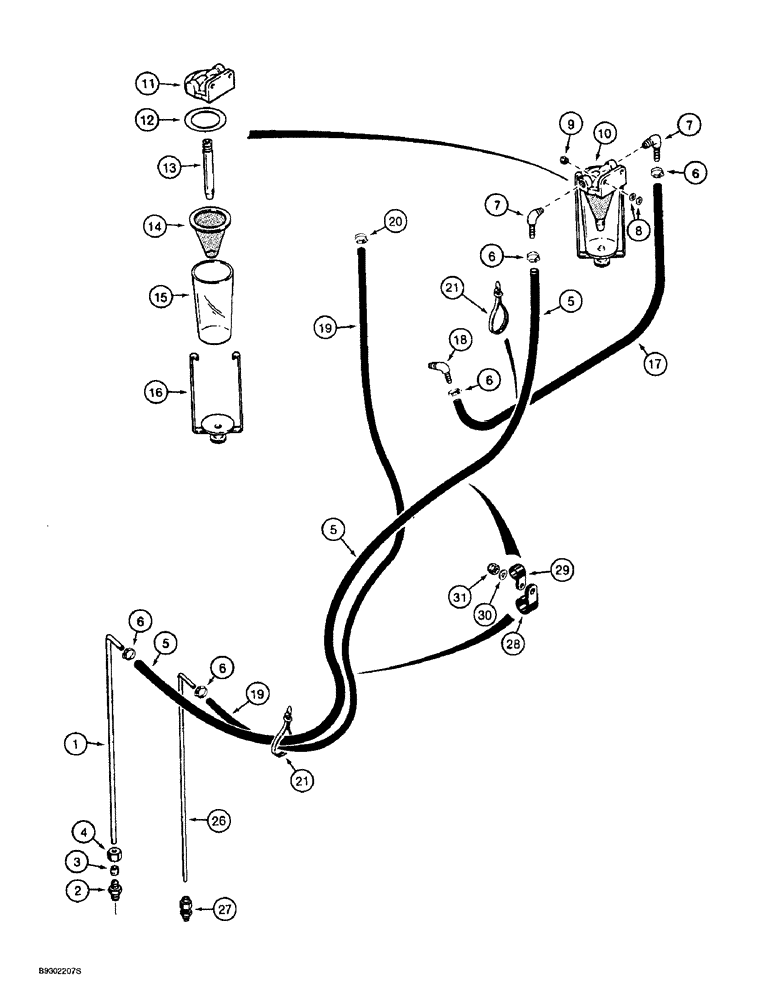

Запчасти Case 721B (3-04) - FUEL LINES AND SEDIMENT BOWL, PRIOR TO P.I.N JEE0041186 (03) - FUEL SYSTEM

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

TUBE - fuel

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

ADAPTER - compression, 1/2 inch tube, O.D. x 1/2 inch PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- tapered, 3/8 inch tube O.D.

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - hex, 3/8 tube O.D. x 9/16-24 inch

1шт.

5

850569C1

HOSE,0.38" ID x 77.00", SAE30R2 Type 1

Cut from 364357C2 Bulk Hose, Shown Below, Tank to Strainer 0.38" ID x 77.00", SAE30R2 Type 1

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

5шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 Degree, 3/8 barb x 1/4 PT

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

10

R18798

STRAINER ELEMENT

BOWL ASSEMBLY - sediment, fuel, Includes: Ref. 11 - 16

1шт.

11

R21356

HOUSING

BODY - sediment bowl

1шт.

12

370520R1

GASKET

- sediment bowl, Replaces R21357

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

14

370784R91

FILTER SCREEN

SCREEN - sediment bowl, Replaces R21359

1шт.

15

R21361

BOWL

- sediment

1шт.

16

370785R91

CLAMP

RETAINER - sediment bowl, Replaces R21358

1шт.

17

L60470

FUEL HOSE,0.38" ID x 24.00", SAE 30R2 Type 1

Strainer To Pump 0.38" ID x 24.00", SAE 30R2 Type 1

1шт.

Order D57412 trim 627.38 mm (24.7 inch) long, L60469 trim 736.6 mm (29 inch) long, H404046 trim 863.6 mm (34 inch) long, or H404038 trim 2159 mm (85 inch) and cut to length.

1шт.

18

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 Degree, 3/8 barb x 1/4 PT

1шт.

19

L126218

FUEL HOSE

HOSE - 1435 mm (56-1/2 inch) long, cut from 414365C2

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

L126216

FUEL TUBE,7.94 mm OD x 478, 46 mm L

TUBE - fuel return

1шт.

27

L125532

FITTING

ADAPTER - compression, straight, components are not serviced

1шт.

28

299615C1

CLAMP

- P-type, 5/8 inch ID, large

2шт.

29

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Small 9/16", Insul, 3/8" Bolt

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

31

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

9.53 mm x 304.80 mm, SAE 30R7

1шт.

414365C2

HOSE,7.94mm ID x 7620mm L, SAE 30R7

- bulk, 8 (5/16) ID x 15240 mm (600 inch) long

1шт.
