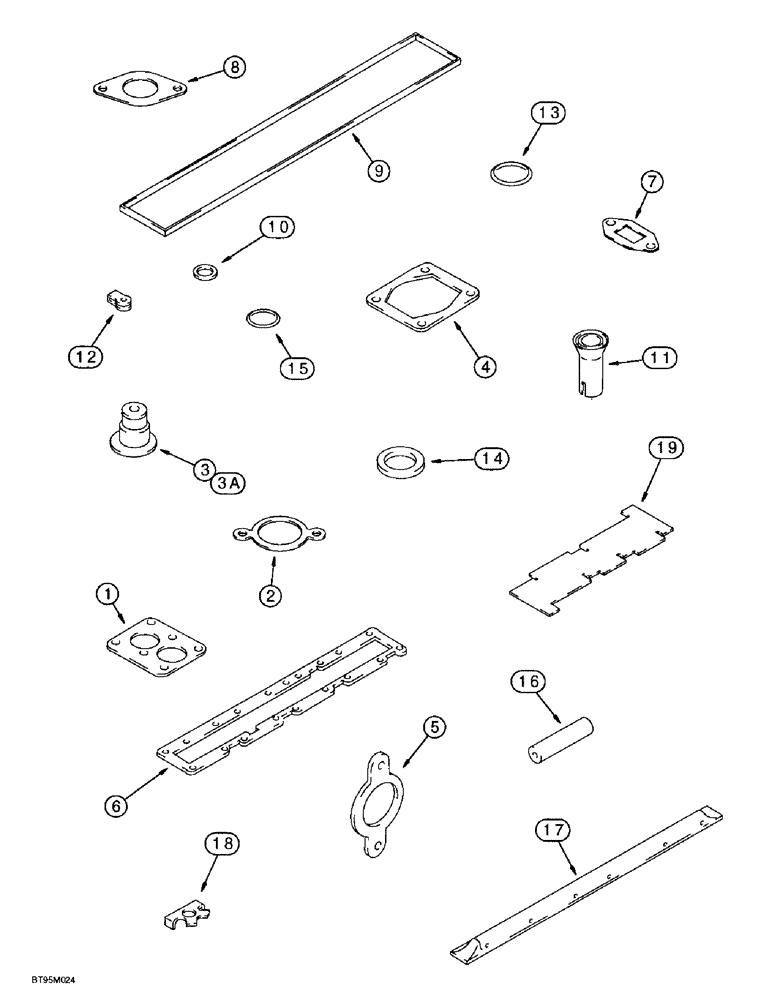

Запчасти Case 721B (2-47A) - VALVE GRIND GASKET KIT, 6T-830 EMISSIONS CERTIFIED ENGINE LOADER P.I.N. JEE053200 AND AFTER (02) - ENGINE

A77842

GASKET KIT

KIT - gasket, valve grind, Includes: Ref. 1 - 19

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on figure 2-29A.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide, used on intake valve only on Emissions Certified engines

6шт.

3a

J927642

SEAL

- exhaust valve stem and guide, if used

6шт.

4

J911941

GASKET

- mounting, turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick

1шт.

6

J914311

MANIFOLD GASKET

- intake manifold cover

1шт.

7

J931350

GASKET

- turbo oil drain tube, Replaces J928919, if used

1шт.

8

J942725

GASKET

- turbo oil drain, Replaces J819378

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

- connector, fuel injection nozzle

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover -115, 70 Duro, .674" ID x .103" Thk

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL - injector nozzle, 2.5 mm thick, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shut-off valve -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J930827

HOSE,51.00 mm

Breather Tube to Connector, Replaces J918610 51.00 mm

1шт.

17

J919677

TUBE

- oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

PLATE - locking, exhaust manifold bolt

12шт.

19

J823921

GAUGE

- cylinder head, bolt length

1шт.
