Запчасти Case 721B (2-43A) - FLYWHEEL HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE053200 & AFTER (02) - ENGINE

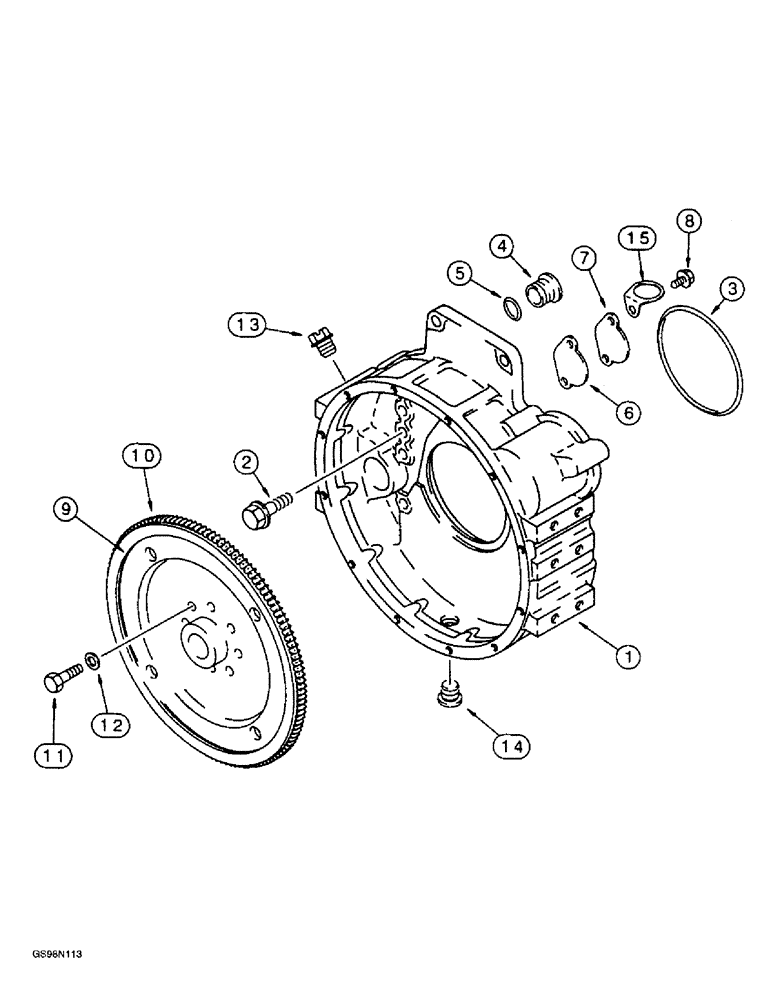

Схема запчастей Case 721B - (2-43A) - FLYWHEEL HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE053200 & AFTER (02) - ENGINE
2
6
9
8
3
10
7
11
14
1
5
12
15
13
4

Артикул

Название

Примечание

Количество

1

J908799

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

4

J910248

PLUG

- flywheel housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908096

GASKET

- cover plate

1шт.

7

J925234

PLATE

- cover

1шт.

8

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

2шт.

9

87581012

ENGINE FLYWHEEL

FLYWHEEL ASSEMBLY - engine, replaces J919547, J935089; Includes: Ref. 10

1шт.

10

J905427

GEAR

- ring, flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

13

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

14

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, Sq. Soc, 3/4"-14 NPTF

1шт.

15

J928989

CLIP

- retaining, retaining, attaches to J925234 cover plate, Ref. 7 with existing hardware, Replaces J923610

1шт.

Выбрано товаров: 15
