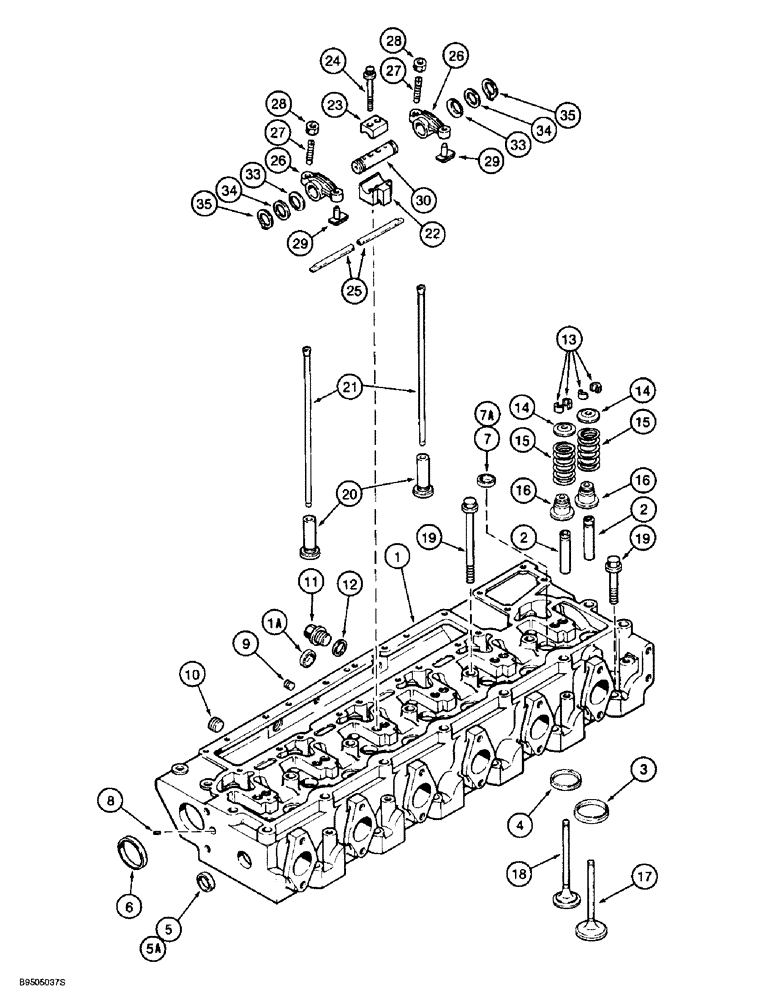

Запчасти Case 721B (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 (02) - ENGINE

JR925644

REMAN-CYLINDER HEAD

HEAD ASSY, cylinder, remanufactured, N.A. only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces JR913111, Includes: Ref. 1A - 35

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly, Includes: Ref. 1A - 35

1шт.

J925644

HEAD (CYLINDER)

HEAD ASSY, cylinder, new, with valves, Replaces J917768 head assembly, Includes: Ref. 1A - 35

1шт.

1

J920026

HEAD (CYLINDER)

HEAD ASSY, cylinder, new, without valves, no longer available, order J925644 head assembly, replaces J919919, Includes: Ref. 1A - 7A

1шт.

1a

J912900

PLUG

- expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE - valve stem, Replaces J901187

12шт.

3

J924582

INSERT

- seat, intake valve, Replaces J908830

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm oversize, service repair only, Replaces J914839

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

- seat, exhaust valve, replaces J904716 and J924583

6шт.

4

J929006

INSERT

- seat, exhaust valve, 0.254 mm oversize, service repair only, Replaces J914836 and J925469

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

- seat, exhaust valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

A77530

PLUG

- expansion, 30 mm O.D., used with J917768 head assembly

1шт.

5a

J920443

PLUG

- expansion, 30 mm O.D.

1шт.

6

A77782

PLUG

- expansion, 58 mm O.D.

2шт.

7

A77590

PLUG

- expansion, used with J917768 head assembly

5шт.

7a

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

- hex, 1/16 inch PT

1шт.

9

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

10

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5, Replaces J904386

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J912976

RETAINER

- valve spring

12шт.

15

J906412

VALVE SPRING

SPRING, VALVE

12шт.

16

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

VALVE - intake, replaces J915506

6шт.

18

J921444

STD EXHAUST VALVE

VALVE - exhaust

6шт.

19

J917728

BOLT

- cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J931623

TAPPET

- valve, push rod, Replaces J907240 and J925031

12шт.

21

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

22

J905870

SUPPORT

- shaft, rocker arm

6шт.

23

J901693

CLAMP

- retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW, Flg, 12 Pt Hd, M10 x 65, 12.9

12шт.

25

J919677

TUBE

- oil, rocker arm

1шт.

26

J901717

ROCKER

ARM ASSEMBLY - rocker

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J919435

SHAFT

- rocker

6шт.

33

J906100

SPRING CUP

WASHER - spring

12шт.

34

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special, end

12шт.

35

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
