Запчасти Case 721B (2-27A) - OIL PUMP AND OIL PAN, 6T-830 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE053200 & AFTER (02) - ENGINE

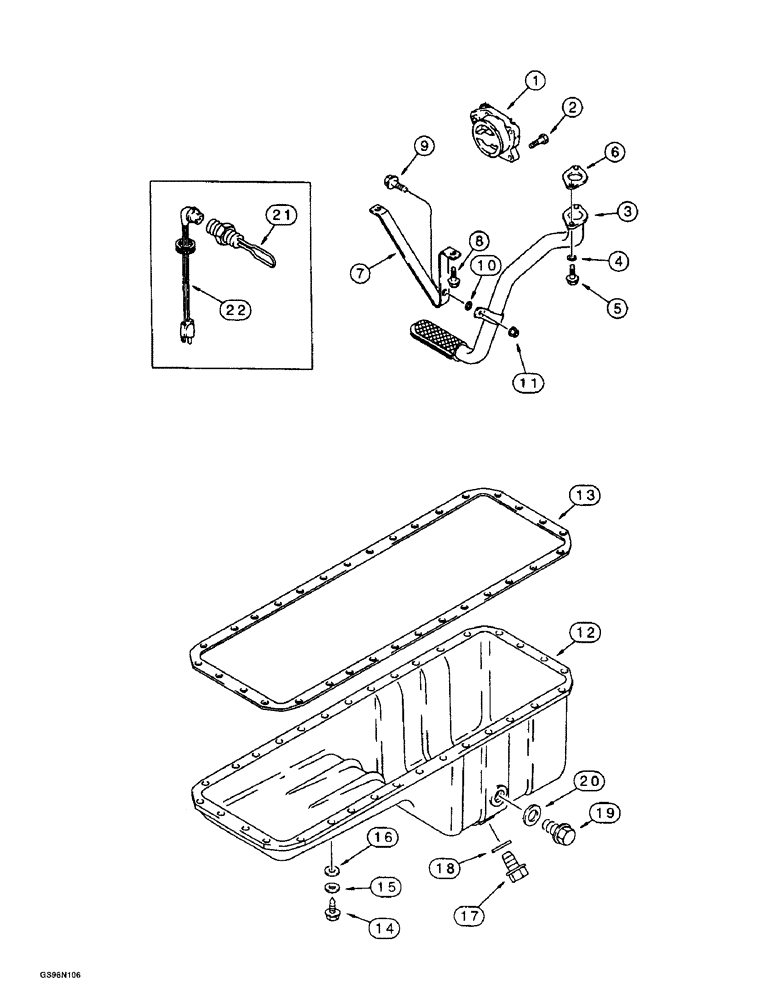

Схема запчастей Case 721B - (2-27A) - OIL PUMP AND OIL PAN, 6T-830 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE053200 & AFTER (02) - ENGINE
20
2
5
15
4
17
7
3
1
22
9
11
16
8
12
18
13
10
21
19
6

Артикул

Название

Примечание

Количество

1

J930338

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear, new

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump, 24 teeth drive gear; For N.A. only

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

BOLT - hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J910787

TUBE

TUBE - with screen, oil suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, M6 x 30

2шт.

6

J914302

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of KIT, P/N A77679

1шт.

7

J927611

BRACKET

BRACE - suction tube

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT, Hex Flg, M6 x 20, 8.8, Full Thd

1шт.

10

J910960

WASHER

WASHER - flat, special, retaining

1шт.

11

J906216

FLANGE NUT

NUT - hex flange, special, 6 mm - 1.0

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77679 kit shown below

1шт.

Part of KIT, P/N A77679

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

15

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

16

J908316

WASHER

WASHER - flat, special, 9 x 16 x 1 mm

32шт.

17

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 12 mm - 1.5, oil drain

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of KIT, P/N A77679

1шт.

19

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic,special, 22 mm - 1.5, heater hole

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug, heater hole

1шт.

Part of KIT, P/N A77679

1шт.

A77679

GASKET KIT

KIT gasket, oil pan, includes Refs. 6, 13, 18 and 20

1шт.

A77580

SERVICE KIT

KIT - oil pan heater, engine oil, Includes: Ref. 21, 22

1шт.

When engine oil heater kit is ordered, J902425 washer, Ref. 20, must also be ordered.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, engine oil

1шт.

22

196466A1

ELECTRIC CABLE

CABLE - engine block heater, oil

1шт.
