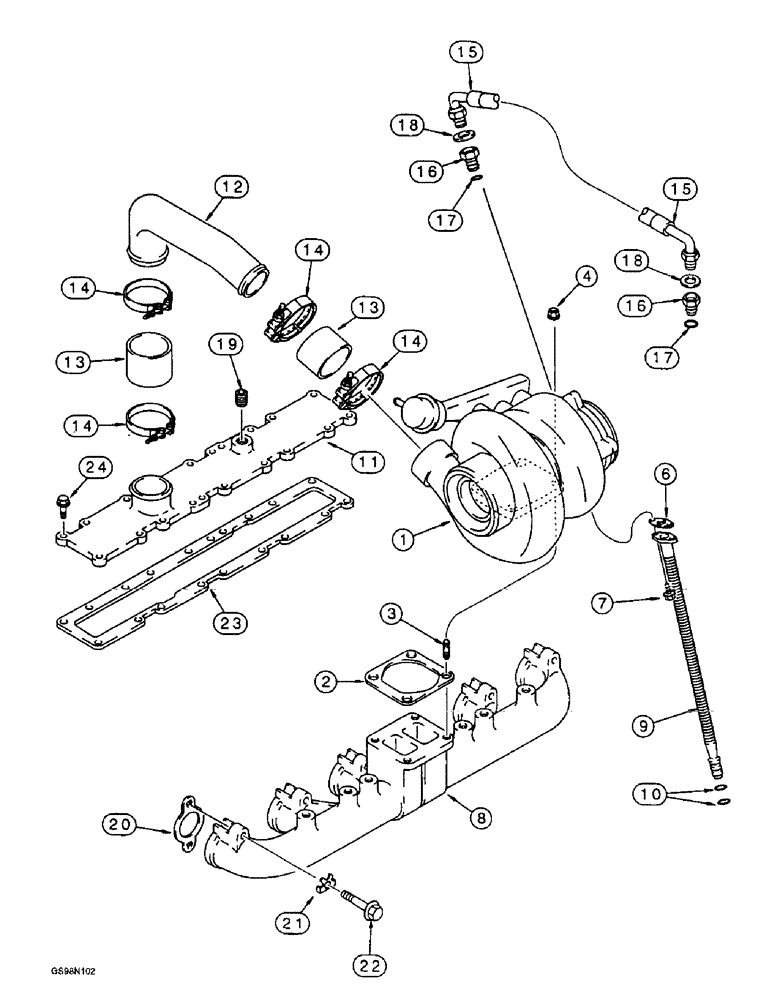

Запчасти Case 721B (2-21A) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6T-830 EMISSIONS CERTIFIED ENG., LOADER P.I.N. JEE053200 & AFTER (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see figure 2-23A for correct assembly and component parts

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

6

J942725

GASKET

- turbo oil drain, replaces J819378

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J932180

MANIFOLD

- exhaust, replaces J906741

1шт.

9

J928629

TUBE

- oil drain, Includes: Ref. 10

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

J922648

COVER ASSY

COVER - intake manifold

1шт.

12

J906742

TUBE,63.5 mm OD

- air, crossover

1шт.

13

J916437

HOSE

Crossover Tube

2шт.

14

J924386

COLLAR CLAMP

CLAMP - adjustable, special, hose retaining

4шт.

15

J918562

HOSE

- 538 mm (21-3/16 inch) long, turbocharger, oil supply

1шт.

16

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 17

2шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

19

A77429

PLUG

- hex socket, 1/2 inch PT

1шт.

20

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, set of 6

1шт.

21

J914708

LOCKING PLATE

PLATE - locking

12шт.

22

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

23

J914311

MANIFOLD GASKET

- intake manifold cover

1шт.

24

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 30 mm

18шт.
