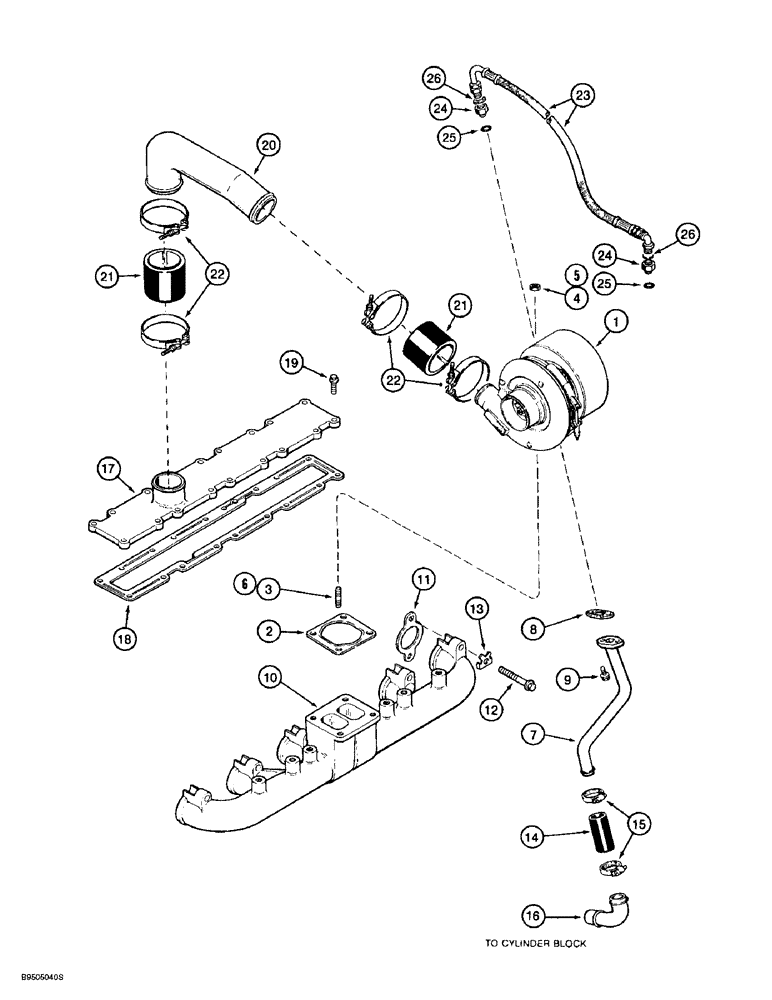

Запчасти Case 721B (2-20) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 (02) - ENGINE

1

J919199

TURBOCHARGER

ASSEMBLY - engine, new, parts list figure 2-22

1шт.

1

JR802303

REMAN-TURBOCHARGER

721B Prior To P.I.N.JEE053200, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J905417

STUD

- turbocharger mounting, used with J901961 nut, Ref. 4 only, if used

4шт.

4

J901961

NUT

- hex, special, 10 mm - 1.25, turbocharger mounting

4шт.

5

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

6

J818823

STUD

- turbocharger mounting, used with J818824 nut, Ref. 5 only, if used

4шт.

7

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- oil drain, upper

1шт.

8

J931350

GASKET

- turbo oil drain tube, replaces J928919

1шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

10

J932180

MANIFOLD

- exhaust, replaces J906741 manifold

1шт.

11

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, replaces J921787

6шт.

12

J929537

BOLT

- hex, special, exhaust manifold to cylinder head

12шт.

13

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

14

J931970

HOSE,22.22 mm ID x 76.20 mm

Replaces J903745 22.22 mm ID x 76.20 mm

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

16

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, lower

1шт.

A77611

MANIFOLD

KIT - intake manifold, no longer available, order components separately, Includes: Ref. 17 and 18

1шт.

17

J906737

COVER ASSY

COVER - intake manifold

1шт.

18

J914311

MANIFOLD GASKET

- intake manifold cover

1шт.

19

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake manifold cover to cylinder head Hex Flg Hd, M8 x 1.25 x 25

18шт.

20

J906742

TUBE,63.5 mm OD

- air, crossover

1шт.

21

J916529

TRANSMISSION SLEEVE

HOSE - 76 mm (3 inch) long

2шт.

22

J924386

COLLAR CLAMP

CLAMP - adjustable, special, hose retaining

4шт.

23

J918562

HOSE

- 538 mm (21-3/16 inch) long, turbocharger

1шт.

24

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 25

2шт.

25

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

26

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
