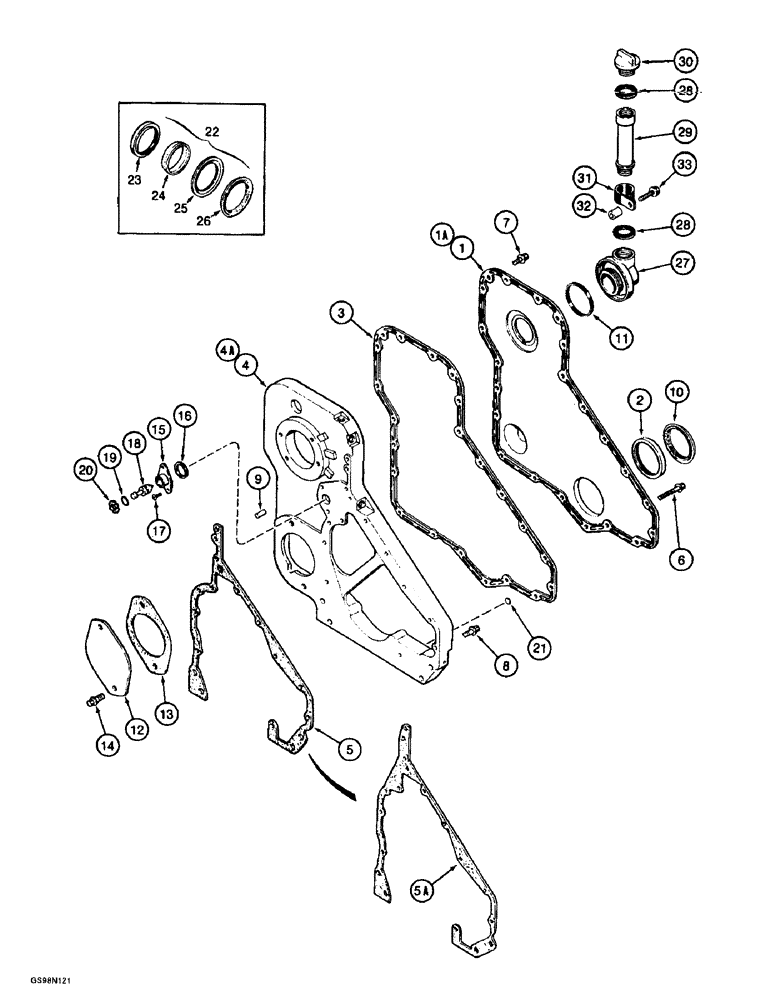

Запчасти Case 721B (2-18) - FRONT GEAR COVER, 6T-830 ENGINE, PRIOR TO LOADER P.I.N. JEE053200 (02) - ENGINE

1

J918454

COVER ASSY

COVER - front gear, low auxiliary mount, prior to engine serial number 45075642

1шт.

1a

J925230

COVER ASSY

COVER - gear, front, low PTO, engine serial number 45075642 and after

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order A77790 seal kit, Ref. 22 below

1шт.

3

J917780

GASKET,0.98mm Thk

GASKET - front gear cover, prior to engine serial number 45075642

1шт.

3a

J823494

SEALANT

- Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, apply between front gear cover and timing gear housing, not shown, engine serial number 45075642 and after

1шт.

4

J914945

MOTOR HOUSING

HOUSING - gear, prior to engine serial number 45075642

1шт.

4a

J926721

MOTOR HOUSING

HOUSING - gear, low PTO, engine serial number 45075642 and after

1шт.

5

J929253

GASKET

- housing, gear, prior to engine serial number 45075642, replaces J281721

1шт.

5a

J929253

GASKET

- housing, gear, engine serial number 45075642 and after, replaces J926757

1шт.

6

J926863

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 50 mm, class 10.9, timing gear cover to, Serial Range: housing-block

6шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, timing gear cover to gear housing

17шт.

8

J926846

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 20 mm, class 10.9, timing gear, Serial Range: housing-block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

10

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, crank seal

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, oil fill connector to front cover

1шт.

12

J914868

COVER

PLATE - access cover, flat

1шт.

13

J931608

GASKET

- access cover plate, replaces J919601

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, plate to flywheel housing

2шт.

15

J919683

HOUSING

- timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

19

J913994

O-RING

- sealing, timing pin

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

Ring, Snap, , Timing pin (Replaces J904849) 0.875", Int, #87

1шт.

21

A77552

PLUG

- expansion, 29/64 inch diameter, lower dowel hole

1шт.

22

A77790

SEAL KIT

KIT - oil seal, crankshaft front, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

26

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, crank seal

1шт.

27

J921644

ADAPTER

CONNECTOR - engine oil fill, replaces J911679 connector

1шт.

28

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

2шт.

29

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

1шт.

30

J901895

CAP

- oil filler

1шт.

31

A77695

MOUNTING CLIP

CLAMP - P-type

1шт.

32

A77697

SPACER

- tubular

1шт.

33

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

1шт.
