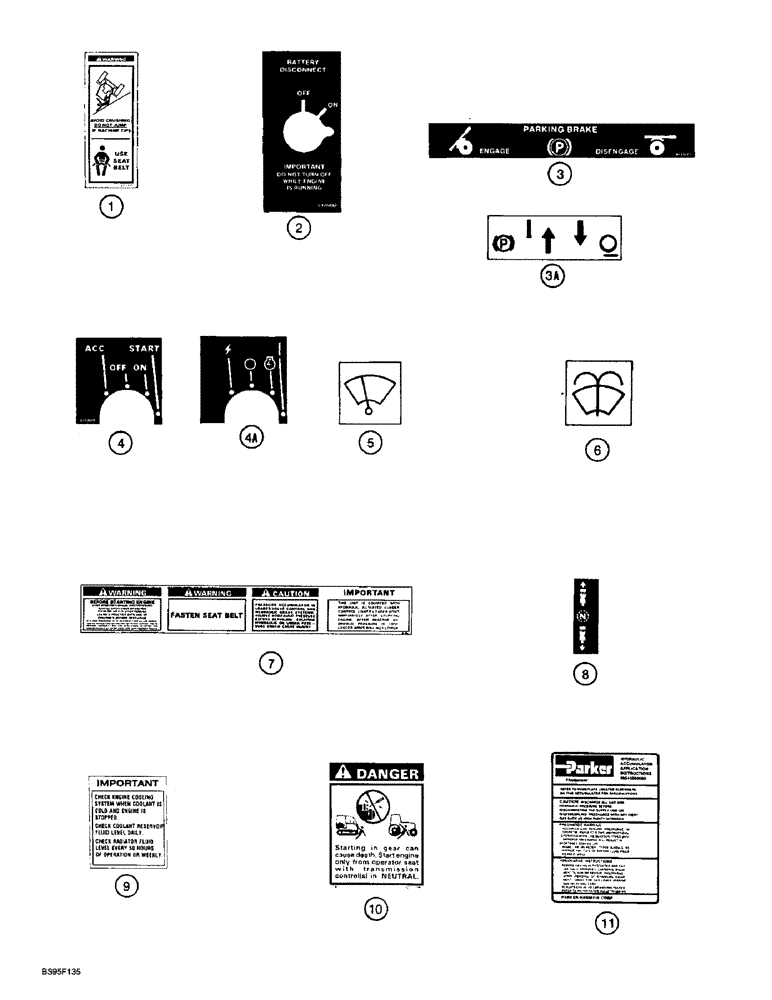

Запчасти Case 721B (9-106) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

1шт.

2

L126480

DECAL

- battery disconnect

1шт.

3

97376C3

DECAL

- parking brake, models with tan cabs or canopies

1шт.

3a

186467A1

DECAL

- parking brake, models with gray or special painted cabs or canopies

1шт.

4

D123946

DECAL

- ignition switch pattern, models with tan cabs or canopies

1шт.

4a

140219A2

DECAL

- ignition switch pattern, models with gray or special painted cabs or canopies

1шт.

5

3231781R1

IDEOGRAM

DECAL - front wiper switch

1шт.

One 3231781R1 decal is included in L36339 canopy windshield and wiper kit shown on Figure 9-98.

1шт.

6

3231783R1

IDEOGRAM

DECAL - windshield washer

1шт.

7

321-7028

DECAL

- Warning/Cauton/Important, combination

1шт.

8

1987168C1

DECAL

- direction, speed, speed

1шт.

9

104004A1

DECAL

- Important, check engine cooling system

1шт.

10

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

11

L129440

DECAL

- hydraulic accumulator application instructions

2шт.
