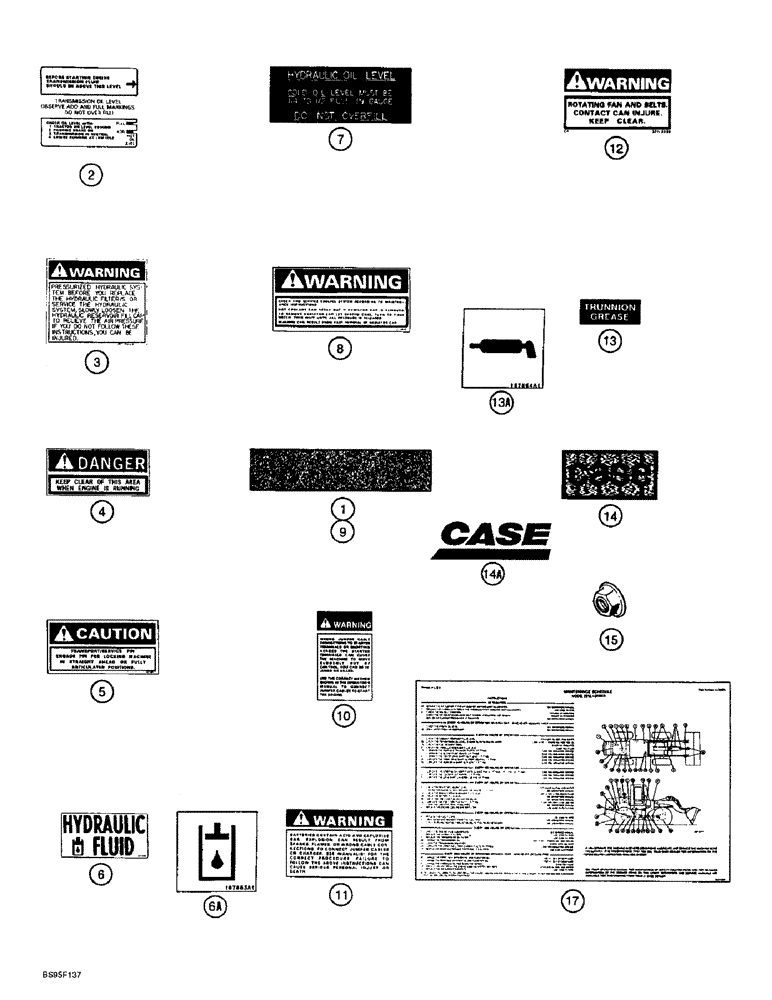

Запчасти Case 721B (9-104) - DECALS (09) - CHASSIS/ATTACHMENTS

1

S243101

WEAR PAD

PAD - anti-skid, cut from S84068 bulk trim

1шт.

2

L125910

DECAL

- transmission oil level

1шт.

3

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

4

321-3205

DECAL

- Danger, keep clear or this area when engine is running, rear chasis

2шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

5

321-3206

DECAL

- Caution, transport/service link

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

6

321-6376

DECAL

- hydraulic fluid, models with tan cabs or canopies

1шт.

6a

187863A1

DECAL

- hydraulic fluid, models with grey or special painted cabs or canopies

1шт.

7

L117520

DECAL

- hydraulic oil level

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

8

321-6672

DECAL

- Warning, check and service cooling system

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

9

D55216

PAD,2" x 9"

PAD - anti-skid, if used

8шт.

10

321-6872

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

11

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

12

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

13

L116271

DECAL

- trunnion grease, models with tan cabs or canopies

1шт.

13a

187864A1

DECAL

- grease lube point, models with grey or special painted cabs or canopies

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.

14

321-4739

EMBLEM

- Case, on grille models with tan cabs or canopies

1шт.

14a

186989A1

EMBLEM

- Case, models with grey or special painted cabs or canopies

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type

2шт.

17

121020A1

DECAL

- maintenance schedule, XT Loader

1шт.

17

115424A1

DECAL

- maintenance schedule, Z-Bar Loader

1шт.

194308A1

DECAL

KIT - decal, includes Ref. 3 - 5, 7, 8, 10 - 12, and 13A

1шт.

For additional decals see figures 9-100 - 9-102, and 9-106.

1шт.
