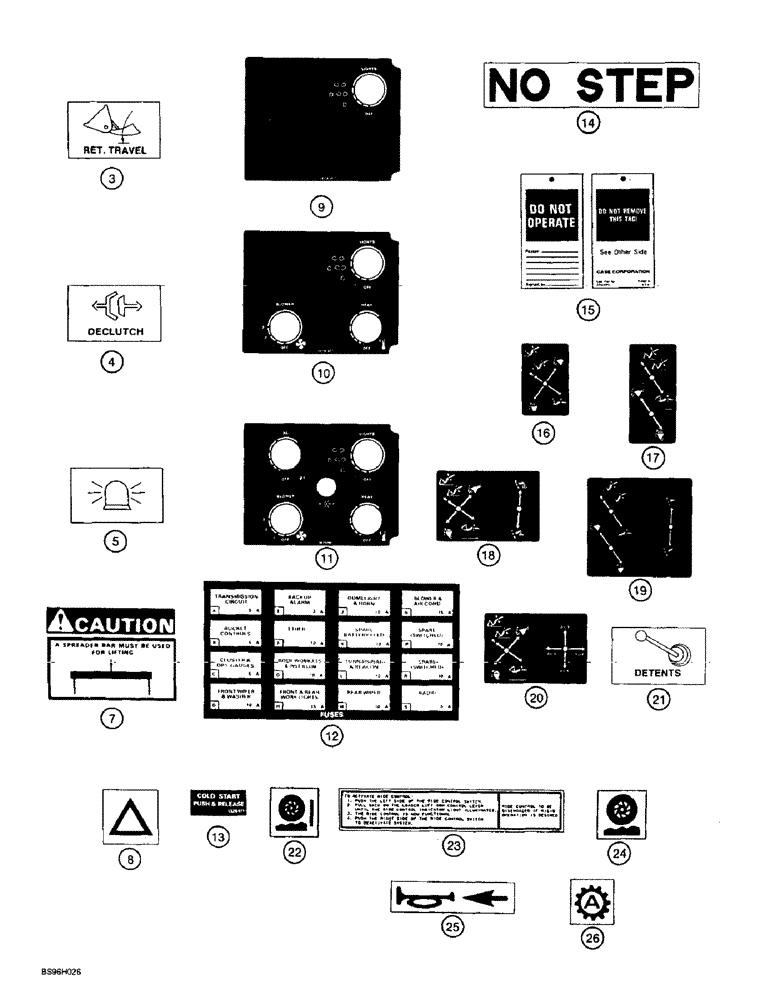

Запчасти Case 721B (9-102) - DECALS (09) - CHASSIS/ATTACHMENTS

3

A187693

IDEOGRAM

DECAL - return to travel, bucket

1шт.

4

A187696

IDEOGRAM

DECAL - declutch selector

1шт.

5

245917C1

DECAL

DECAL - rotating beacon

1шт.

7

321-3574

DECAL

- Caution, a spreader bar must be used for lifting

3шт.

8

245916C1

DECAL

DECAL - hazard switch

1шт.

9

1977820C1

DECAL

- environmental, canopy models

1шт.

10

1977818C1

DECAL

- environmental, cab models with heater

1шт.

11

1977819C1

DECAL

- environmental, cab models with heater and air conditioning

1шт.

12

1990800C2

DECAL

- fuses, cab and canopy models

1шт.

13

L126411

DECAL

- cold start, models with tan cabs or canopies

1шт.

13

179979A1

DECAL

- cold start, models with gray or special painted cabs or canopies

1шт.

13

278925A1

DECAL

- cold start

1шт.

14

H239079

DECAL

- no step, located on air conditioning condenser

1шт.

15

321-4614

TAG

- do not operate

1шт.

16

256421A1

DECAL

- loader control, single lever remote control valve with two spool valve, see figure 8-62, replaces 1977319C3 decal

1шт.

17

256420A1

DECAL

- loader control, dual lever remote control valve with two spool valve, see figure 8-64, replaces 1977651C3 decal

1шт.

18

256423A1

DECAL

- loader control, single lever and auxiliary single lever remote control valves with three spool valve, see figure 8-68, replaces 1977321C3 decal

1шт.

19

256422A1

DECAL

- loader control, dual lever and auxiliary single lever remote control valves with three spool valve, see figure 8-70, replaces 1977320C3 decal

1шт.

20

256424A1

DECAL

- loader control, two single lever remote control valves with four spool valve, see figure 8-74, replaces 1977322C3 decal

1шт.

21

117632A1

SYMBOLS

DECAL - detent

1шт.

22

191145A1

DECAL

- ride control, on

1шт.

23

133448A1

DECAL

- ride control instructions

1шт.

24

304083A1

DECAL

- ride control, replaces 191146A1 decal

1шт.

25

195274A1

DECAL

- horn

1шт.

26

242631A1

SYMBOLS

DECAL - auto shift, Start Serial: JEE0052701

1шт.

27

242333A1

DECAL - quality assurance, not shown

1шт.

28

279401A1

DECAL

- Case, not shown

1шт.
