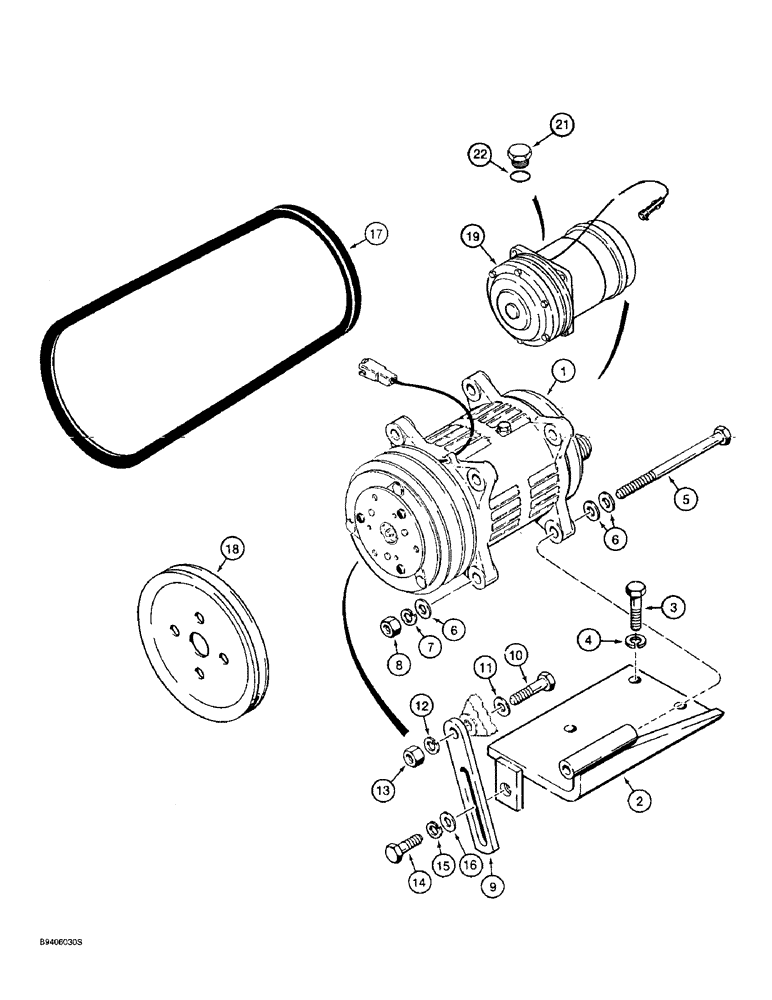

Запчасти Case 721B (9-092) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list figure 9-94, Serial Range: -JEE0040380

1шт.

2

84715C1

BRACKET

SUPPORT - compressor mounting

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

84716C1

SUPPORT

STRAP - adjusting

1шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

825-1410

NUT,M10, Cl 8

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

S82985

V-BELT,36.70" L

BELT , Compressor drive 36.70" L

1шт.

18

A189155

PULLEY

- compressor drive

1шт.

1990760C1

COMPRESSOR

ASSEMBLY - air conditioning, if used, Includes: Ref. 19 - 22, Start Serial: JEE0040380

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

721B Start Serial JEE0040380 (3/93 - 12/98), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

COMPRESSOR - air conditioning, components not serviced separately, order 1990760C1 compressor assembly

1шт.

20

138886A1

CLUTCH

- compessor, not shown

1шт.

21

A49667

PLUG

- hex, oil filler

1шт.

22

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.
