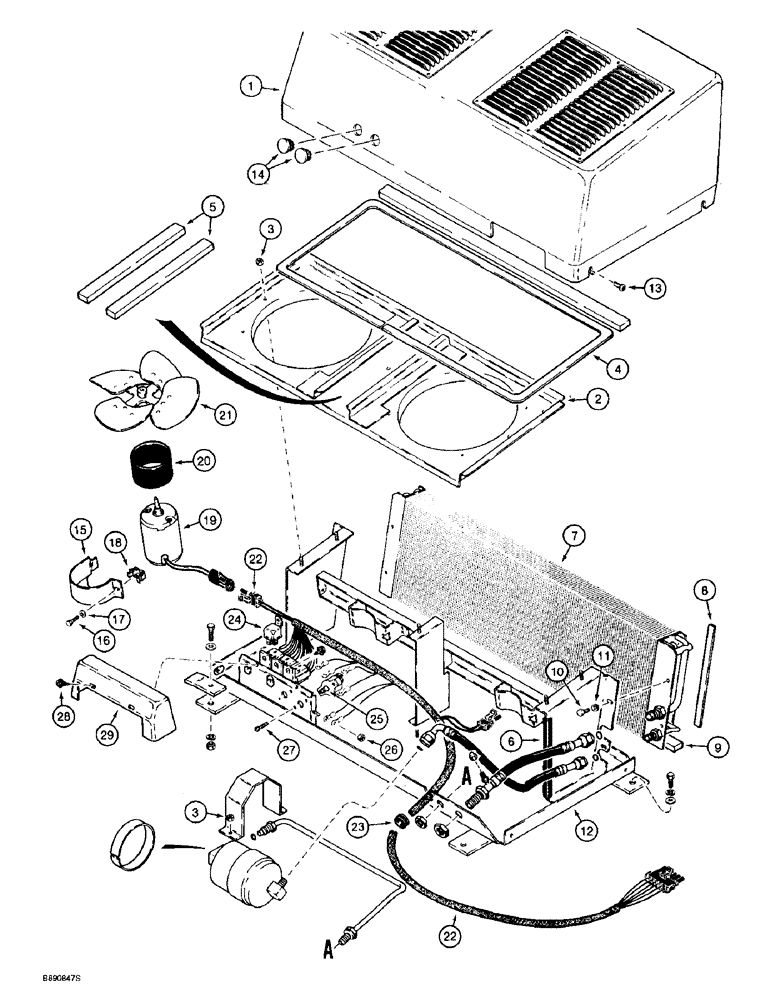

Запчасти Case 721B (9-088) - AIR CONDITIONING CONDENSER AND MOUNTING, CONDENSER HARNESS W/ THREE RELAYS (09) - CHASSIS/ATTACHMENTS

97182C4

CAPACITOR

CONDENSER ASSEMBLY - air conditioning, no longer available, order 97182C6 condenser, parts list figures 9-91A and 9-91C, Includes: Ref. 1 - 29 and 30 - 41 on Fig. 9-90

1шт.

1

1977874C1

COVER ASSY

COVER - condenser unit, brown

1шт.

1

178303A1

COVER ASSY

- condenser unit, tan, 178301A1 condenser

1шт.

2

1974863C2

PROTECTOR

SHROUD - fan

1шт.

3

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

7шт.

4

1977898C1

SEAL

SEAL - 2032 mm (80 inch) long, cut from 198573C1 bulk seal, see below, shroud perimeter

1шт.

5

1977899C1

SEAL

SEAL - 1045 mm (41-1/8 inch) long, cut from 198573C1 bulk seal, see below, shroud baffle

2шт.

6

1327979C1

MOLDING

TRIM - edge, 152 mm (6 inch) long, cut from 1330108CX bulk trim, see below, edge

1шт.

7

97213C2

CONDENSER

- air conditioning

1шт.

8

1977901C1

SEAL

SEAL - 227 mm (9 inch) long, cut from 198573C1 bulk seal, see below, condenser flange

2шт.

9

1977900C1

SEAL

SEAL - 787 mm (31 inch) long, cut from 1977902CX bulk seal, see below, lower condenser

2шт.

10

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

- machine, hex head, 1/4 NC x 1/2 inch

4шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

1974859C1

SUPPORT

PLATE - support, no longer available, order 138583A1 plate, Ref. 12, shown on figure 9-91A

1шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch

4шт.

14

205-104

HOLE PLUG BUTTON,1"

BUTTON, HOLE PLUG, , Replaces H435478 1"

2шт.

15

1975923C1

MOUNTING CLIP

BRACKET - mounting, fan

2шт.

16

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- machine, hex washer head, 1/4 inch NC x 1 inch

2шт.

17

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

2шт.

18

131-852

SPRING NUT,Ret, 1/4"-20

Speed grip Ret, 1/4"-20

2шт.

19

1977427C2

MOTOR, ELECTRIC

MOTOR - fan, 24 volt

2шт.

19

1977427C2R

REMAN-ELECTRIC MOTOR

721B

2шт.

19

1977427C2C

CORE-ELECTRIC MOTOR

Return Number

2шт.

20

D83118

ISOLATOR

INSULATOR - motor

2шт.

21

1977731C1

FAN

BLADE - fan, 9 inch diameter, condenser

2шт.

22

A187775

HARNESS

- condenser, no longer available, order 137333A1 shown on figure 9-91A, Ref. 22

1шт.

23

117963

GROMMET,1/2" ID x 1 1/16" x .062"

- rubber, 1/2 x 1-1/16 x 5/16 inch

1шт.

24

198161A1

RELAY

- mini, 24 volt, replaces A186288

2-3шт.

25

A187825

RELAY

BREAKER - circuit, 10 ampere

2шт.

26

225-14210

NUT,#10-32

1шт.

27

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- machine, pan Phillips, No. 8 NC x 3/4 inch

4шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

4шт.

29

1977847C1

COVER

- relay

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

198573C1

STRIP

SEAL - bulk, 13 (1/2) wide x 15240 mm (600 inch) long

1шт.

1977902CX

SEAL

- bulk, 25 (1) wide x 15240 mm (600 inch) long continued on next figure

1шт.
