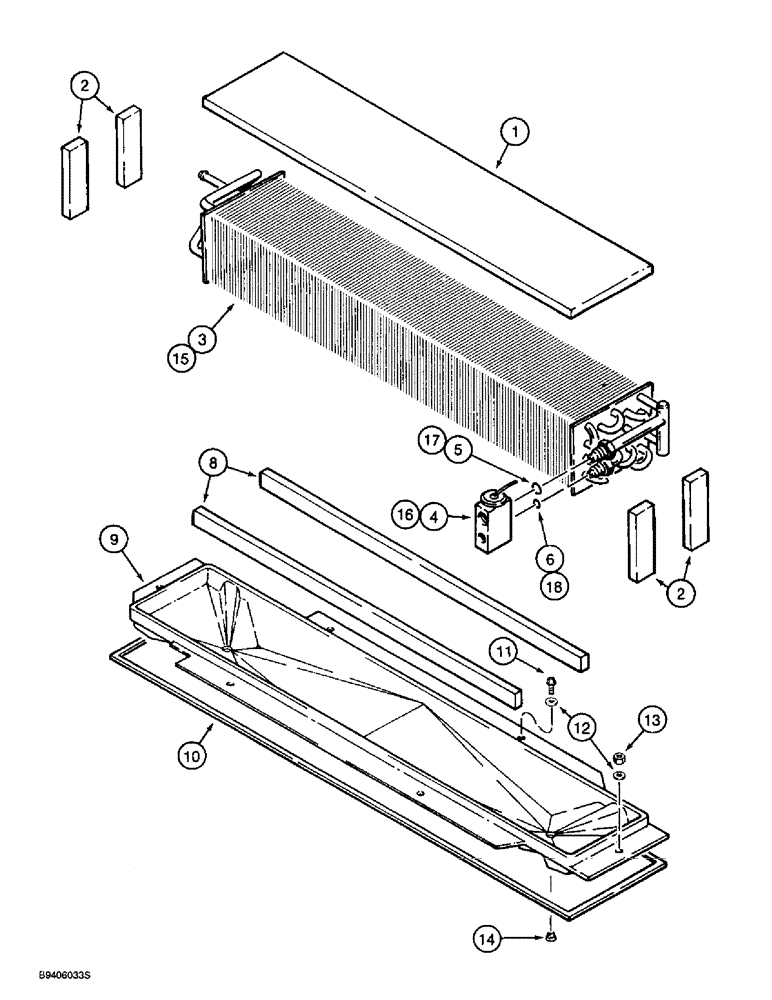

Запчасти Case 721B (9-080) - HEATING AND AIR CONDITIONING CORE (09) - CHASSIS/ATTACHMENTS

1

1276337C2

RUBBER INSULATOR

SEAL - 266 (10-1/2) x 970 (38-1/8) x 13 mm (1/2 inch) thick, cut from 1327515C2 bulk seal, see below, core, upper

1шт.

2

1340075C2

SEAL

SEAL - 25 (1) x 130 (5-1/8) x 38 mm (1-1/2 inch) thick, cut from 1999750C1, see below, core, end

4шт.

3

98369C3

RADIATOR

CORE ASSEMBLY - air conditioning and heater, see Ref. 7 for core used on models with heater only, Includes: Ref. 4 - 6, Serial Range: -JEE0040380

1шт.

4

98370C3

VALVE

- expansion

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

7

1331025C1

CORE

- heater, models with heater only, not shown

1шт.

8

98357C1

SEALING STRIP

- 13 (1/2) x 790 (31-3/32) x 25 mm (1 inch) thick, cut from 98390C1 seal, see below, attaches to bottom of drip pan

2шт.

9

1339577C3

PAN

- drip, condensation

1шт.

10

1977907C1

SEAL

- 2213 mm (87-1/8 inch) long, cut from 187874C2 bulk seal, see below, attaches to floor under condensation pan

1шт.

11

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

12

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

6шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

15

1990757C2

EVAPORATOR

CORE ASSEMBLY - air conditioning and heater, see Ref. 7 for core used on models with heater only, Includes: Ref. 16 - 18, Start Serial: JEE0040380

1шт.

16

1990756C2

VALVE

- expansion

1шт.

17

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

18

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

1327515C2

INSULATOR

SEAL - bulk sheet, 1372 (54) x 3048 (120) x 13 mm (1/2 inch) thick

1шт.

1999750C1

SEAL

FOAM - adhesive backed, bulk sheet, 38 (1-1/2) wide x 15240 (600) long x 15 mm (1 inch) thick

1шт.

98390C1

SEALING STRIP

SEAL - 13 (1/2) wide x 1000 (39-3/8) long x 25 mm (1 inch) thick

1шт.

187874C2

SEAL

SEAL - bulk, adhesive-backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.
