Запчасти Case 721B (9-078) - HEATING AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS

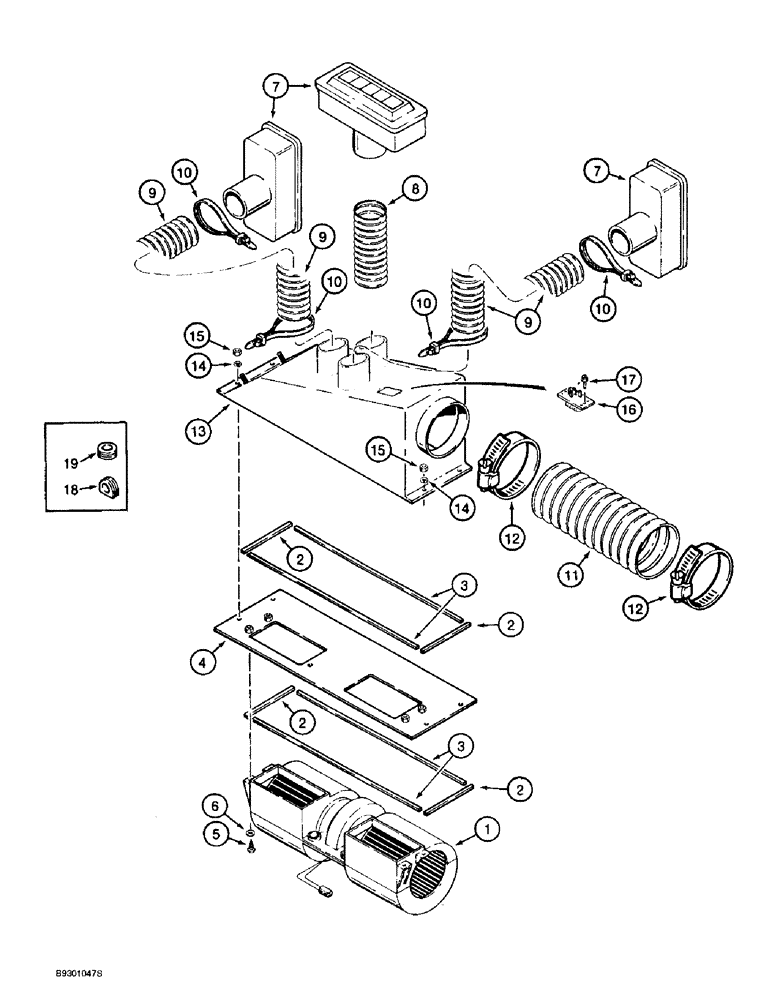

Схема запчастей Case 721B - (9-078) - HEATING AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS
15
10
2
9
1
10
8
9
14
12
16
3
11
12
19
4
9
13
2
7
10
14
17
6
15
2
5
10
3
2
18
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list figure 4-60

1шт.

2

1340071C1

SEAL

SEAL - 200 mm (7-7/8 inch) long, cut from 187874C1 bulk seal, blower plate, upper, see below

4шт.

3

1340072C1

SEAL

SEAL - 530 mm (20-7/8 inch) long, cut from 187874C1 bulk seal, blower plate, lower, see below

4шт.

4

1339685C3

PLATE ASSY.

PLATE - blower mounting

1шт.

5

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch, if used

4шт.

7

1971238C1

VENT

LOUVER - cab, and air conditioning

3шт.

8

1999765C1

HOSE

- 163 mm (6-13/32 inch) long, cut from 236559A1 bulk hose, see below, air flow, upper, at center louver

1шт.

9

1999754C1

AIR HOSE

HOSE - 535 mm (21-1/16 inch) long, cut from 236559A1 bulk hose, see below, air flow, upper, at side louvers

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

11

1999763C1

HOSE

- 305 mm (12 inch) long, cut from 1999759C1 bulk hose, see below, air flow, side

1шт.

12

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adj, 4-7/8 - 5-3/4 inch diameter, side air hose

2шт.

13

1999767C1

DUCT

- plenum, pressure chamber, heat and air

1шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

4шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

16

F44903

RESISTOR

- blower speed, 24 volt

1шт.

17

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

2шт.

18

1546537C1

GROMMET

- vertical, blower mounting plate

1шт.

19

96901C1

GROMMET

- blower motor wire, horizontal, blower mounting plate

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.

236559A1

HOSE,63.5mm ID x 1270mm L

- Replaces 1999764C1 63.50 mm ID x 15240.00 mm Bulk

1шт.

1999759C1

PLASTIC-RUBBER TUBE

HOSE - bulk, 127 (5) ID x 7620 mm (300 inch) long

1шт.

Выбрано товаров: 22
