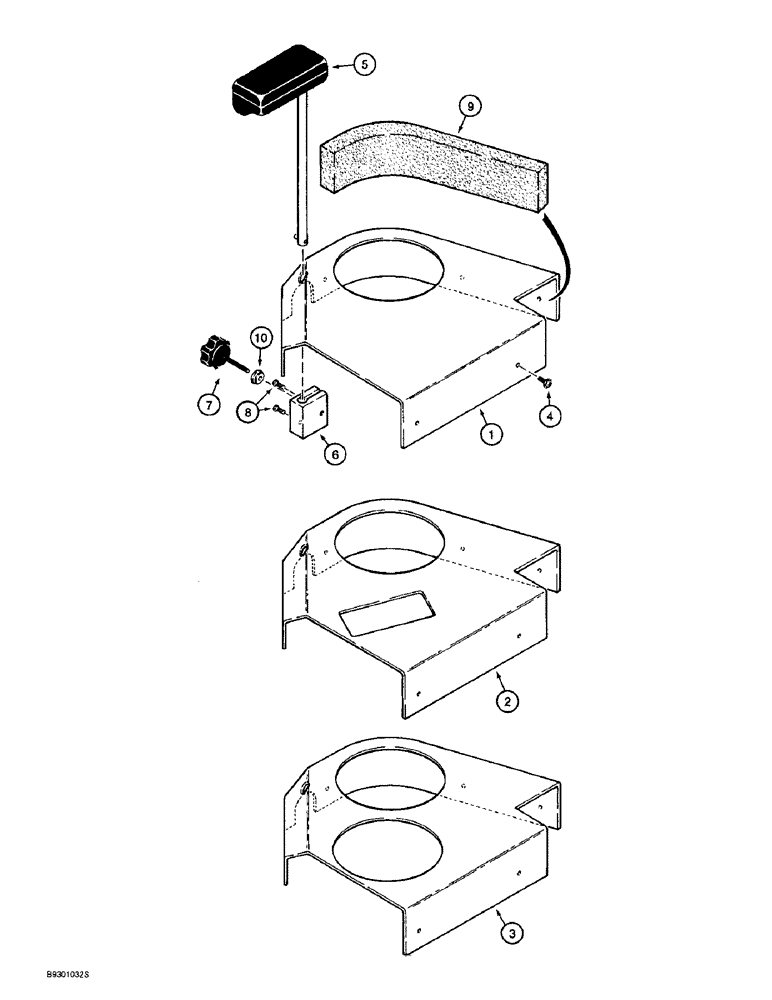

Запчасти Case 721B (9-064) - CONSOLE COVERS AND WRIST SUPPORT, COVERS - TAN (09) - CHASSIS/ATTACHMENTS

1

1977942C2

BRACKET

COVER - console, models with single or dual lever remote control valve

1шт.

2

1977944C2

BRACKET

COVER - console, models with single or dual lever remote control and single lever auxiliary control

1шт.

3

1977943C2

BRACKET

COVER - console, models with two single lever remote controls

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch, replaces F64519

5шт.

1

179359A1

DOOR COVER

COVER - console, models with single or dual lever remote control valve, gray

1шт.

2

179357A1

DOOR COVER

COVER - console, models with single or dual lever remote control and single lever auxiliary control, gray

1шт.

3

179358A1

BRACKET

COVER - console, models with two single lever remote controls, gray

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch, replaces F64519 screw, gray

5шт.

5

1338223C1

PAD

- wrist support, brown, adjustment knob

1шт.

5

179356A1

PADDING

PAD - wrist support, black, adjustment knob

1шт.

6

1338240C1

BASIC BLOCK

BLOCK - adjustment, wrist support knob

1шт.

7

1999723C1

BUTTON

KNOB - adjustment, wrist support

1шт.

8

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch, Wrist support adjustment knob

2шт.

9

1981910C1

INSULATION,61mm W x 365mm L x 25mm Thk

- adhesive-backed, 365 mm (14-3/8 inch) long, models with canopy, wrist support adjustment knob

1шт.

10

700711545

CUP WASHER

SPACER - cupped, adjustment knob, wrist support

1шт.
