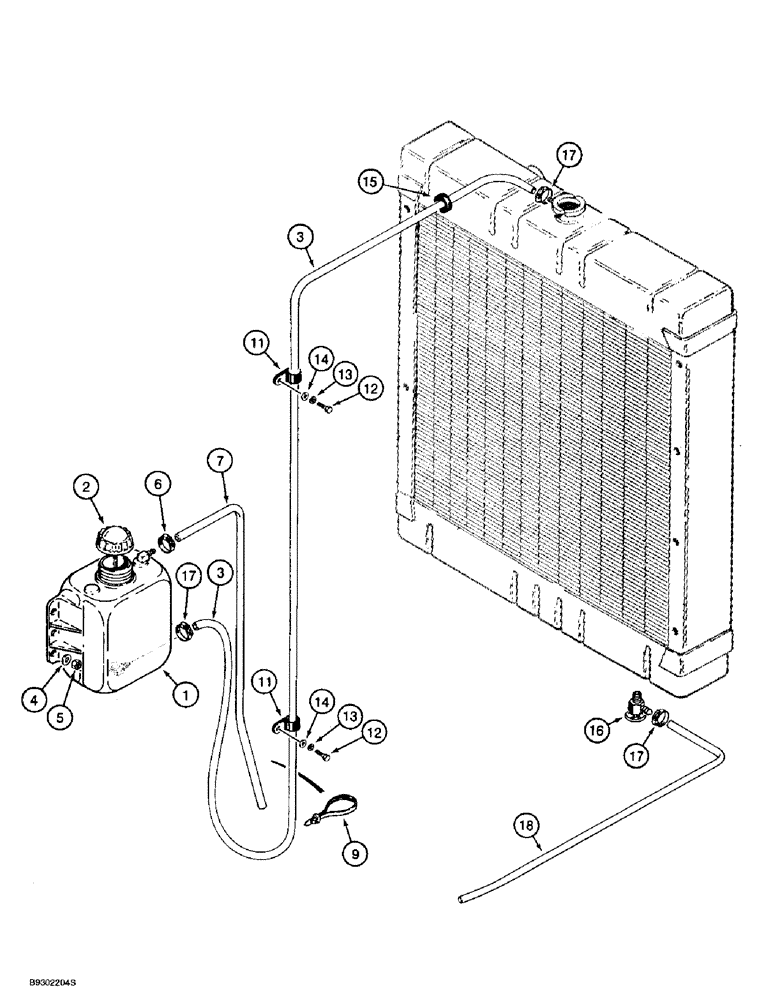

Запчасти Case 721B (2-08) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

103846A1

CONTAINER

RESERVOIR - coolant recovery, 3.7 liters

1шт.

2

1547924C1

CAP

- recovery bottle

1шт.

3

L125870

HOSE,7.9 mm ID x 1370.00 mm, SAE 30R6

Radiator to Reservoir 7.9 mm ID x 1370.00 mm, SAE 30R6

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type

1шт.

7

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

Reservoir Drain 7.9 mm ID x 1219.00 mm, SAE 30R1

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Reservoir hose to radiator guard 9/16", Insul, 3/8" Bolt

2шт.

12

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

15

248-13107

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

Rubber 3/4" ID x 1 1/16" Groove Dia, Str Cut

1шт.

16

A27862

COCK, DRAIN

VALVE - drain, radiator

1шт.

17

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type

3шт.

18

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, , Radiator Drain, Cut From P/N A21561X Bulk Hose 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.
