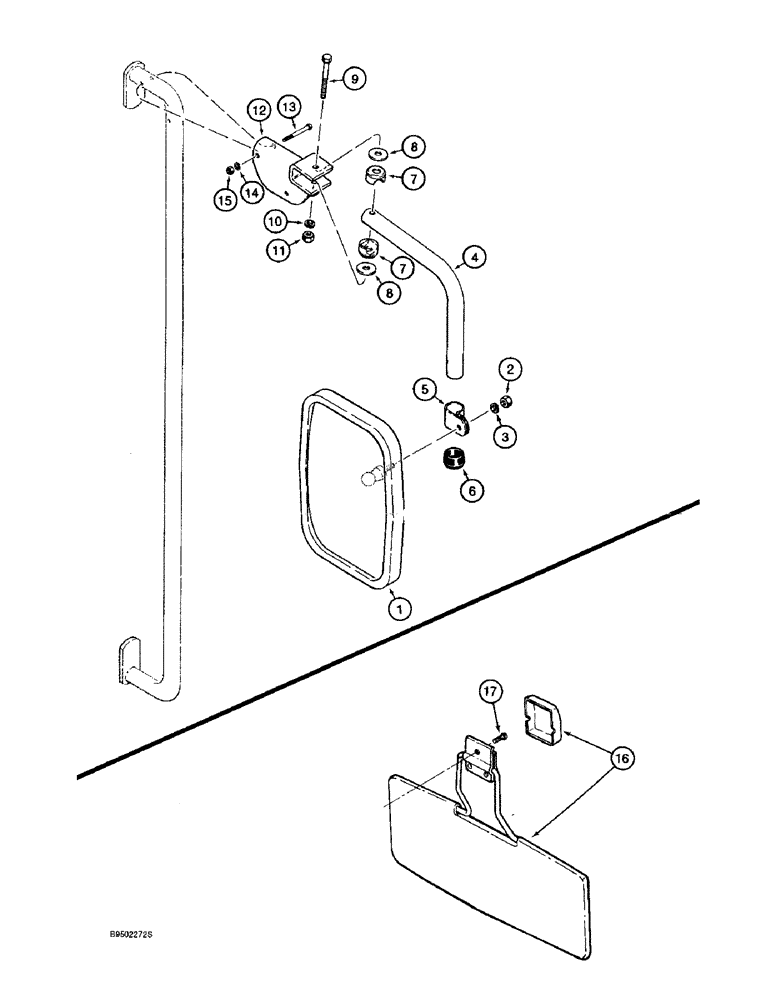

Запчасти Case 721B (9-060) - OUTER MIRROR AND SUN VISOR, OUTER MIRROR (09) - CHASSIS/ATTACHMENTS

1

1283403C1

MIRROR

- rear view

2шт.

2

825-1410

NUT,M10, Cl 8

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

1977805C1

ARM

- mirror mounting

2шт.

5

1977834C1

MOUNTING CLIP

CLAMP - mirror mounting

2шт.

6

1977833C1

CAP

- plug

2шт.

7

1977831C1

MOUNTING CLIP

CLAMP - mirror

4шт.

8

1977832C1

WASHER

- brass, special

4шт.

9

113-2267

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

192-81003

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

12

1977802C1

SUPPORT

BRACKET - mirror mounting

2шт.

13

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

14

192-81007

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

129-119

NUT,1/4"-20, G5

4шт.

16

E47027

VISOR, SUN

VISOR - sun shade

1шт.

17

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan head, No. 10 NC x 3/4 inch, sun visor

3шт.
