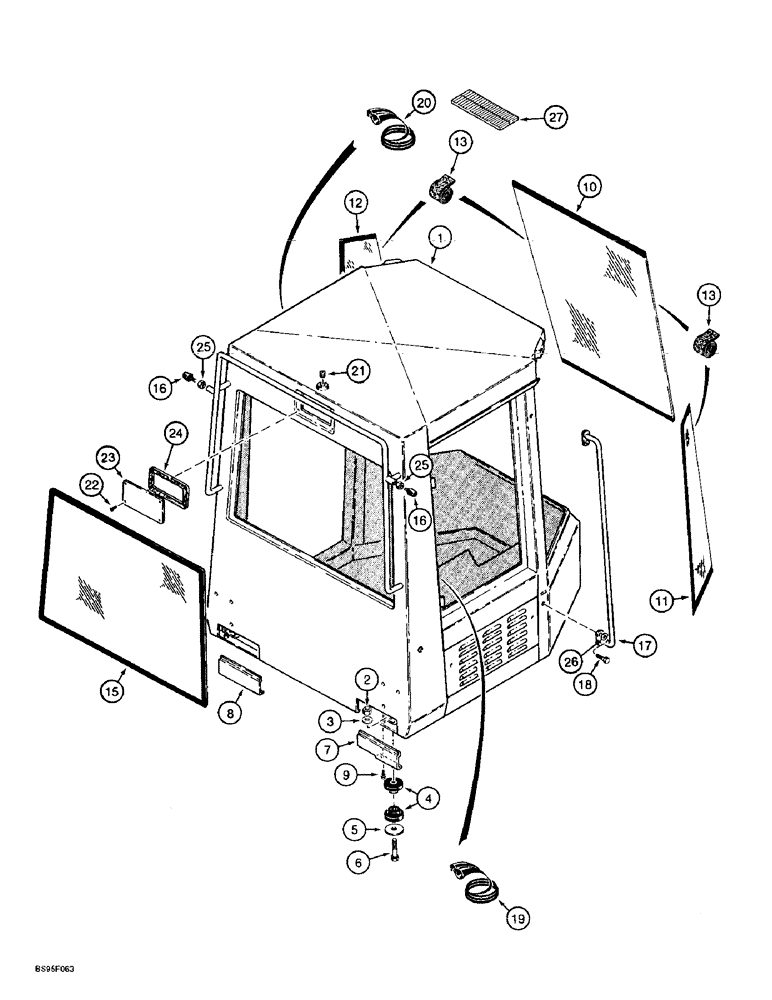

Запчасти Case 721B (9-056) - CAB MOUNTING AND GLASS - TAN (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY ROPS, machinery item, order from Machinery Price List

1шт.

1a

197028A1

CAB

ASSEMBLY shell, service replacement, tan

1шт.

The cab shell includes Ref. 10 - 27 on this figure, Ref. 8 - 11 on figure 4-18, Ref. 1 - 24, 39 and 40 on figure 4-56, Ref. 6 and 29 (353-411) on figure 9-63A, Ref. 2 - 6, 20-22A on figure 9-68, and all Ref. on figures 9-70 - 9-74. Cab shell is not heater or air conditioning dependent. It does not contain steering pedestal, harnesses, seat, floor mats or any plastics and vinyl, except for the center headliner.

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch hardened

4шт.

4

R54331

HITCH DAMPER

MOUNT - rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

- spacer, special

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

1977687C3

COVER

- rear, right-hand mounting access

1шт.

8

1339928C2

COVER

- rear, mounting access

1шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

4шт.

10

108425A2

GLASS

- front, center, also order Ref. 13 and 14

1шт.

11

108427A2

GLASS

- front, right-hand side, also order Ref. 13 and 14

1шт.

12

108426A2

GLASS

- front, left-hand side, also order Ref. 13 and 14

1шт.

13

114327A1

TAPE

- polyester, 1350 mm (53-1/8 inch) long

2шт.

14

114328A1

SEALANT

SESALANT - silicone, used with Ref. 13 tape, not shown

1шт.

15

1340425C1

GLASS,CAB

GLASS - rear

1шт.

16

N7673

BUMPER

- rubber

2шт.

17

1339767C2

HANDLE

HANDRAIL - front

2шт.

18

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 x 1 inch

4шт.

19

1344165C1

SEAL

SEAL - 3510 mm (138-3/16 inch) long, window, right-hand cab

1шт.

20

1987253C1

DOOR SEAL

- 4191 mm (165 inch) long, door, left-hand cab

1шт.

21

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- hex socket, 1 inch PT, plastic

1шт.

22

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

23

1345260C1

PLATE

COVER - rear wiper mounting hole, includes seal, use on units without rear wipers, if used, Includes: Ref. 24

1шт.

24

1345074C1

GASKET,5mm Thk

- cover, one piece

1шт.

25

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

26

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

27

97268C1

SPACER

- bonded glass

6шт.
