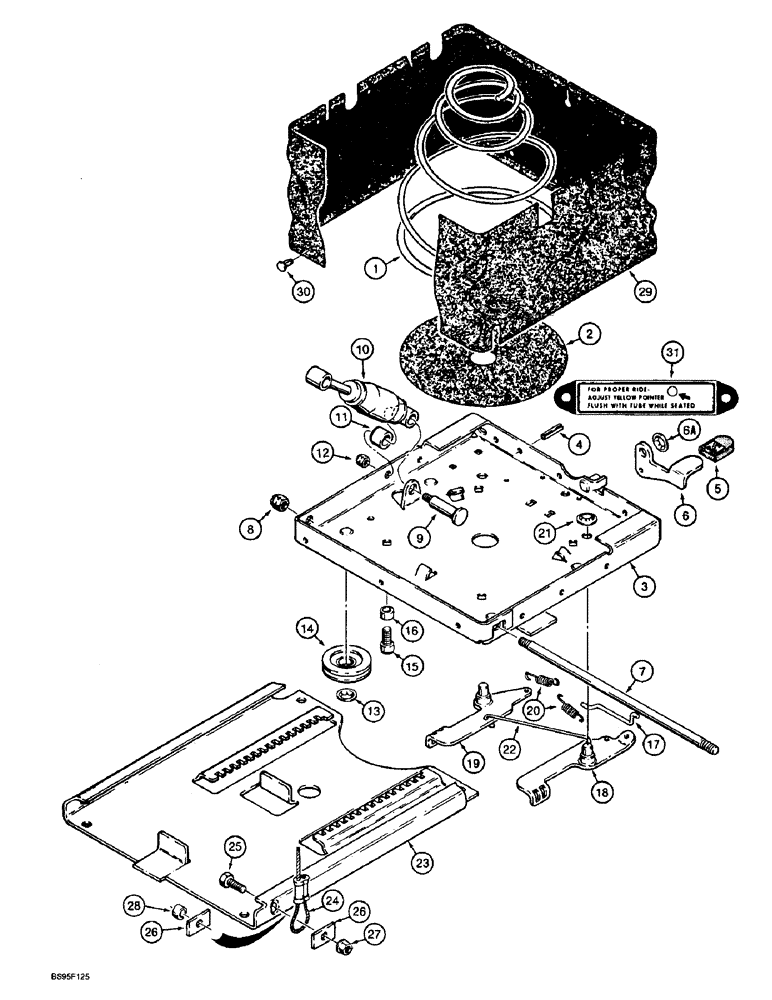

Запчасти Case 721B (9-055G) - SUSPENSION SEATS - GRAY (09) - CHASSIS/ATTACHMENTS

177639A1

SEAT

ASSEMBLY - suspension, vinyl, cab or canopy models, includes parts on figures 9-55C - 9-55G, Includes: Ref. 1 - 30

1шт.

177638A1

SEAT

ASSEMBLY - suspension, cloth, cab models, includes parts on figures 9-55C - 9-55E, Includes: Ref. 1 - 30

1шт.

130676A1

KIT

KIT - spring, also includes (2) 230-4218 nuts and (1) 230-4216 nut, not shown, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SPRING - conical

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

2

NSS

NOT SOLD SEPARAT

PAD - spring

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

3

188248A1

HOUSING

- lower, lower

1шт.

4

38-11616

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

5

D82819

CAP

- slide lever

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

6

D82817

LEVER

- slide

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

6a

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

7

112884A1

SHAFT,368mm L

- bearing

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

64918C1

SHOCK ABSORBER

KIT - shock absorber, Includes: Ref. 8 - 12

1шт.

8

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - shoulder, special

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

10

NSS

NOT SOLD SEPARAT

ABSORBER - shock, seat

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - shock absorber

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

11a

NSS

NOT SOLD SEPARAT

SPACER - shock absorber kit, not shown

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

1977726C1

SLIDE

KIT - slide track, no longer available, Includes: Ref. 13 and 14

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

14

D82820

ROLLER

- slide track

4шт.

15

165-181

BOLT,1/2" - 13 x 7/8"

- hex socket, 1/2 NC x 7/8 inch

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

16

N6713

SPACER

- bolt

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

17

D82814

ROD

- latch

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

188246A1

KIT

- slide latch, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

LATCH - right-hand

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

19

NSS

NOT SOLD SEPARAT

LATCH - left-hand

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

20

D82815

SPRING

- latch

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

22

D82816

LINK

- latch

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

23

188249A1

PLATE

- slide base, seat

1шт.

188247A1

KIT

- tether cable, also includes Ref. 22 - 26 on figure 9-55A, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

CABLE - plate

2шт.

25

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

26

NSS

NOT SOLD SEPARAT

WASHER - special

4шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER - cable mounting

2шт.

1977727C1

BOOT

KIT - vinyl cover, Includes: Ref. 29 - 31

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

29

N6295

BOOT

COVER - vinyl

1шт.

30

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RETAINER - plastic, 1/4 hole size x 1/2 inch head diameter

21шт.

31

A47778

DECAL

- for proper ride

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, includes Ref. 1, 2, 4 - 6, 7 - 11, 12, 15 - 20, 22, slide track kit, vinyl cover kit

1шт.
