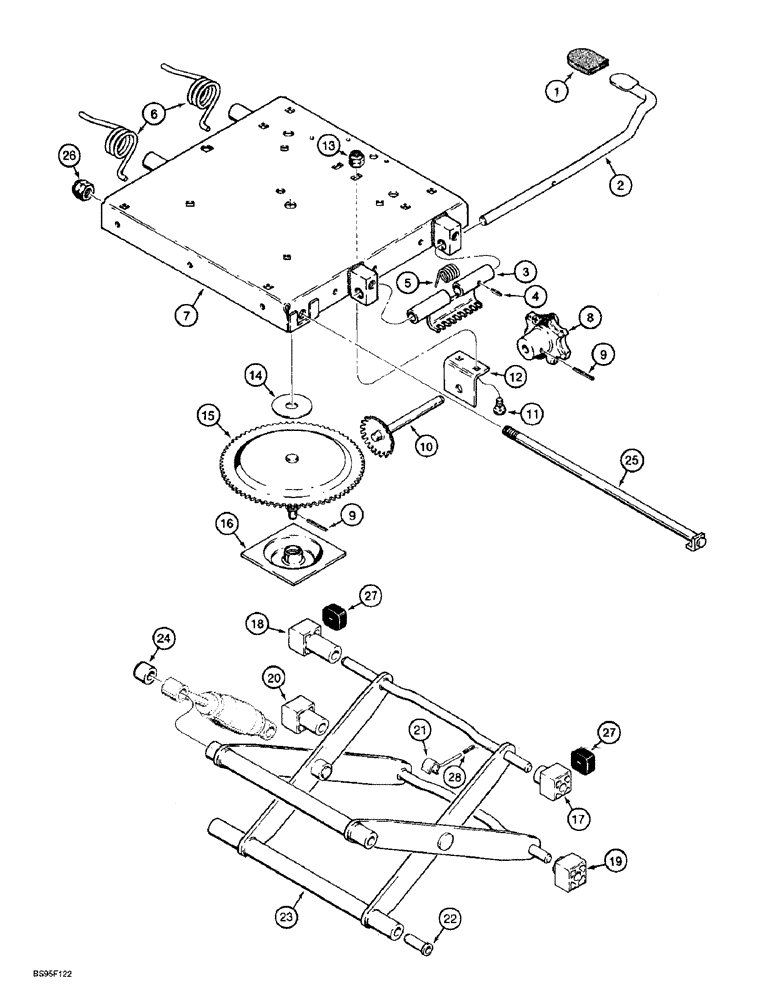

Запчасти Case 721B (9-052) - SUSPENSION SEATS - BROWN (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, caab or canopy models, includes parts on figures 9-50 - 9-54, Includes: Ref. 1 - 28

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models, includes parts on figures 9-50 - 9-54, no longer available, order 1954778C1, Includes: Ref. 1 - 28

1шт.

1

A45472

CAP

- height adjustment lever

1шт.

2

D82857

LEVER

- height adjustment

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

3

130672A1

KIT

- height adjustment, replaces A47381 latch

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

4

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

5

A47382

SPRING

- latch

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

6

A47384

SPRING

- housing, replaces D82863

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

7

A47761

PLATE

HOUSING - upper, replaces N6870

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

8

123969A1

SEAT ACCESSORY

Kit - Knob and shaft assy, Incl handle, decals, and shaft portion of Ref 10, Replaces 118578C1 knob, Incl Ref 9

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

9

38-31016

PIN,5/32" x 1", Coiled

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

130674A1

SET

KIT - weight adjustment, includes

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

10

A45513

GEAR

SHAFT - gear, adjustment, weight, no longer available, order 130674A1 kit

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

11

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

12

A45531

BRACKET

- shaft

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

13

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

14

D82834

WASHER

- thrust, no longer available separately, order 130674A1 kit which includes Ref. 10 shown above

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

15

A45505

GEAR

- suspension plate

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

16

A45504

SPRING WASHER

- spring

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

1977725C1

SLIDER

KIT - slider block, Includes: Ref. 17 - 22

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

17

A45517

BLOCK

- slider, 2-9/16 inch wide

1шт.

18

A45515

BLOCK

- slider, 1-9/16 inch wide

1шт.

19

A45516

BLOCK

- slider, 2-3/16 inch wide

1шт.

20

A45512

BLOCK

- slider, 1-3/16 inch wide

1шт.

21

130673A1

SET OF PARTS

KIT - height indicator, replaces A49160

1шт.

22

180594A3

KIT

KIT - rollers and bearings, includes (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers, replaces 1990644C2 tube

4шт.

23

A47759

ARM

- suspension

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

24

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

25

112884A1

SHAFT,368mm L

- bearing

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

26

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

27

A45054

BUMPER,Neoprene

- seat

2шт.

Part of Seat Kit, P/N 1977722C1

1шт.

28

38-11010

LOCK PIN,5/32" x 5/8", Slotted

Pin, 5/32" x 5/8", Slotted

1шт.

Part of Seat Kit, P/N 1977722C1

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, includes Ref. 2 - 16 and 23 - 28

1шт.
