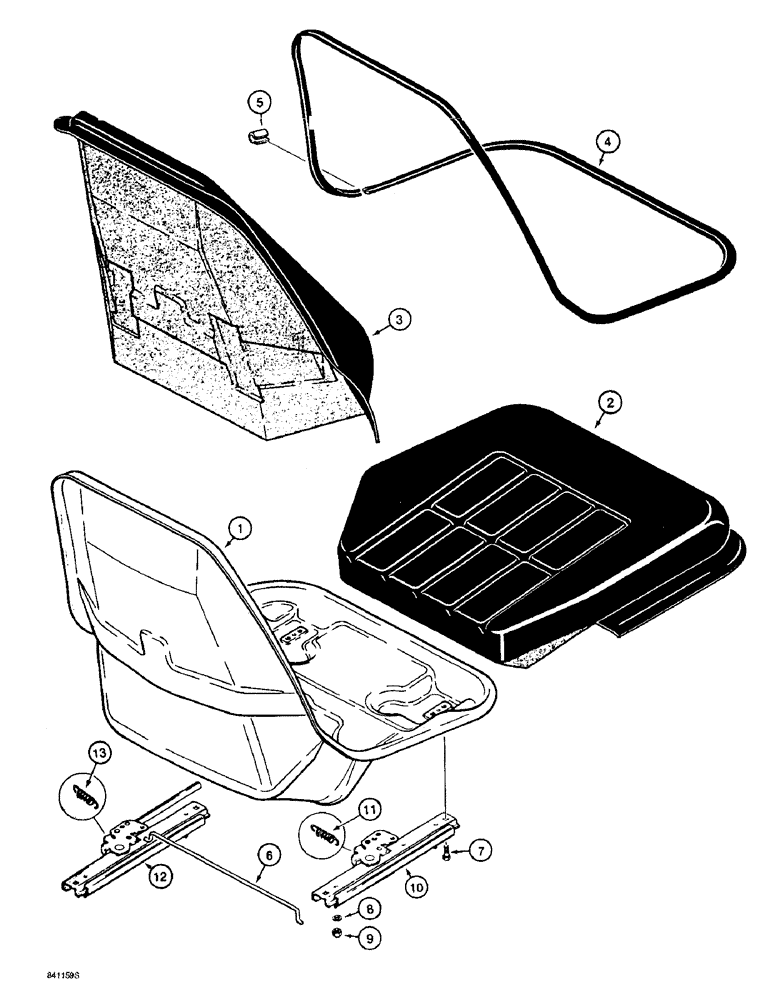

Запчасти Case 721B (9-048) - NON-SUSPENSION SEAT, BROWN NON-SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

L108783

SEAT

ASSEMBLY - non-suspension, brown, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

KIT - seat cushion, includes N7802 clip kit, brown vinyl, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

KIT - backrest cushion, includes N7802 clip kit, brown vinyl, includes N7802 clip kit, see below

1шт.

4

176924A1

SET OF PARTS

TRIM - edging, cushion and shell, edge, replaces N14614

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

L35492

ROD

- connecting

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

A64818

ADJUSTER

SLIDE - seat, right-hand, Includes: Ref. 11

1шт.

11

L35503

SPRING

- slide

1шт.

12

D59688

SLIDE

- seat, left-hand, with handle, Includes: Ref. 13

1шт.

13

L35503

SPRING

- slide

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 and 6 additional narrow clips

1шт.

178765A1

SEAT

ASSEMBLY - non-suspension, gray, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - gray non-suspension seat

1шт.

2

176925A1

KIT

- seat cushion, gray, includes N7802 clip kit, vinyl, see below, replaces 190875A1, non-suspension seat

1шт.

3

176926A1

KIT

- backrest cushion, gray, includes N7802 clip kit, vinyl, see below, replaces 190874A1, non-suspension seat

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - strip, cushion and shell, gray non-suspension seat

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below, gray non-suspension seat

1шт.

6

L35492

ROD

- connecting, gray non-suspension seat

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch, Gray non-suspension seat

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , gray non-suspension seat 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Gray non-suspension seat

4шт.

10

A64818

ADJUSTER

SLIDE - right-hand, gray non-suspension seat, Includes: Ref. 11

1шт.

11

L35503

SPRING

- slide, gray non-suspension seat

1шт.

12

D59688

SLIDE

- seat, left-hand, with handle, gray non-suspension seat, Includes: Ref. 13

1шт.

13

L35503

SPRING

- slide, gray non-suspension seat

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 and 6 additional narrow clips, gray non-suspension seat

1шт.
