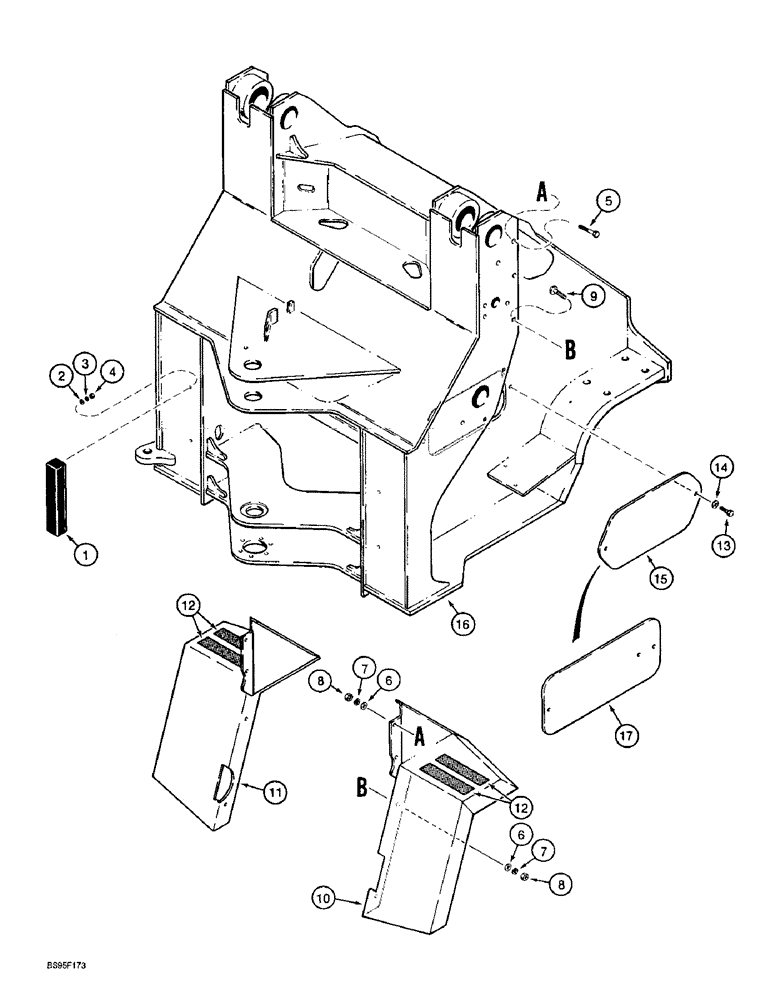

Запчасти Case 721B (9-040) - FRONT FRAME AND FENDERS, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

1

L127077

HITCH DAMPER

BUMPER - chassis

2шт.

2

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

4шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

10

123165A1S

SPLASH SHIELD

FENDER - front, right-hand, replaces L128918

1шт.

11

123164A1S

SPLASH SHIELD

FENDER - front, left-hand, replaces L128922

1шт.

12

D55216

PAD,2" x 9"

PAD - anti-skid, front fender

4шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

14

187563A1

SPACER

- 13 x 25 x 28 mm

4шт.

15

L119249

COVER

- access, front frame, no longer available, order L125240 cover, Ref. 17

2шт.

16

109470A1

CHASSIS

FRAME - front chassis

1шт.

17

L125240

LARGE PLATE

COVER - access, front frame

2шт.
