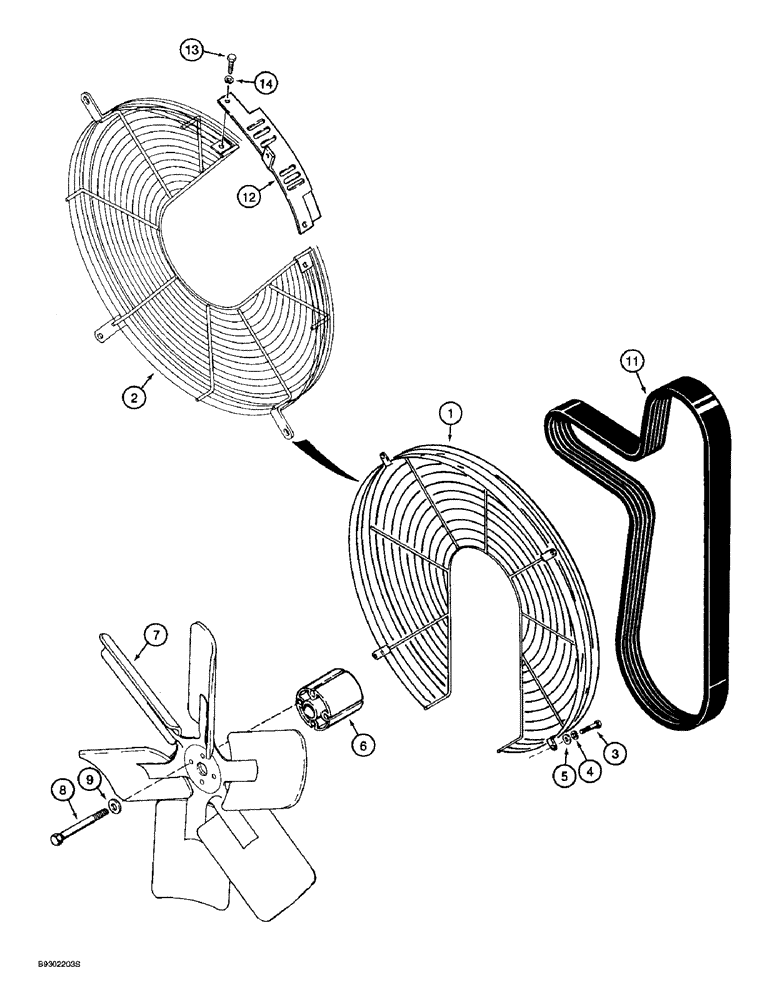

Запчасти Case 721B (2-06) - FAN AND FAN BELTS, PRIOR TO P.I.N. JEE0053200 (02) - ENGINE

1

L128444

GUARD

- fan, used on units without air conditioning

1шт.

2

L128108

GUARD

- fan, used on units with air conditioning

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

6

A184546

SPACER

- fan, 60 mm long

1шт.

7

A189402

FAN

- pusher

1шт.

8

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

11

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan 3.56 mm W x 1701.80 mm L, 8 Ribs

1шт.

12

L128384

BRACKET

STRAP - fan guard, used on units with air conditioning

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
