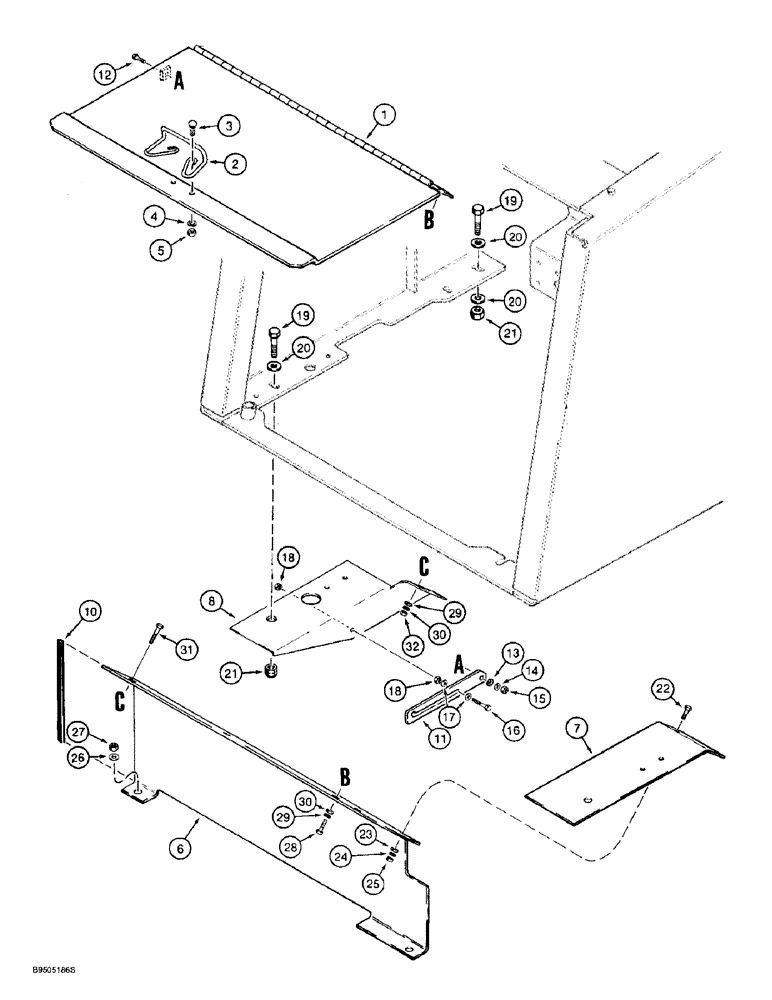

Запчасти Case 721B (9-036) - BATTERY COMPARTMENT COVERS (09) - CHASSIS/ATTACHMENTS

1

L127331

COVER ASSY

COVER - battery compartment

1шт.

2

L125636

HANDLE

- hold down

1шт.

3

11-310

CARRIAGE BOLT,Short NK, 3/16"-24 x 5/8", G2, Full Thd

BOLT, CARRIAGE, Short NK, 3/16"-24 x 5/8", G2, Full Thd

2шт.

4

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

225-14110

NUT,#10-24

2шт.

6

L128101

BAFFLE ASSY.

BAFFLE - battery compartment

1шт.

7

L128192

PLATE

- support, cover, right-hand

1шт.

8

L128172

PLATE

- support, cover, left-hand

1шт.

10

L127454

LINING

TRIM - edge, 220 mm, (8-3/4 inch) long, cut from F64277X bulk trim, see below, edge, left hand, if used

1шт.

11

L125491

LARGE PLATE

BRACKET - cover support

1шт.

12

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

13

S69662

WASHER

- flat, special

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

16

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

18

329-105

NUT,5/16"-18, G8

2шт.

19

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

4шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch

8шт.

21

232-14110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

22

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

27

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

28

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

3шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

31

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

F64277X

SEAL

TRIM - edge, bulk, 14478 mm (570 inch) long

1шт.
