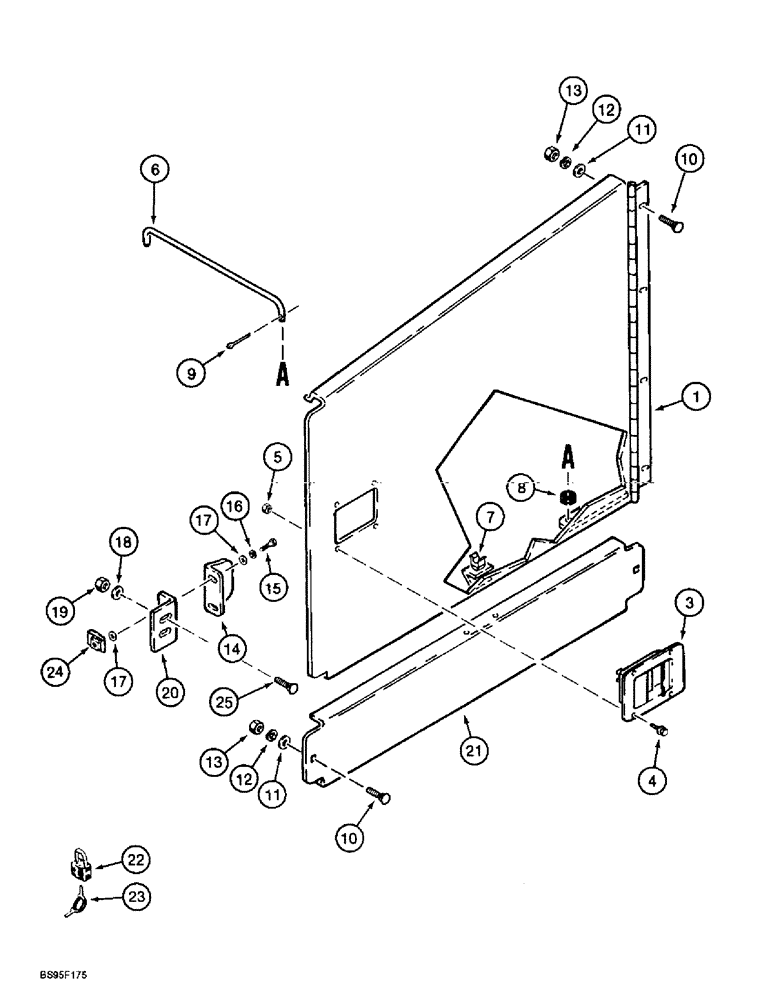

Запчасти Case 721B (9-032) - SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

L127685

DOOR

- hood side, right-hand

1шт.

2

L127686

DOOR

- hood side, left-hand

1шт.

3

R56221

LATCH

- door handle

2шт.

4

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

8шт.

5

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

8шт.

6

L128467

ROD

- door, open latching

2шт.

7

L128879

CLIP,ELECTRICAL

CLIP - rod retainer

2шт.

8

248-2397

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

Rubber 5/16" ID x 3/4" Groove Dia, Str Cut

2шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

12шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

12

492-11038

LOCK WASHER,3/8"

12шт.

13

425-106

NUT,3/8"-16, Cl 5

12шт.

14

L127958

LARGE PLATE

PLATE - striker, door

2шт.

15

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

4шт.

18

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened, if used

4шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, if used

4шт.

20

112924A1

SUPPORT

BRACKET - catch

2шт.

21

L128574

COVER

PANEL - lower

2шт.

22

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 23

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

23

R29555

KEY

- for Master padlock only, if used

2шт.

24

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16 inch NC, if used

4шт.

25

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.
